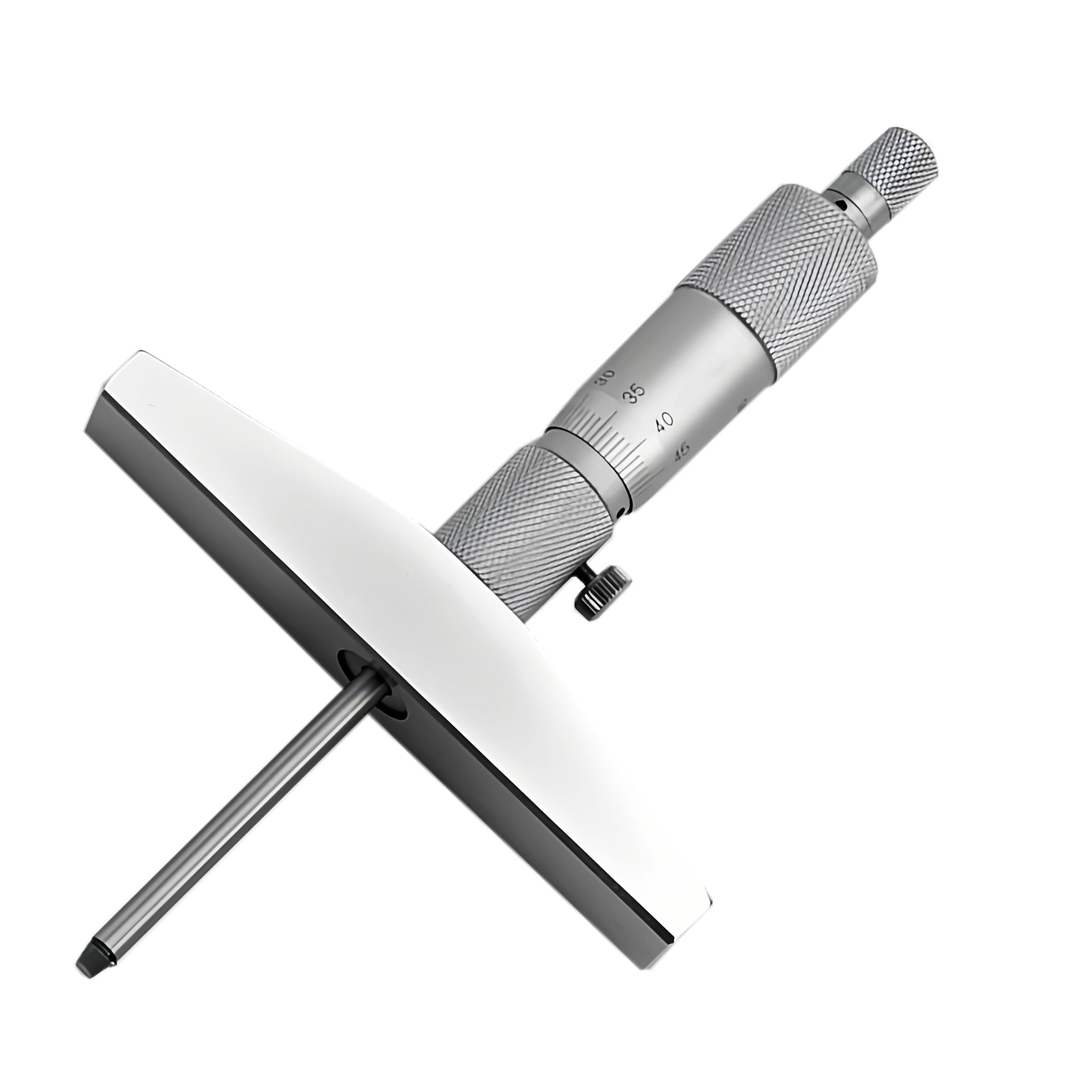

Depth Micrometer - Imperial, 0-6"x0.001"

Achieve ultra-precise depth measurements in slots, bores, steps, and keyways with this industrial-grade Imperial Depth Micrometer. Engineered for toolmakers, machinists, and quality control inspectors, this precision measuring tool combines high accuracy with a smooth ratchet thimble mechanism to deliver consistent, repeatable readings every time.

Key Features

• Ratchet Thimble / Stop: Features a built-in ratchet mechanism that ensures uniform measuring force, preventing over-tightening and eliminating operator variation for maximum measurement repeatability.

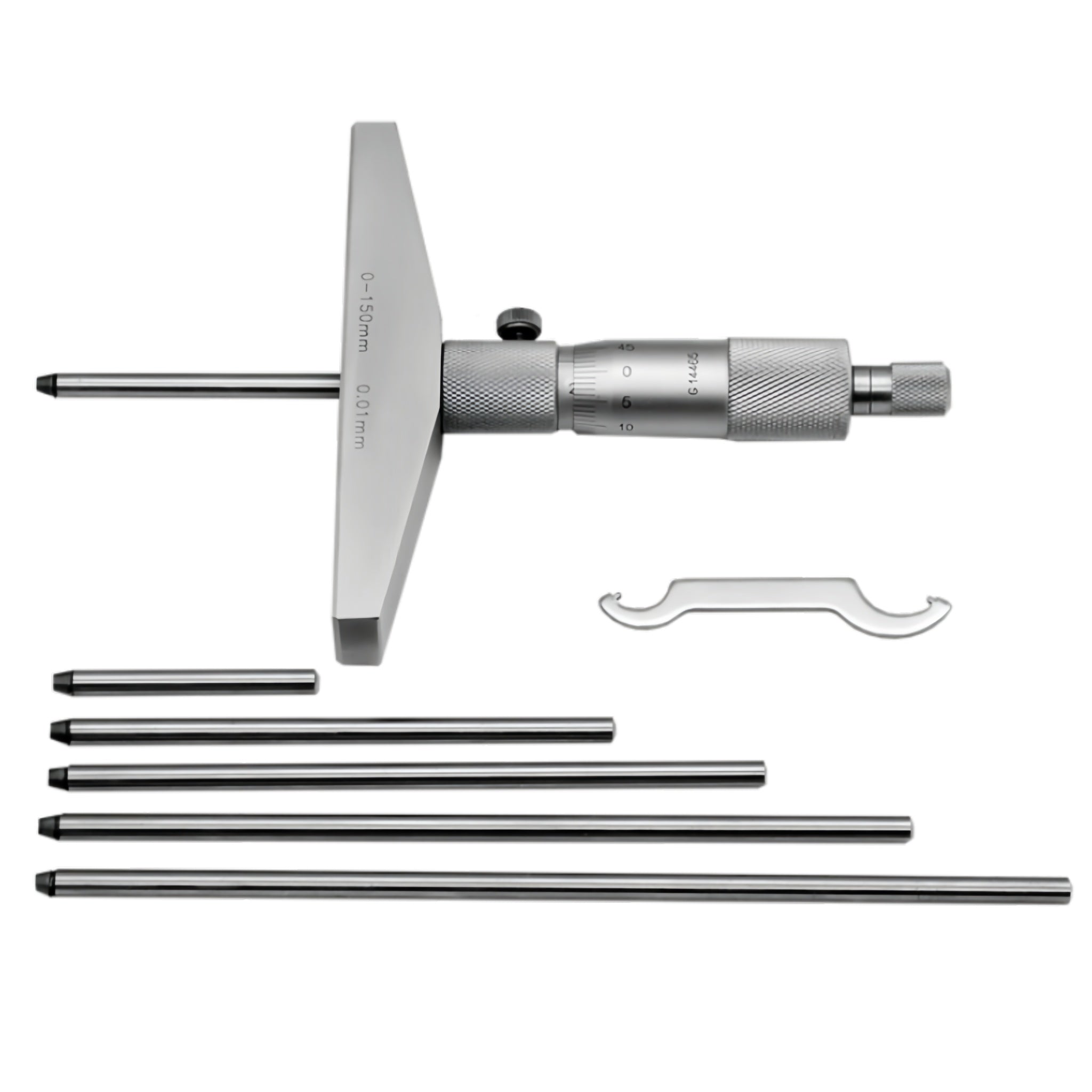

• Interchangeable Measuring Rods: Supplied with a set of 6x precision-ground interchangeable measuring rods to cover 0–6" in 1-inch increments.
• Hardened & Micro-Lapped Base: The ground and lapped reference base sits completely flat against surfaces to form a reliable datum plane for accurate gauging.
• High-Contrast Laser Markings: Clear, easy-to-read graduations down to 0.001" etched into a satin-chrome sleeve and thimble to reduce glare in brightly lit workshop environments.
• Spindle Lock: Equipped with a positive locking clamp to hold the spindle securely in place for easy reading retention or transferring measurements.

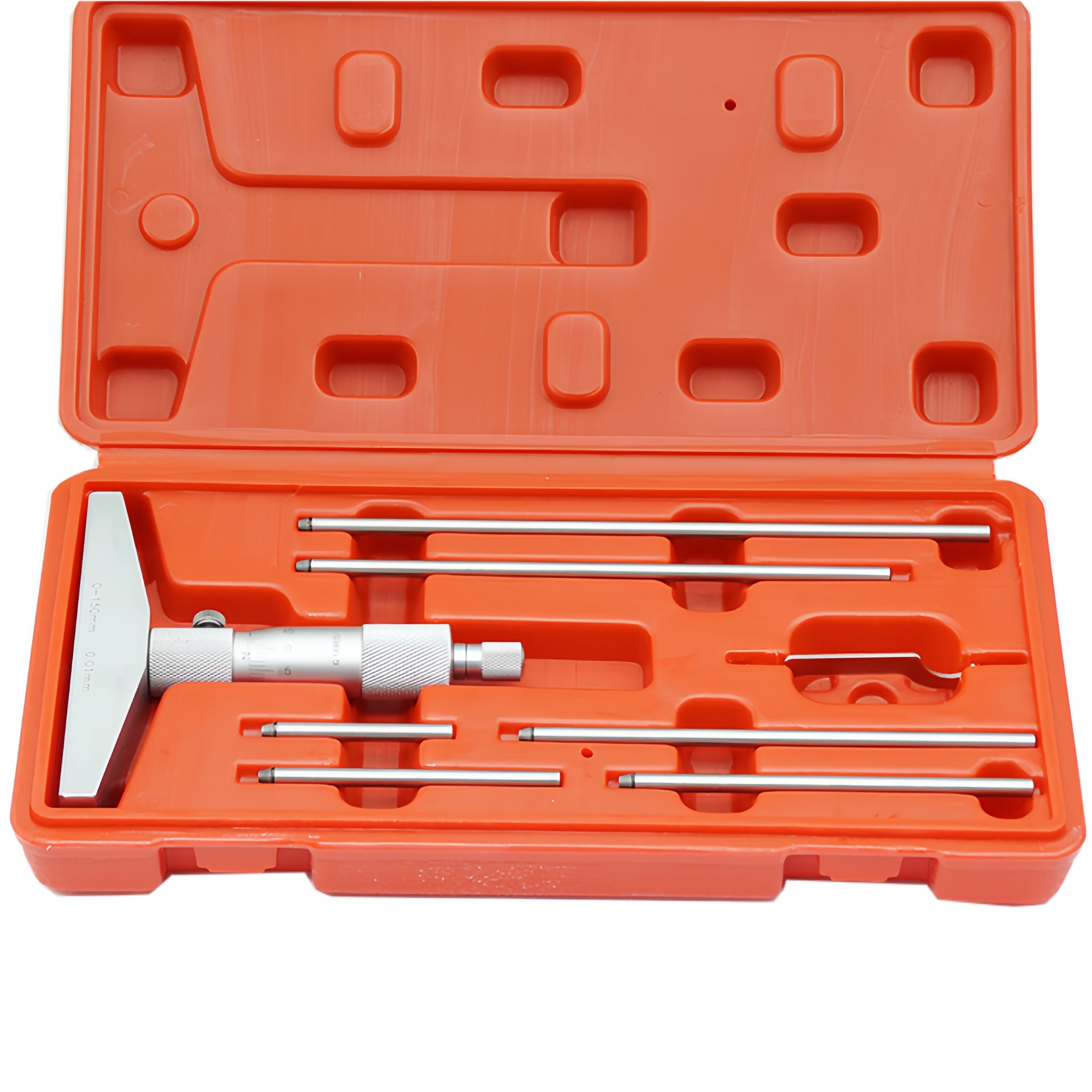

• Protective Storage Case: Supplied in a fitted wood or hard-shell case to keep the micrometer body, adjusting spanner, and interchangeable rods protected from dust and damage when not in use.

Specifications

• Measurement Unit: Imperial (Inches)
• Range: 0-6"
• Graduation: 0.001"
• Accuracy: 0.00012"
• Anvil Dia.: 1/5"
