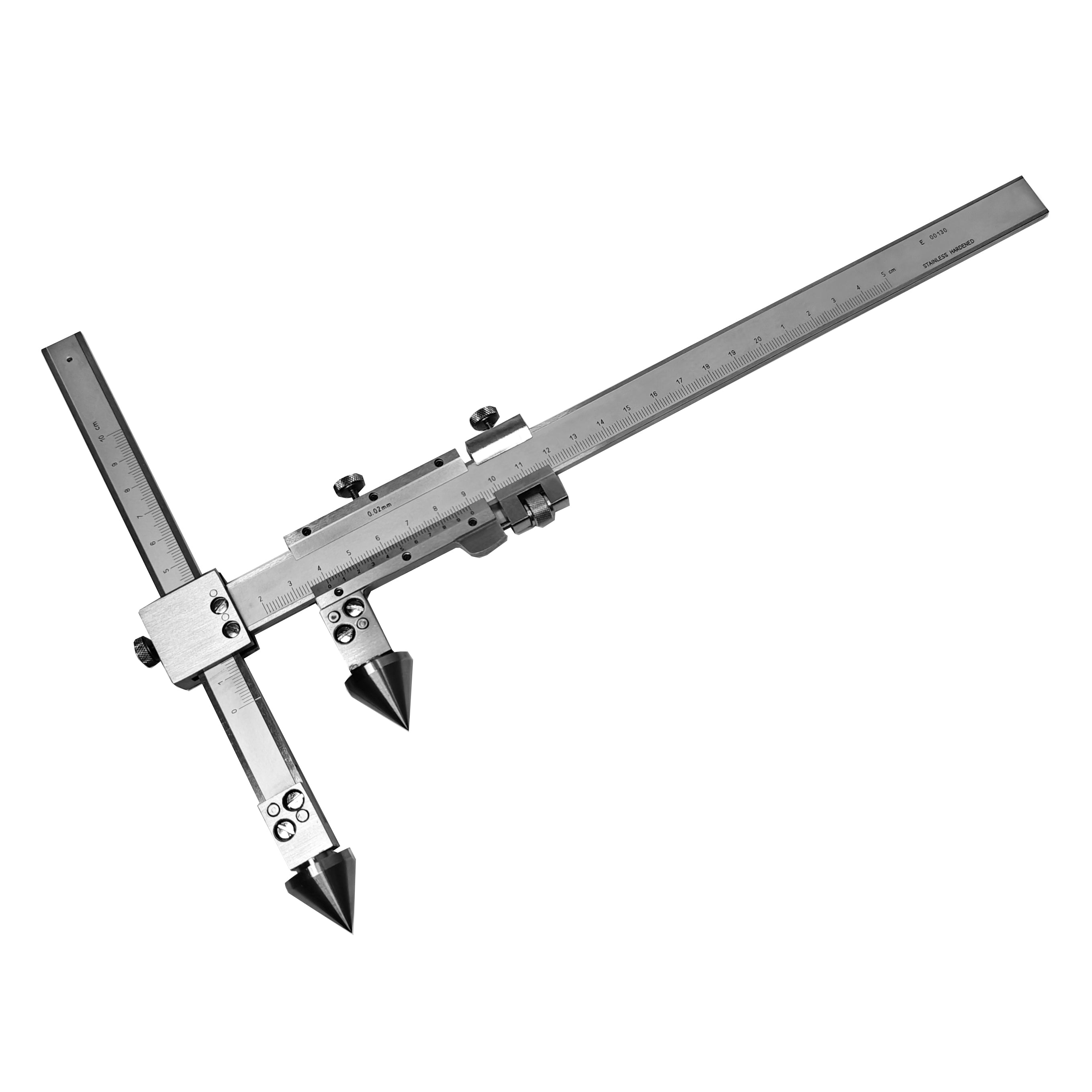

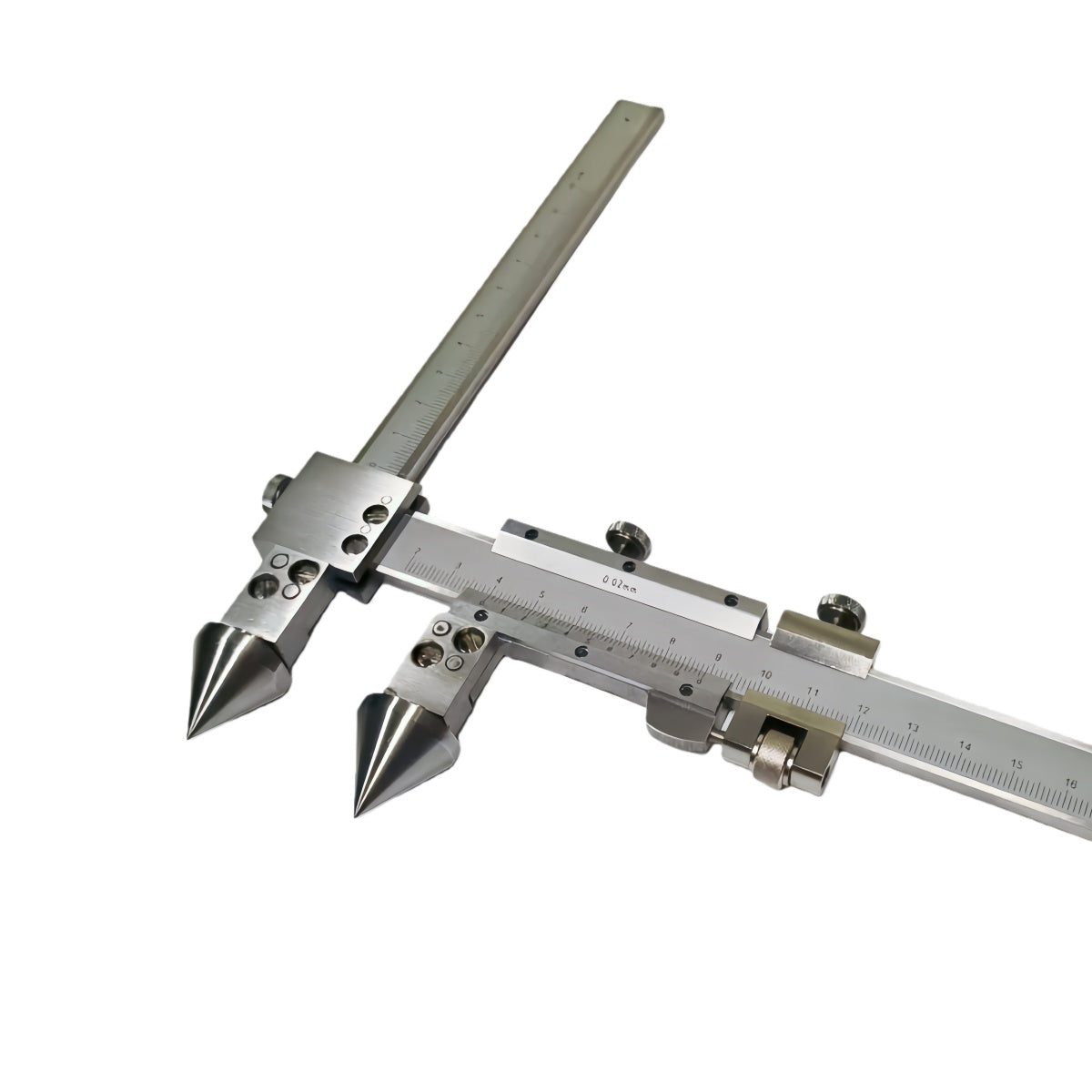

Center Distance Vernier Caliper with AWL Anvil 20-200mm

Master the measurement of center distances, even on the most challenging components with holes at different heights. This Center Distance Caliper features a unique sliding anvil design that can be manually adjusted to measure stepped holes directly, eliminating complex calculations and potential errors.

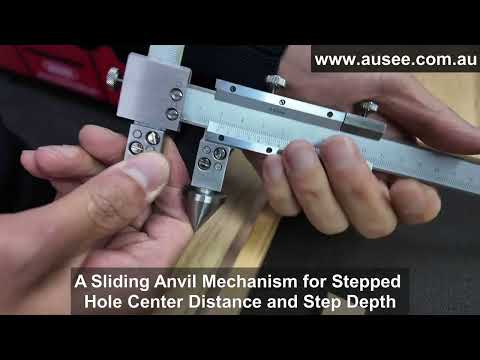

Check the video to watch how to measure center distance of holes.

Features

• Position lock
• Fine feed
• Step depth

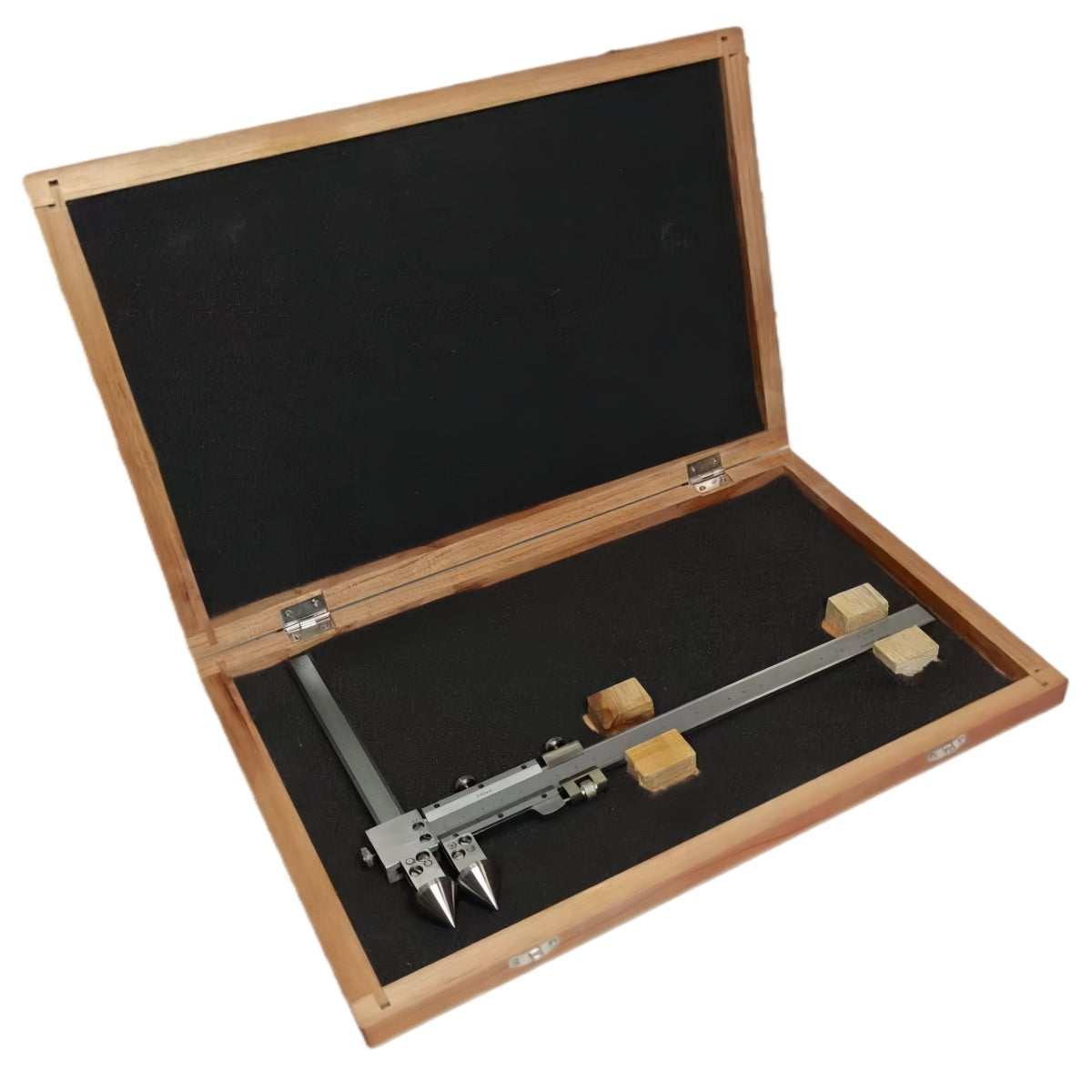

• Storage case included

Specifications:

Range: 20-200mm
Anvil Diameter: 20mm
Resolution: 0.01mm / 0.0005"
Accuracy: ±0.05mm
Anvil Type: Sharp, self-centering AWL points
