VERSATILE Milling Vice with Swivel Base

SKU: 050-012-02080
Price
$99.50
Size:
80mm with Swivel Base
In stock and ready for shipping

Product Informations:

Features:

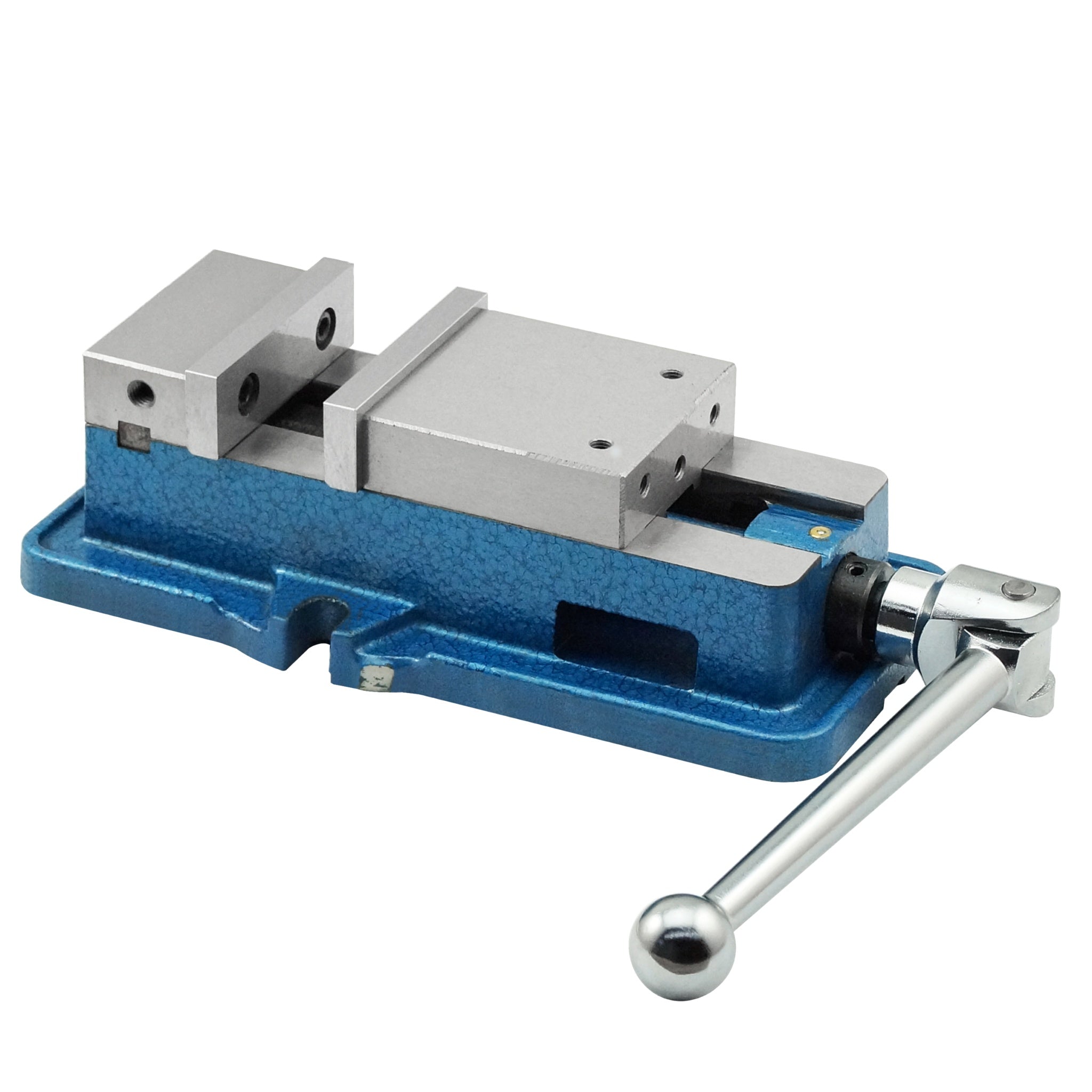

  • Made of grey cast iron. This vice may be used on it's own or with the removable swivel base supplied.

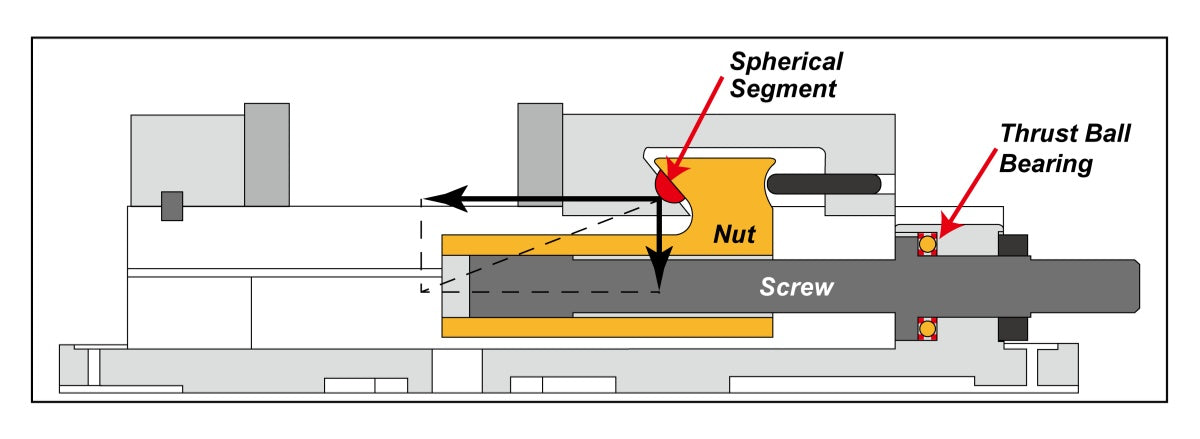

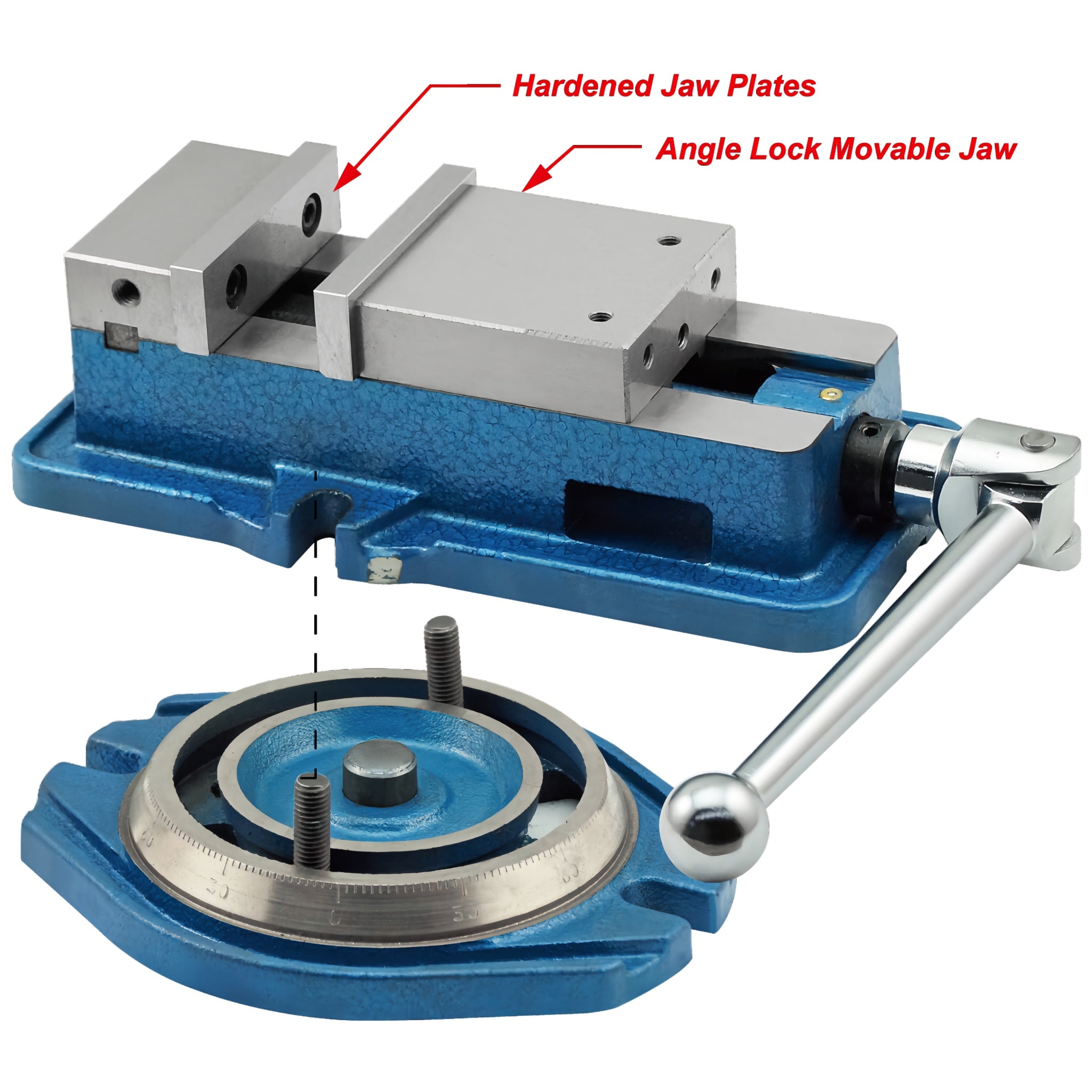

  • Angle lock clamping. When tightening the vice, the angled face on the nut transmits it's clamping force both forwards and downwards via a self-aligning spherical segment. The spherical segment locates in a corresponding recess inside the movable jaw preventing the jaw from lifting off the guideway. A small amount of jaw lift is possible depending on the type of work being held.
  • A friction reducing thrust ball bearing increases clamping pressure when closing the vice.
  • Both ends of the fixed jaw have an M8 threaded hole for mounting a work stop (not included).
  • For light work, the capacity of the vice can be increased by mounting the jaw plates on either end of the jaws or even on the top of the moveable jaw. Note: The fixed and moveable jaw holder height may vary. If necessary, pack/shim as required if using the vice in these configurations.

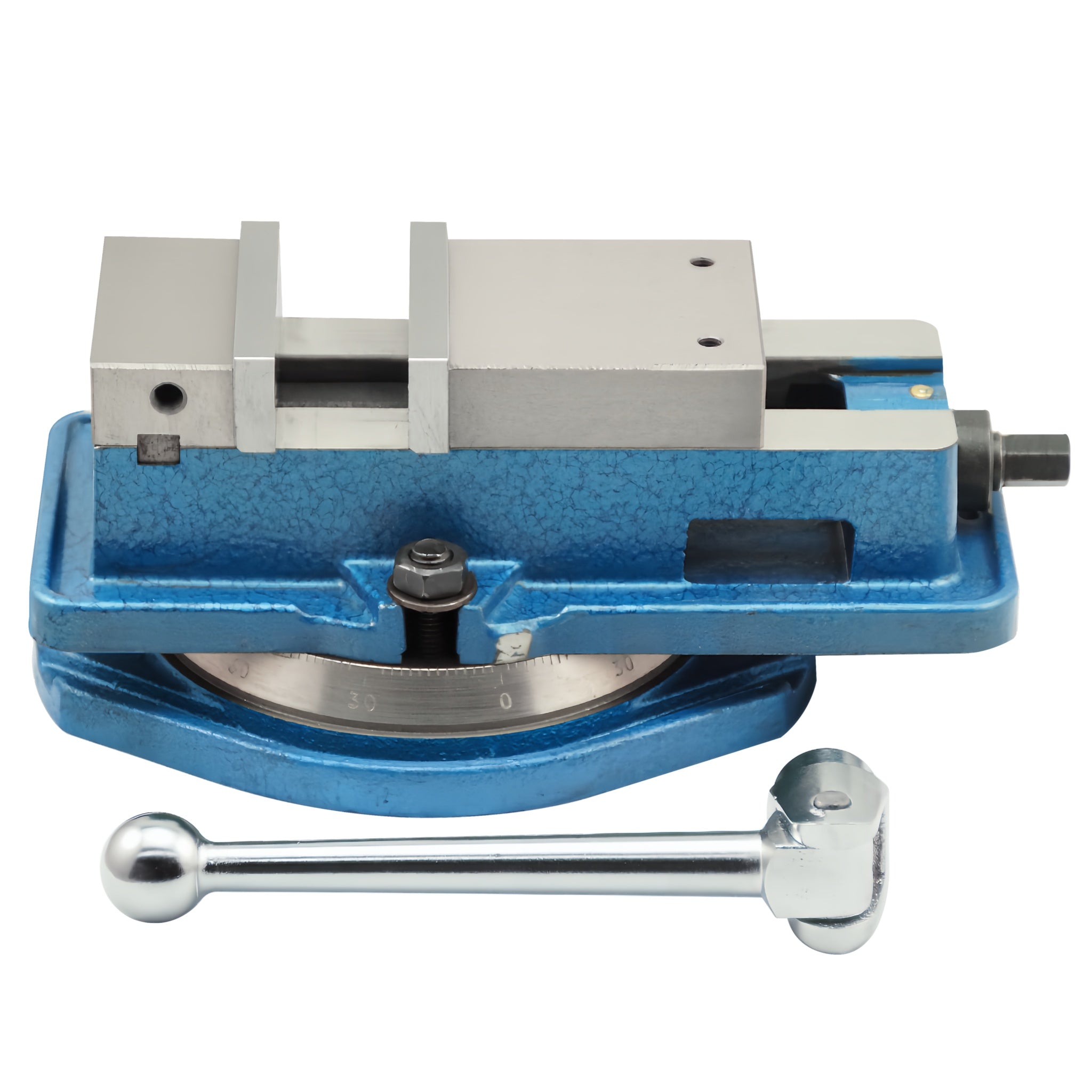

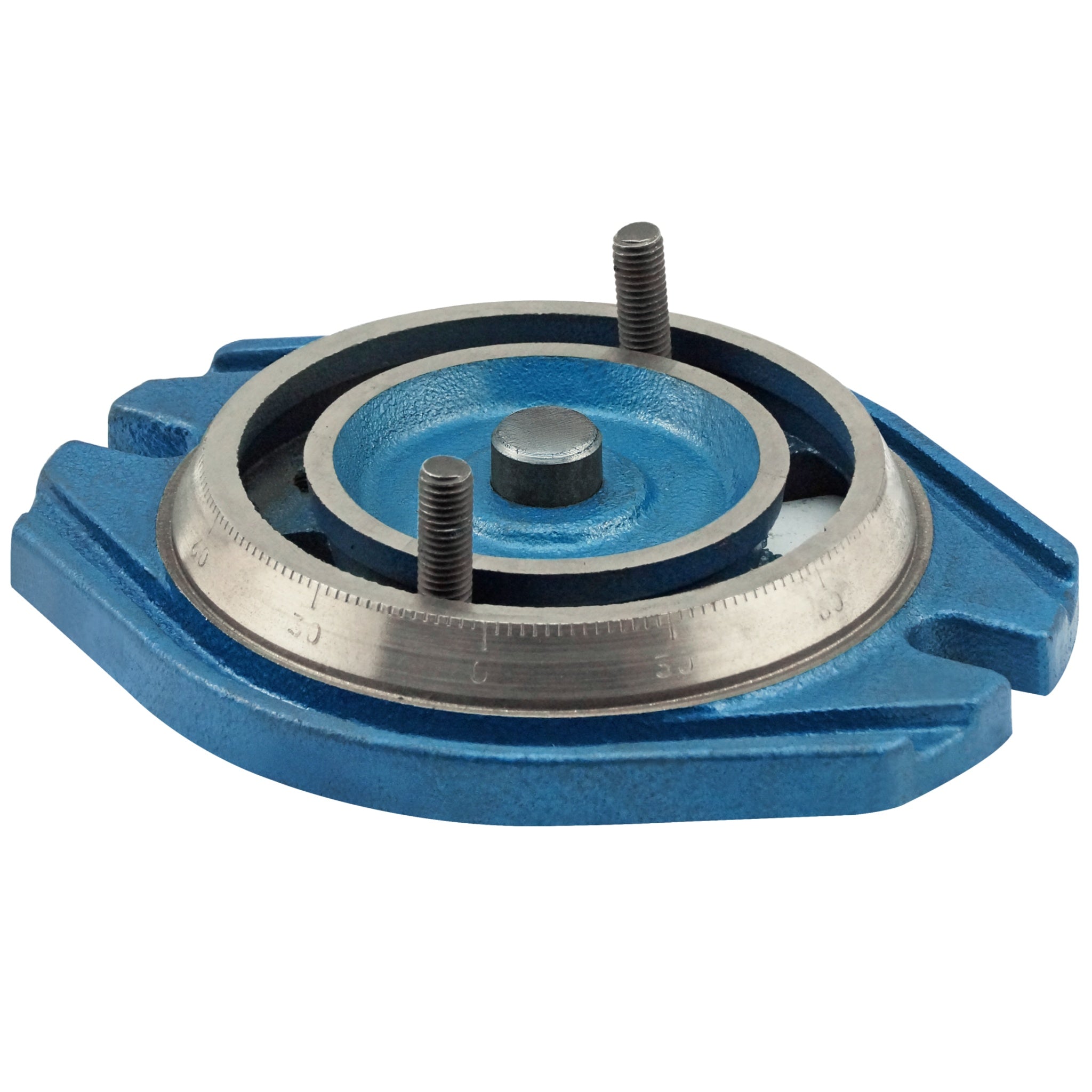

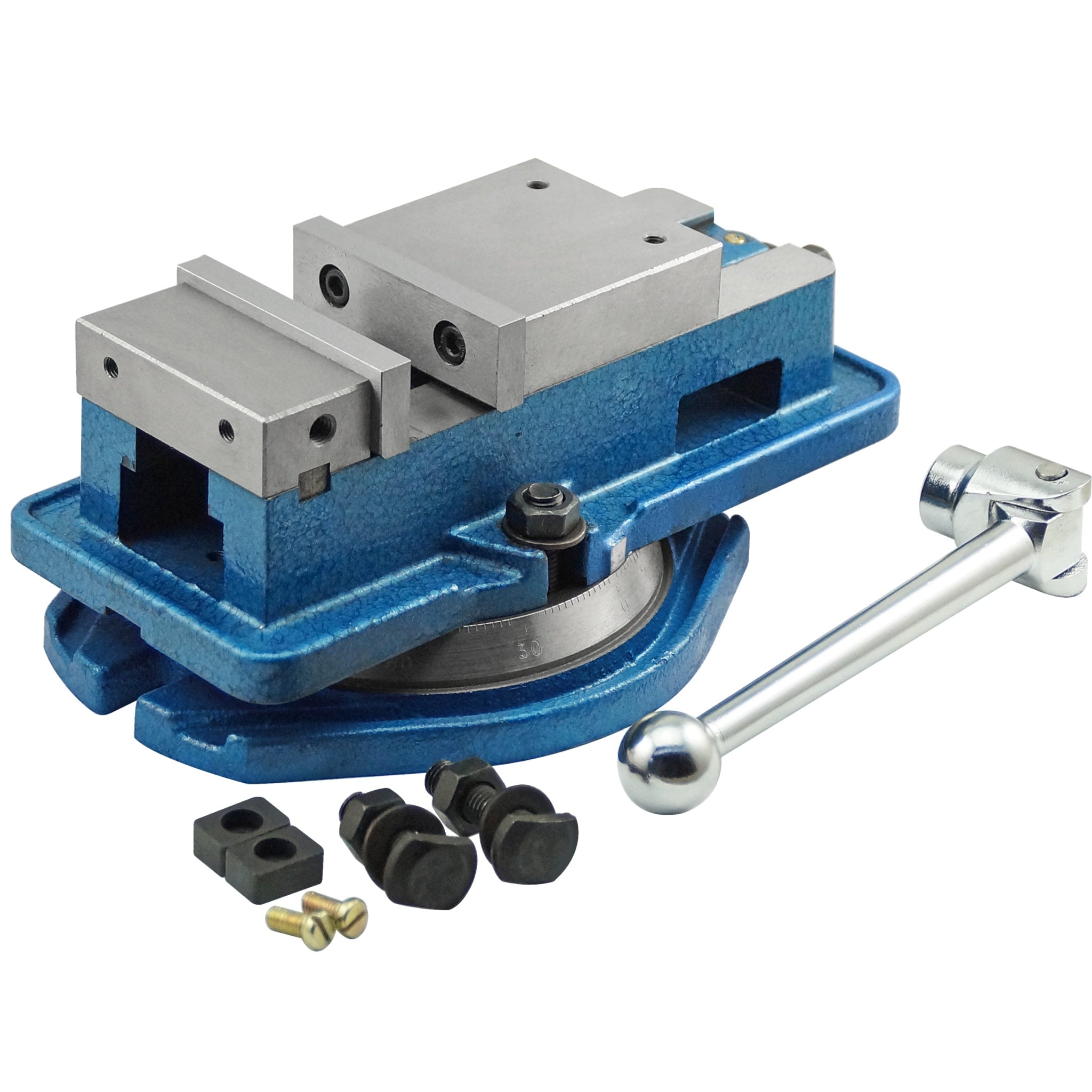

  • Supplied with swivel base marked in 1 degree increments, locking handle, 2x T-Bolts and 2x locating keys.

Note: For greater accuracy, an index mark should be scribed on the vice with the swivel base properly located on your milling table with location keys and the fixed jaw clocked square to the table.

Size
80mm
100mm
125mm
Product Code
 050-012-02080
 050-012-02100
 050-012-02125
Dimensions without Swivel Base
Jaw Width
80mm
100mm
125mm
Jaw Depth
25mm
32mm
40mm
Jaw Opening
see also: *alternative jaw position
76mm
122mm
150mm
Fixing Centres
100mm
130mm
160mm
Fixing Holes
10mm
10mm
12mm
Location Keyway Width
14mm
14mm
14mm
Overall Size
Length
252mm
330mm
380mm
Width
118mm
161mm
185mm
Height
73mm
92mm
105mm
Dimensions with Swivel Base
Fixing Centres
170mm
200mm
230mm
Fixing Bolt Size
M10
M12
M12
Location Keyway Width
14mm
14mm
14mm
Overall Size
Length
252mm
330mm
380mm
Width
164mm
205mm
235mm
Height
102mm
125mm
140mm
Weight
8kg
15kg
22kg

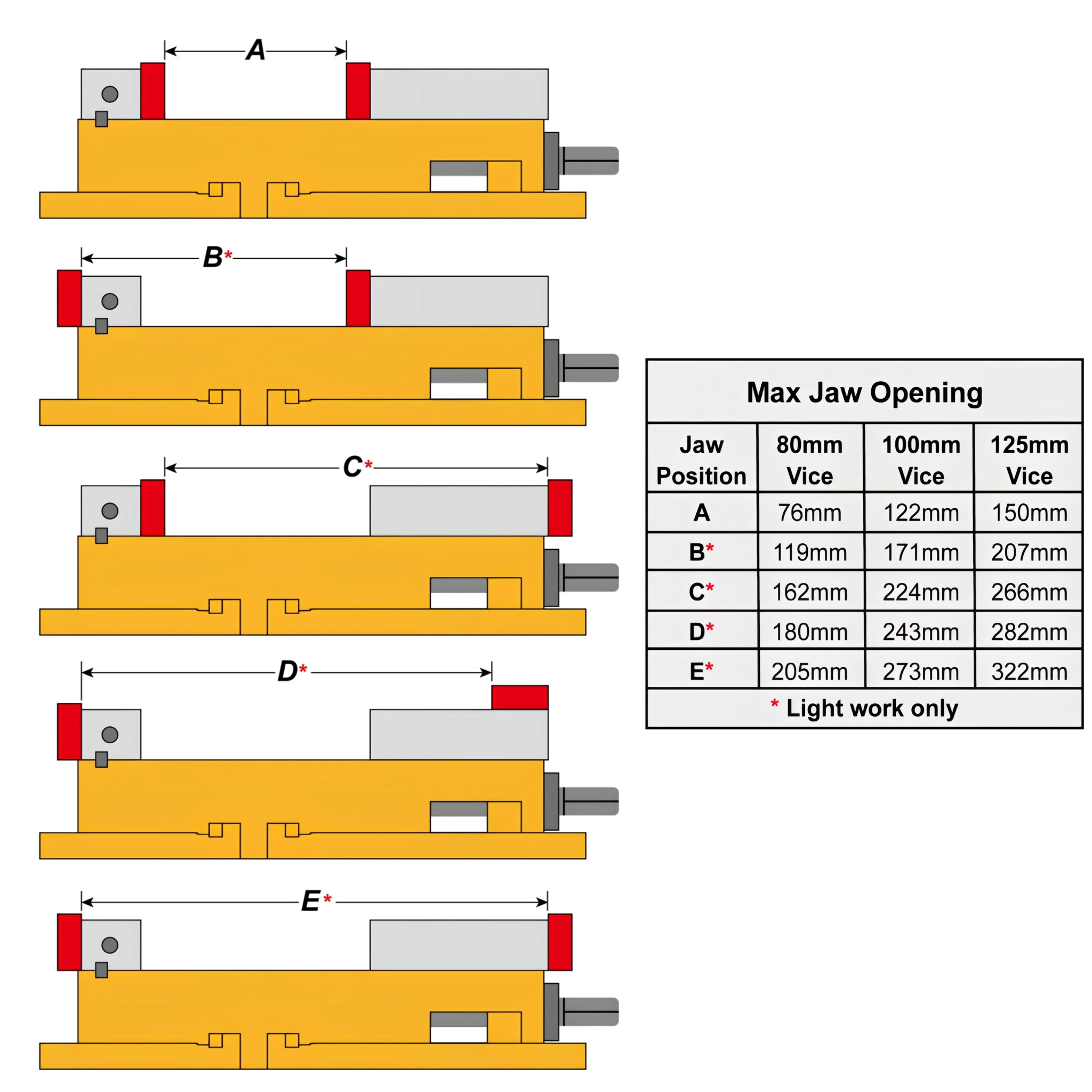

*alternative jaw position:
