Tool Holders for Model 200/222 Standard / V-Groove / Boring / Parting / Knurling Tool Holder

SKU: 081-031-40200
Price
$39.60
Type:
Parting Tool Holder (Angled)
In stock and ready for shipping

Product Informations:

Specifications for the Standard Tool Holder:

This tool holder is designed to hold square tools up to 16mm.
A: 44.5mm
B: 16.5mm
C: 12.5mm
D: 28.5mm

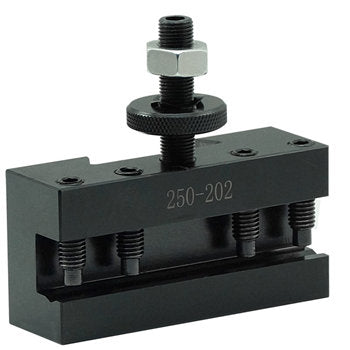

Specifications for the V-Groove Tool Holder:

This tool holder is designed to hold square tools up to 16mm and round tools diameter up to 13mm.
A: 44.5mm
B: 16.5mm
C: 12.5mm
D: 28.5mm

Specifications for the Boring Tool Holder:

This boring tool holder is designed to hold ø19mm round tools using the split sleeve (included) and ø25mm without the sleeve.
A: 44.5mm
B: 22mm
C: ø19mm with sleeve, ø25mm without sleeve

Specifications for the Parting Tool Holder (Angled):

This parting tool holder will hold parting blade up to 3/16"x5/8".
A: 1.3/4"
B: 5/8"
C: 3/16"

Suitable Blades:
HSS Parting-off Blade 3/32"x5/8" x5"

Specifications for the Knurling Tool Holder:

A: 44.5mm
B: 16.25mm
C: 12.5mm
D: 13mm
E: 19mm
F: 68.5mm
