A single square-shaped carbide insert with a yellow body and black center.

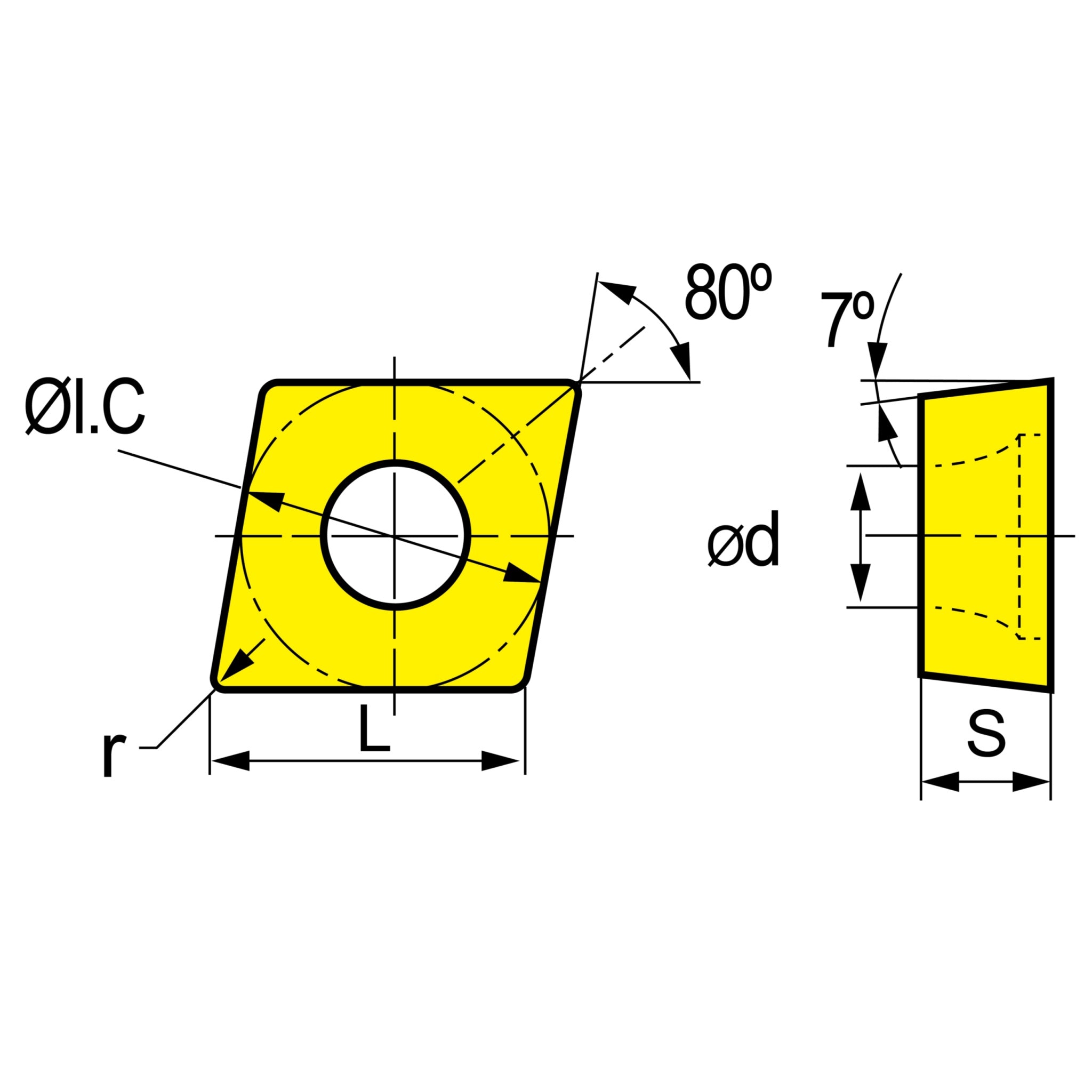

Technical dimension drawing of a yellow carbide turning tool insert or mounting plate with a circular hole, showing dimensions L, r, Ød, S, 7°, and 80° angle on a white background.
A single square-shaped carbide insert with a yellow body and black center.
Technical dimension drawing of a yellow carbide turning tool insert or mounting plate with a circular hole, showing dimensions L, r, Ød, S, 7°, and 80° angle on a white background.

TiN Carbide Insert - CCMT

SKU: 060-011-00200
Price
$9.90
Size:
CCMT09T304

Product variant with selected options does not exist!
In stock and ready for shipping

Product Informations:

Titanium Nitride (TiN) coated CCMT carbide inserts designed for general turning, semi-finishing, and boring applications on metal lathes.

Engineered for durability and smooth cutting action, these 80° rhombic carbide inserts feature a positive rake angle and single-sided cutting geometry. The bright gold TiN coating significantly reduces friction, increases thermal resistance, and protects against wear, making them ideal for machining mild steel, alloy steel, stainless steel, and cast iron.

Browse our full range of Lathe Turning Tools

Item No.

Insert

L

ØI.C

S

ød

r

060-011-00100

CCMT060204

6.4mm

6.35mm

2.38mm

2.8mm

0.4mm

060-011-00200

CCMT09T304

9.7mm

9.525mm

3.97mm

4.4mm

0.4mm
