A set of three black precision tool bars with yellow diamond-coated cutting tips, presented in an open silver aluminum case with black foam lining. A yellow hex key is stored in the right side of the case.
TiN Carbide Indexable Boring Bar 3pc Set

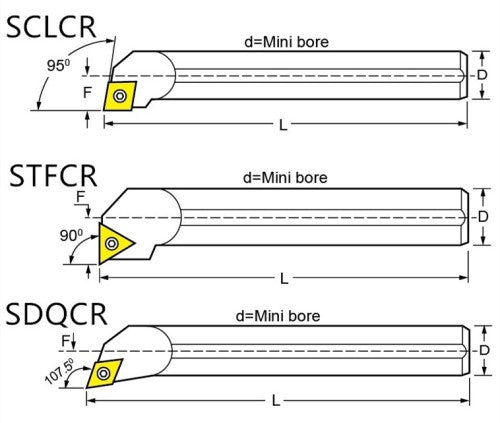

Technical line drawing showing three types of end mills: SCLCR, STFCR, and SDQCR, with labeled dimensions including L, D, F, and angle measurements.
A set of three black precision tool bars with yellow diamond-coated cutting tips, presented in an open silver aluminum case with black foam lining. A yellow hex key is stored in the right side of the case.
TiN Carbide Indexable Boring Bar 3pc Set
Technical line drawing showing three types of end mills: SCLCR, STFCR, and SDQCR, with labeled dimensions including L, D, F, and angle measurements.

TiN Carbide Indexable Boring Bar 3pc Set

SKU: 060-011-08210
Price
$79.00
Size:
8mm

Product variant with selected options does not exist!
In stock and ready for shipping

Product Informations:

Upgrade your metalworking precision with the 3-Piece TiN Coated Carbide Indexable Boring Bar Set. Designed for internal turning, facing, and profiling operations on metal lathes, this versatile set includes three distinct approach-angle boring bars equipped with indexable carbide inserts and matching Torx wrenches.

Each shank features precision-ground flat surfaces for effortless alignment on standard lathe tool post or round boring bar holders. Available in shank diameters from 8mm to 16mm, this set offers maximum rigidity and reduced vibration for clean, accurate bores.

Key Features:

  • Versatile 3pc Set: Includes SCLCR, STFCR, and SDQCR geometry boring bars to handle diverse internal machining operations.
  • Easy Alignment: Machined shank flats ensure easy and precise center-height setup on standard lathe tool posts and holders.
  • Ready to Use: Comes complete with installed indexable carbide inserts (CCMT, TCMT, DCMT), replacement screws, and Torx keys.

Set Size Cutter Included F L Min. Bore Insert Screw Key
8mm Set
(3 pcs)		 S08H-SCLCR-06 6mm 125mm 11mm CCMT060204 M2.5x6 T8
S08H-STFCR-09 6mm 100mm 11mm TCMT090204 M2.2x6 T6
S08H-SDQCR-07 6mm 100mm 11mm DCMT070204 M2.5x6 T8
10mm Set
(3 pcs)		 S10K-SCLCR-06 7mm 125mm 13mm CCMT060204 M2.5x6 T8
S10K-STFCR-11 7mm 125mm 13mm TCMT110204 M2.5x6 T8
S10K-SDQCR-07 7mm 125mm 13mm DCMT070204 M2.5x6 T8
12mm Set
(3 pcs)		 S12M-SCLCR-06 9mm 150mm 16mm CCMT060204 M2.5x6 T8
S12M-STFCR-11 9mm 150mm 16mm TCMT110204 M2.5x6 T8
S12K-SDQCR-07 9mm 150mm 16mm DCMT070204 M2.5x6 T8
16mm Set
(3 pcs)		 S16R-SCLCR-09 11mm 200mm 20mm CCMT09T304 M4x8 T15
S16R-STFCR-16 11mm 200mm 20mm TCMT16T304 M4x8 T15
S16R-SDQCR-11 11mm 200mm 20mm DCMT11T304 M4x8 T15
