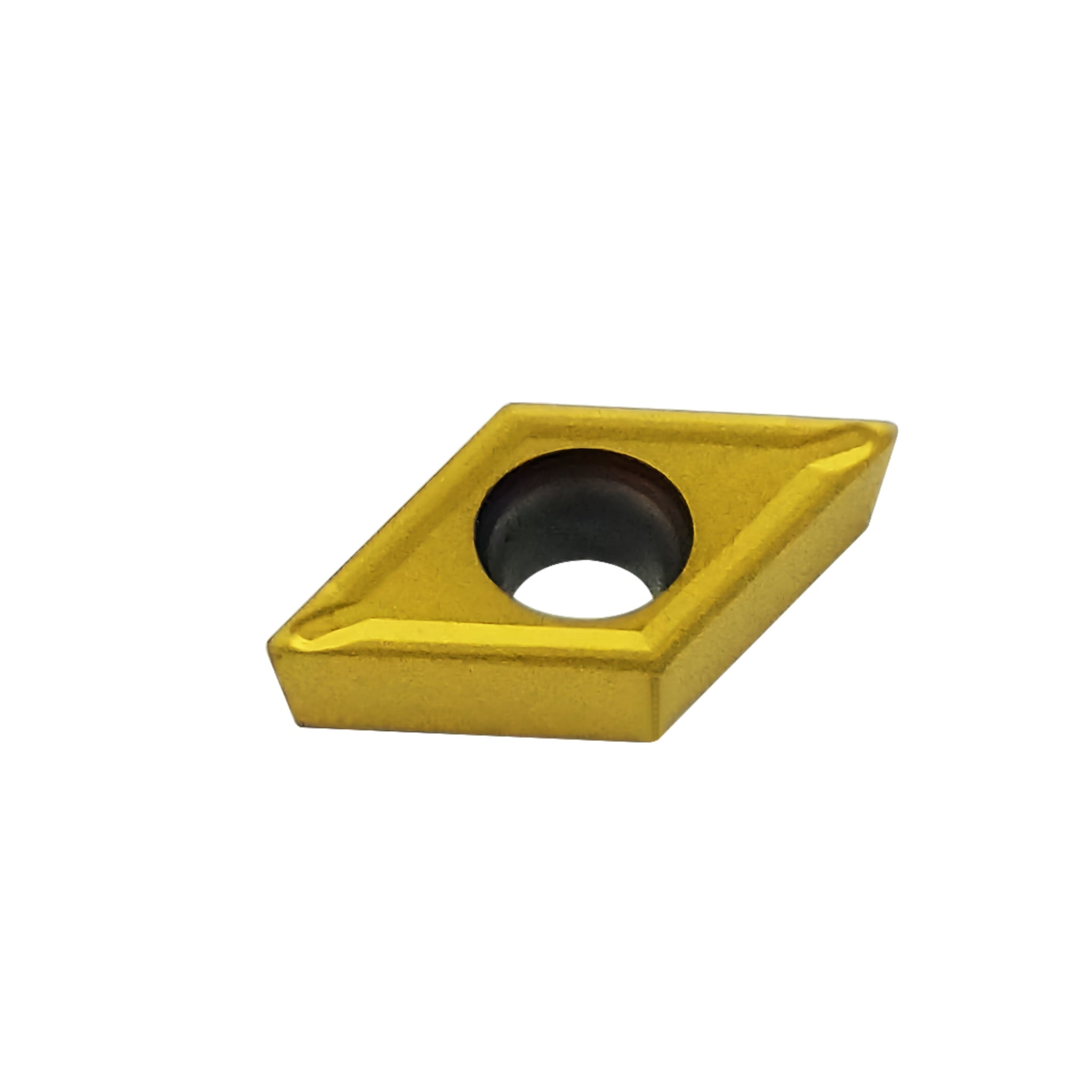

A single metallic gold carbide turning and boring insert with a central hole, shown on a plain white background.
Technical dimension drawing of a yellow flat rectangular carbide insert with rounded corners, a central hole, and labeled dimensions including L, d, S, r, Øl.C, and 55°.
A single metallic gold carbide turning and boring insert with a central hole, shown on a plain white background.
Technical dimension drawing of a yellow flat rectangular carbide insert with rounded corners, a central hole, and labeled dimensions including L, d, S, r, Øl.C, and 55°.

TiN Carbide DCMT Insert

SKU: 060-011-00402
Price
$9.25
Size:
DCMT11T304

Product variant with selected options does not exist!
In stock and ready for shipping

Product Informations:

Built with a 55° diamond shape, positive 7° clearance angle, and a hard Titanium Nitride coating, this indexable insert delivers clean cuts, superior chip control, and minimal friction. Perfect for turning, facing, and internal boring operations on steel, stainless steel, and cast iron.

Whether you're working with carbon steel, alloy steel, cast iron, or non-ferrous materials, these inserts deliver smooth surface finishes and reliable chip evacuation.

Browse our full range of Lathe Turning Tools

Item No.

Insert

L

ØI.C

S

ød

r

060-011-00401

DCMT070204

7.8mm

6.35mm

2.38mm

2.8mm

0.4mm

060-011-00402

DCMT11T304

11.6mm

9.525mm

3.97mm

4.4mm

0.4mm
