Tapping Chuck Set M3-M12

SKU: 020-050-10100
Price
$199.00
Arbor Size:
MT2
In stock and ready for shipping

Product Informations:

Tapping Chuck M3-M12

Modular floating tapping chuck set include 7 quick change collets with adjustable torque limiter.

Features:
  • Quick change tapping collets
  • Adjustable torque limiter
  • For right hand and left hand threads
  • Can be used on mill, drill, lathe and boring machine

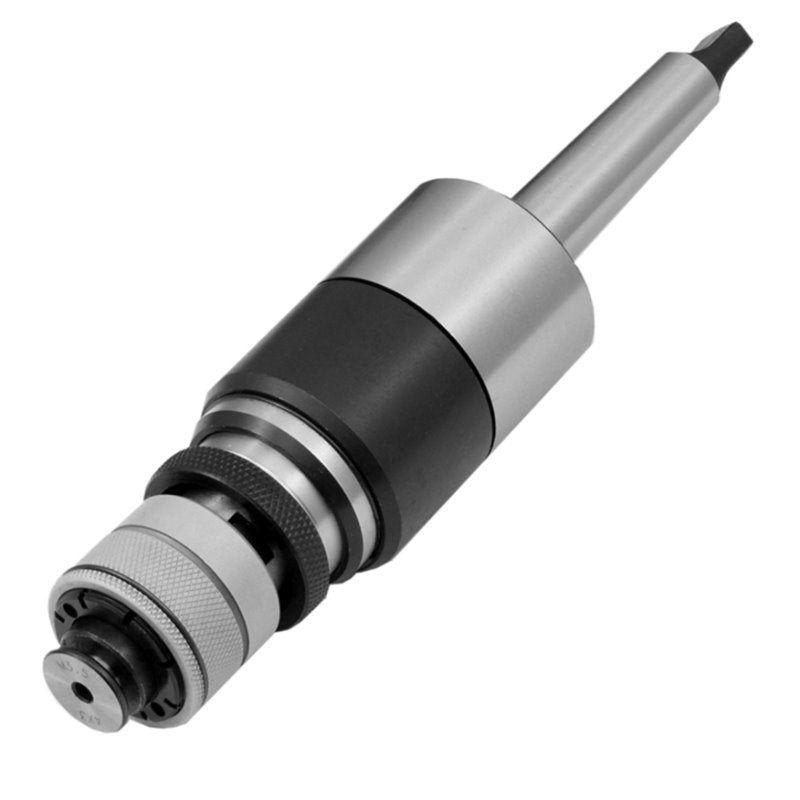

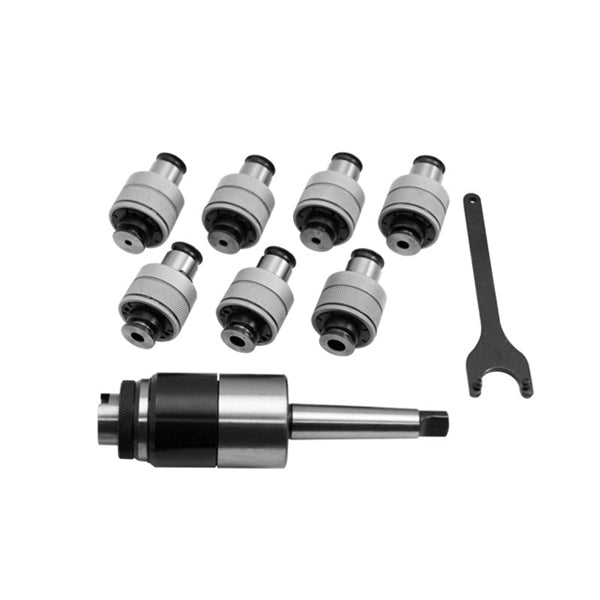

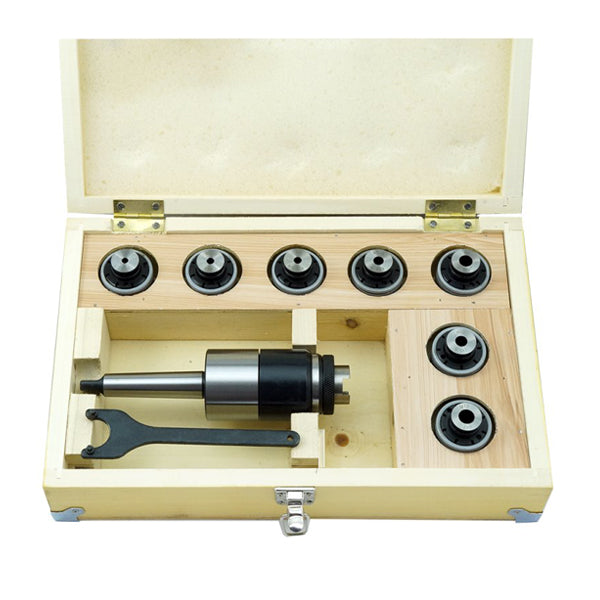

Specifications for Tapping Chuck M3-M12 with MT2 Arbor:
Arbor: MT2
Body Dia.: 46mm
Overall Length: 171.5mm
Chuck Body Length: 96.5mm
Tapping Range: M3 - M12
Tapping Collet Included: M3, M3.5, M4, M5-M6, M8, M10 and M12 (Total 7 Collets)

Specifications for Tapping Chuck M3-M12 with MT3 Arbor:

Arbor: MT3
Body Dia.: 46mm
Overall Length: 191mm
Chuck Body Length: 97mm
Tapping Range: M3 - M12
Tapping Collet Included: M3, M3.5, M4, M5-M6, M8, M10 and M12 (Total 7 Collets)

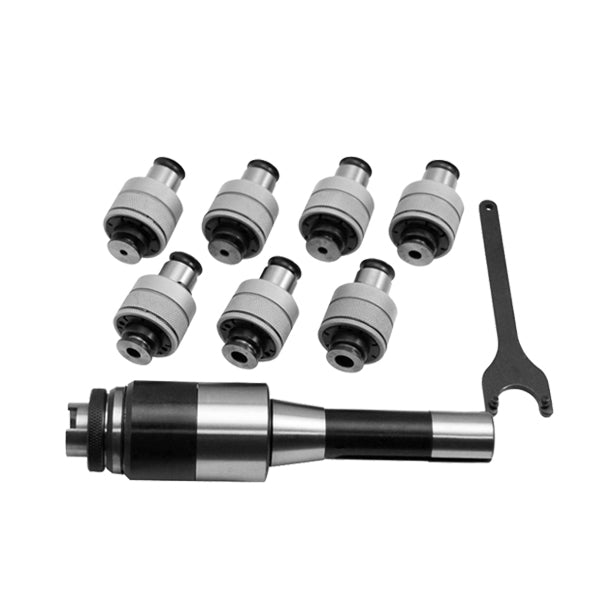

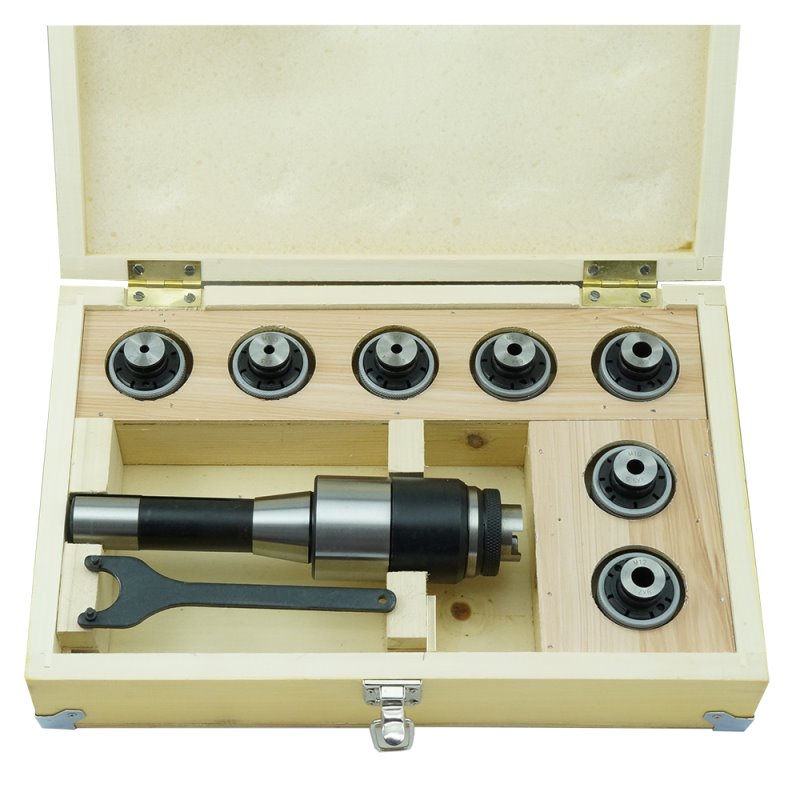

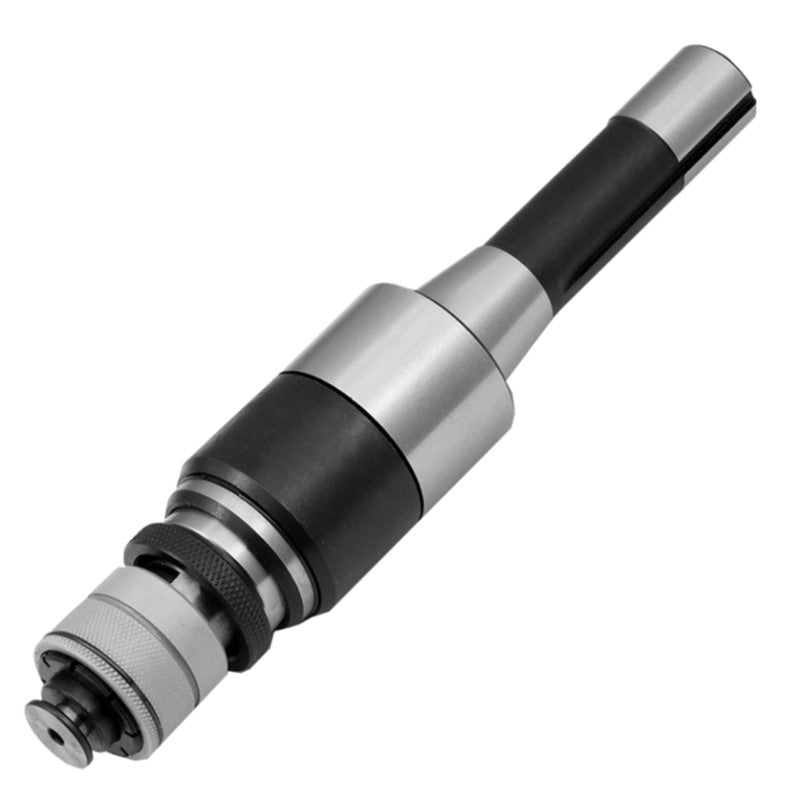

Specifications for Tapping Chuck M3-M12 with R8 Arbor:

Arbor: R8
Body Dia.: 46mm
Overall Length: 216mm
Chuck Body Length: 92mm
Tapping Range: M3 - M12
Tapping Collet Included: M3, M3.5, M4, M5-M6, M8, M10 and M12 (Total 7 Collets)
