SIEG SX4 HiTorque Milling & Drilling Machine with R8 Spindle

SKU: 080-020-85000
Price
$4,675.00
In stock and ready for shipping

Product Informations:


The SX4 mill is the most powerful and functional milling machine ever produced by SIEG. Equipped with a highly efficient and torquey brushless motor, spindle speed display, digital angle gauge, motorised Z-axis, and tapping mode, it brings the joy of ease to your machining process.

Features:

  • HiTorque Brushless motor with torque control
  • Heavy Duty Structure

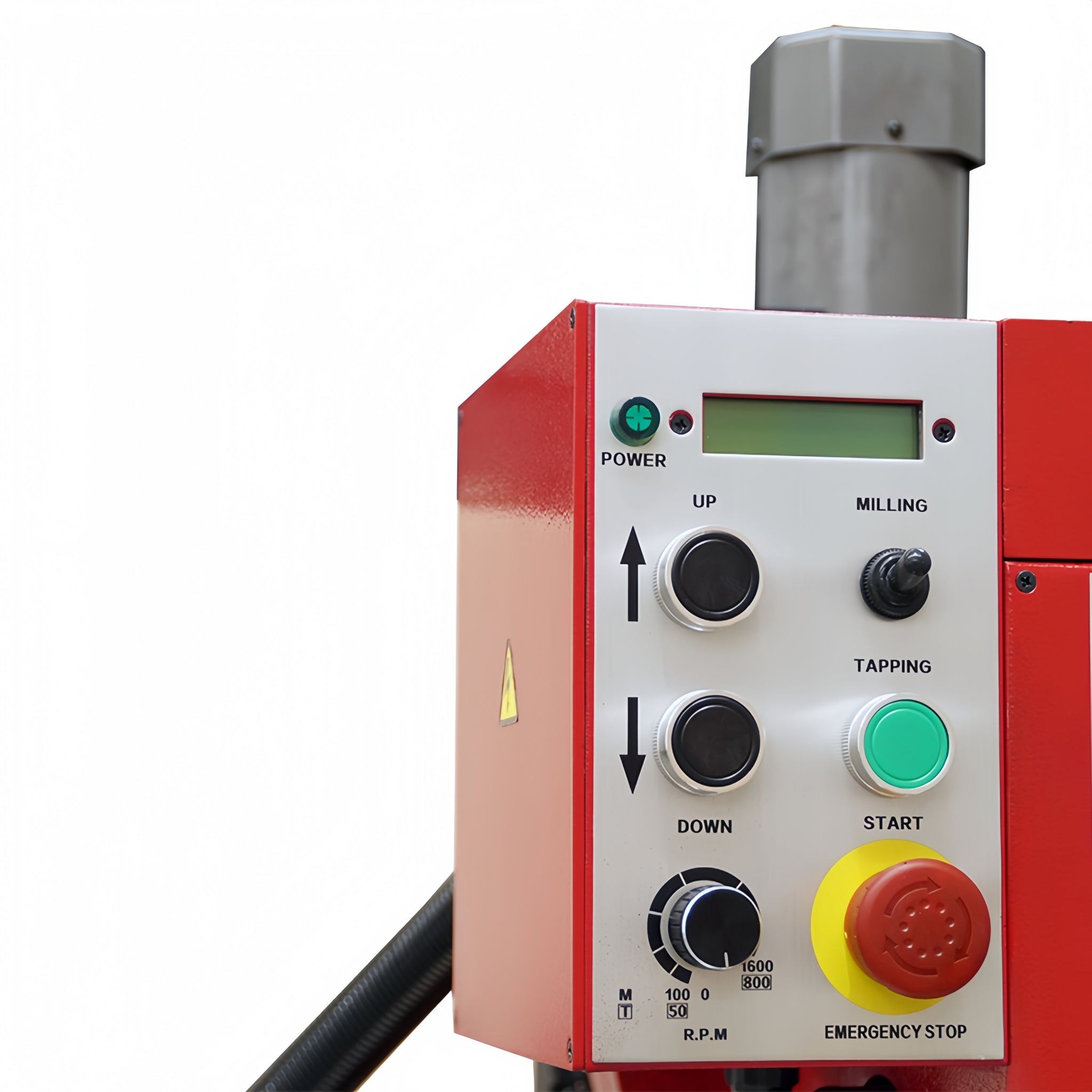

  • Tapping Mode

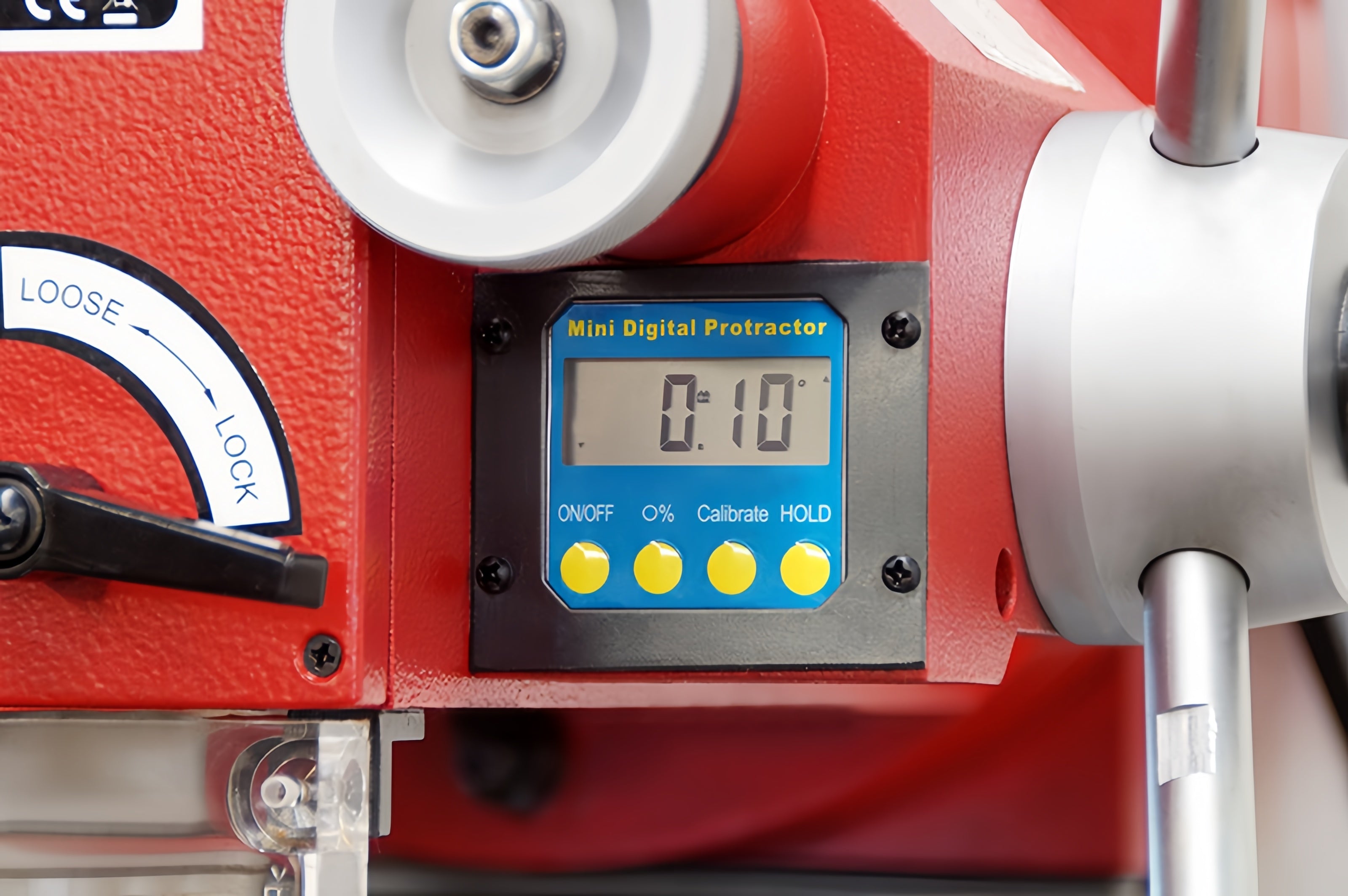

  • Digital Angle Gauge for Head Tilt

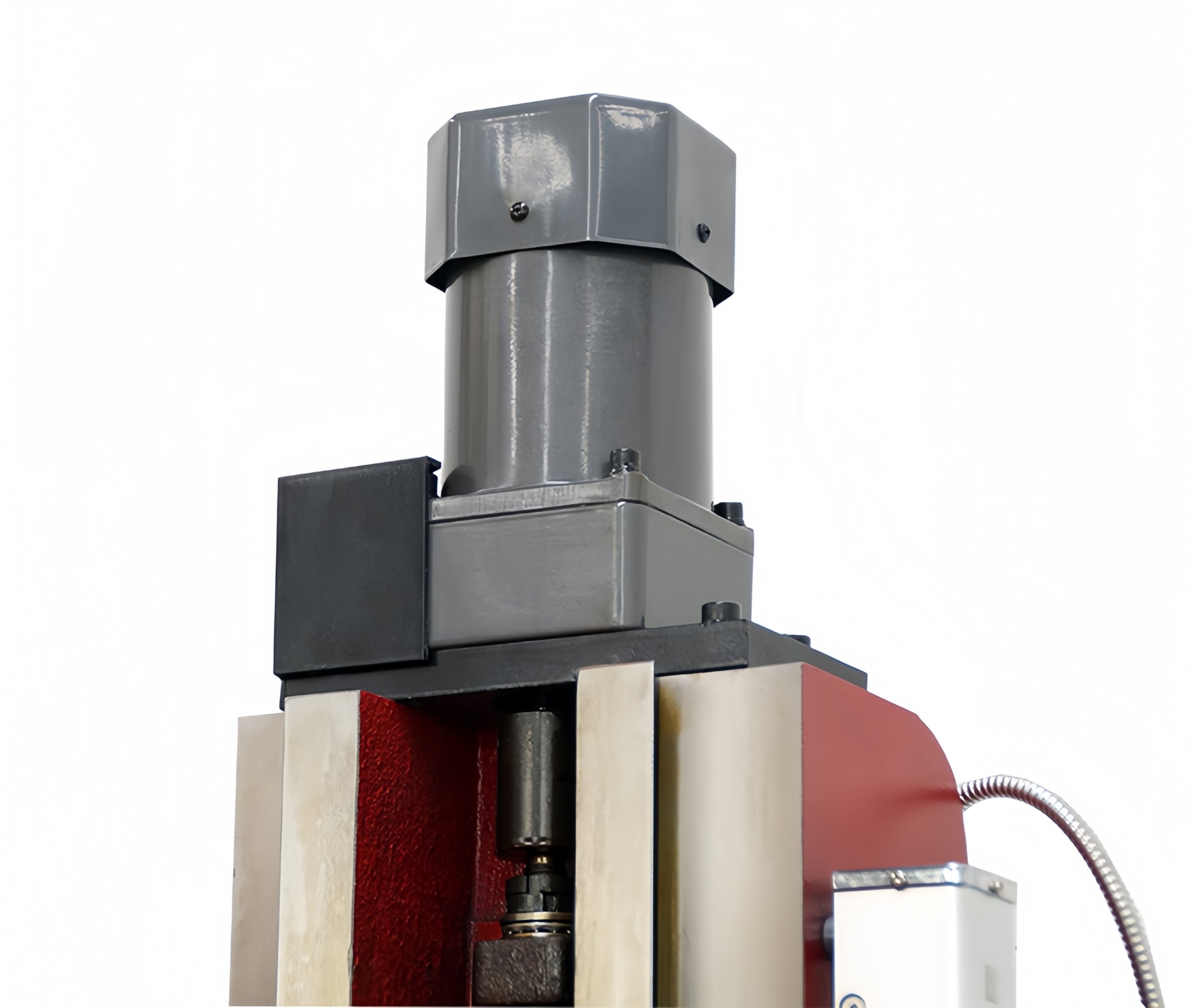

  • Powered Z-axis

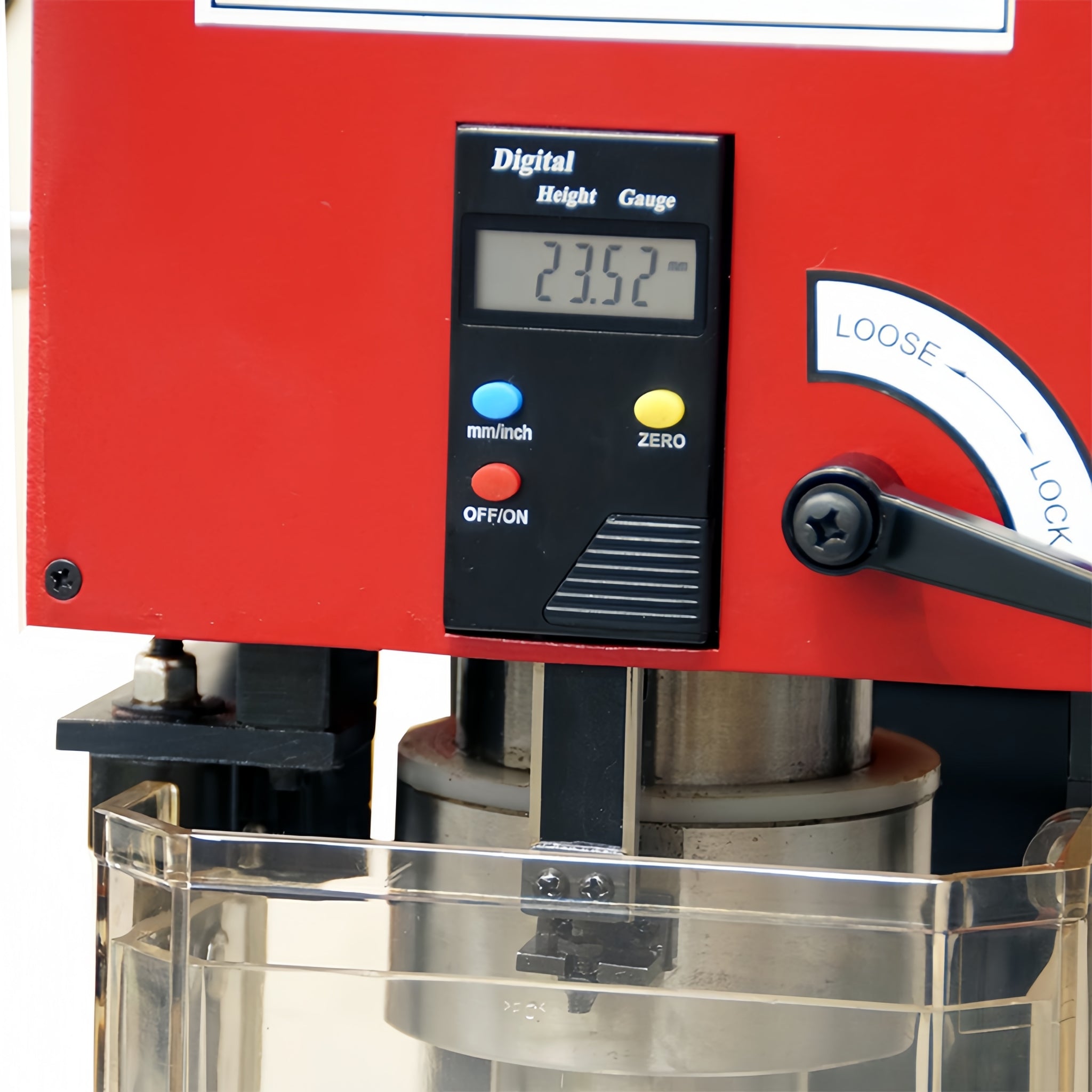

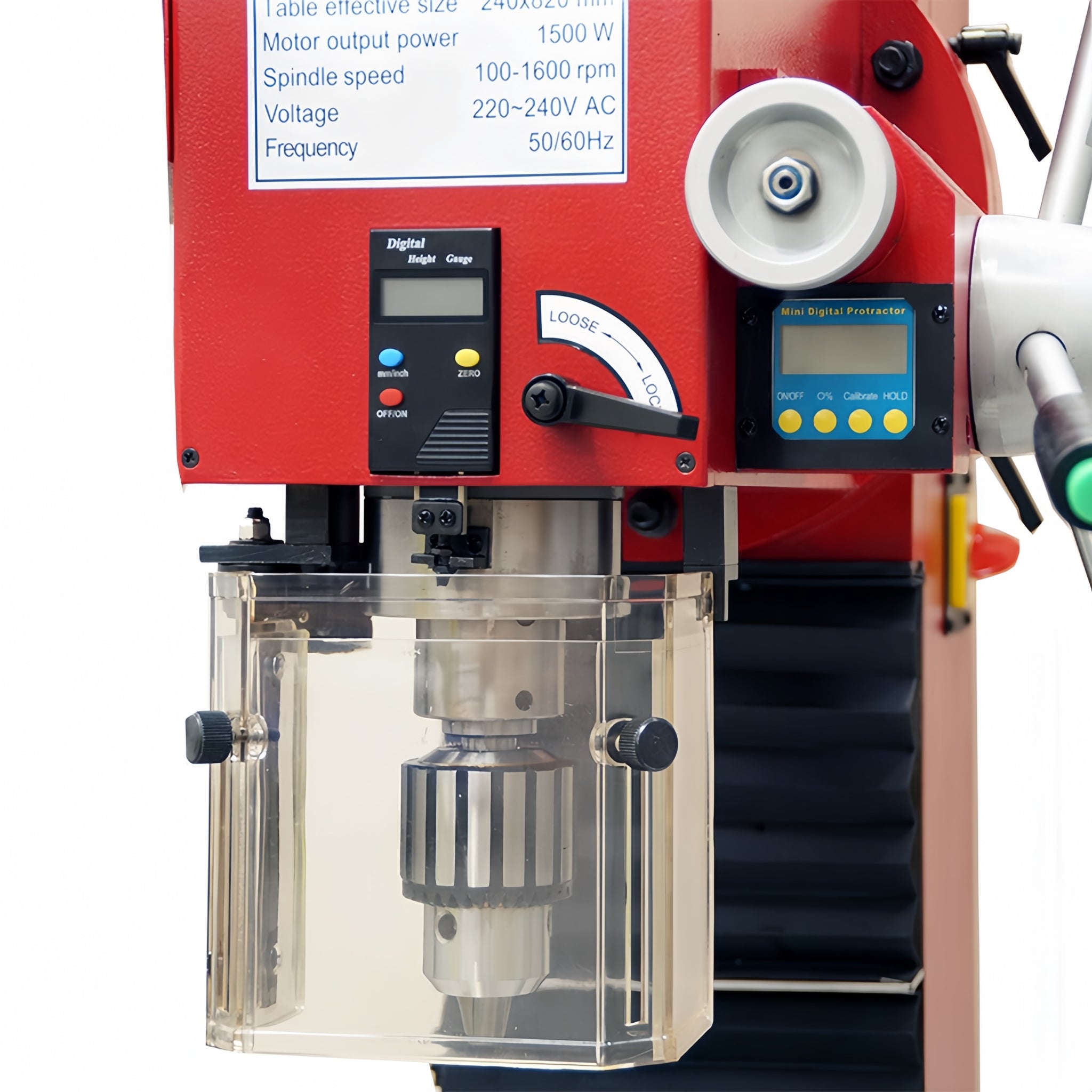

  • Drilling Depth Readout

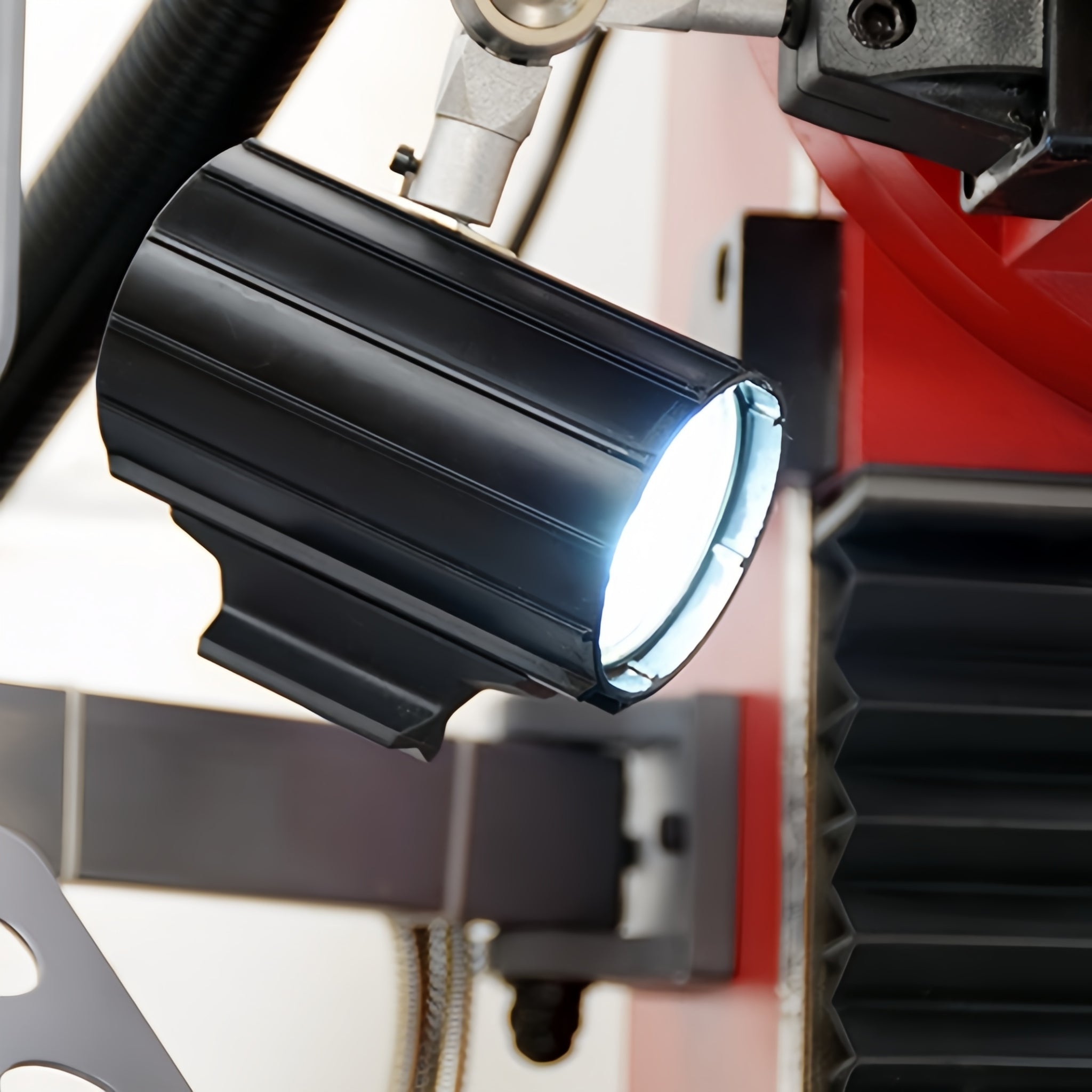

  • Worklight
  • Chuck Guard with Safety Switch

Specifications:

Drilling capacity: 30mm
End mill capacity: 40mm
Face mill capacity: 55mm
Tapping capacity: 16mm
Spindle stroke: 80mm
Table cross travel (Y-Axis): 245mm
Table longitudinal travel (X-Axis): 450mm
Z-Axis travel: 335mm
Spindle Taper:  R8
Throat: 245mm
Max. Spindle to table: 430mm
Table size: 820x240mm
T-Slot size: 14mm ( M12 clamping kits required )
Head tilt: 45°
Power Rating: 1810W
Output: 1500W
Spindle Speed: 100-1600rpm ( with torque control )
Overall dimension: 1060x840x1160mm
Weight (Net/Gross): 310 / 340kg

Standard Accessories:
Drill chuck and arbor
Drawbar
Wrench set
