SIEG SC4 / 210x510mm Hi-Torque Lathe

SKU: 080-010-48000
Price
$2,530.00
Option:
SC4 Machine Only
In stock and ready for shipping

Product Informations:

Features:

Hi-Torque Brushless Motor with Torque Control

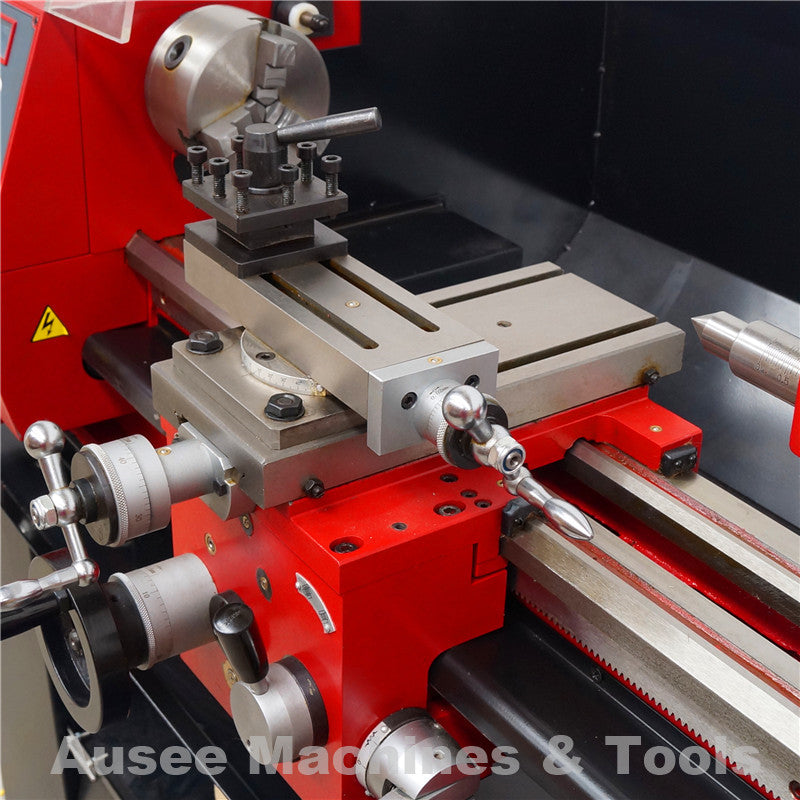

Cross & Longitudinal Power Feed
Extra Long 510mm Bed
Belt Drive for Quieter Operation
Cam- Lock Tailstock
Backlit Spindle Speed Readout
Advanced Touch Panel Control
T-Slots on Compound and Cross Slide
Cuts Metric & Imperial Threads
Metal Gears
Variable Speed
Switched Chuck Guard
Leadscrew Guard
Emergency Stop Button
High Quality Cast Iron Bed
Overload Protection

Specifications:

Swing Over Bed

210mm

Distance Between Centres

510mm

Spindle Bore

20mm

Spindle Taper

MT3

Tailstock Taper

MT2

Cross Slide Travel

100mm

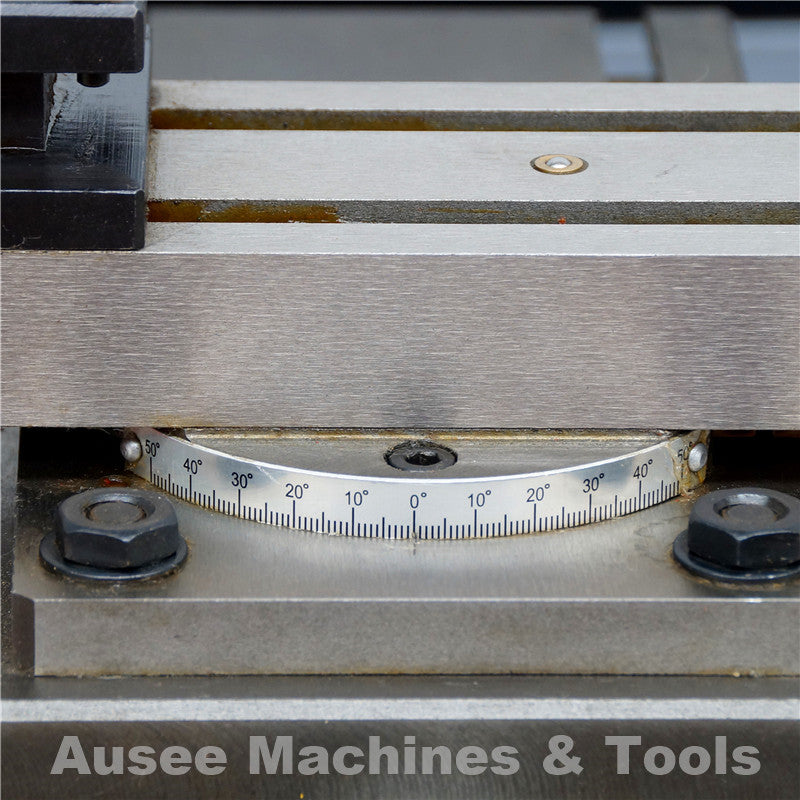

Compound Slide Travel

70mm

Power Rating

1250W

Output

1000W DC Brushless Motor

Range of Threads - Metric

0.25-3.0mm (17 Thread Pitches)

 - Imperial

8-24TPI ( 10 Thread Pitches )

Spindle Speed

100-2000rpm

Overall Dimension

1010x630x400mm

Weight ( Net / Gross )

98/125kg



Standard Accessories:
100mm 3-Jaw Self-Centering Chuck
MT2 Dead Centre
MT3 Spindle Centre
Change Gear Set
Wrench Set


Starter Kit Includes (Optional):

  • TiN Carbide Indexable Turning Tools 7pcs Set
  • Quick Change Tool Post with 3 Tool Holders ( Tool post with 3xRegular holders)
  • 8mm Parting Off Tool
  • Keyless Drill Chuck, JT3, 1-16mm
  • MT2/JT3 Drill Chuck Arbor
  • HSS Drill Bit 1-6mm 51pcs Set, 0.1mm inc. Split Head from 3mm up
  • HSS Drill Bit 6-10mm 41pcs Set, 0.1mm Inc. Split Head
  • HSS Centre Drill Set 4pcs Set 1.6-4mm
  • MT2 Revolving Centre
