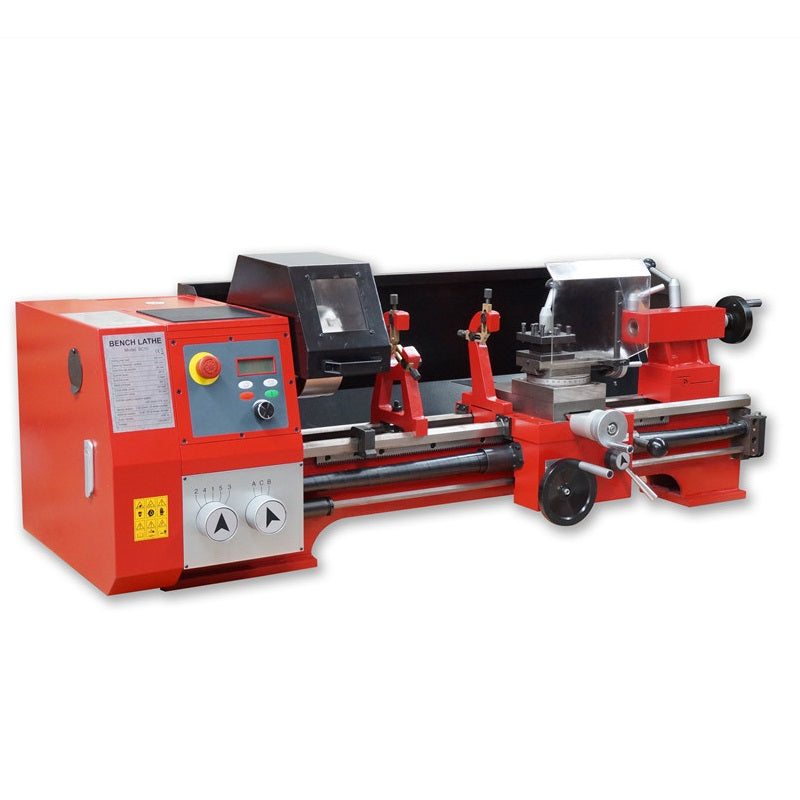

SIEG SC10/305x700mm Hi-Torque Gear Head Lathe

SKU: 080-010-30780
Price
$4,196.50
Option:
SC10 Machine
In stock and ready for shipping

Product Informations:

Features:
Brushless Motor with Torque Control

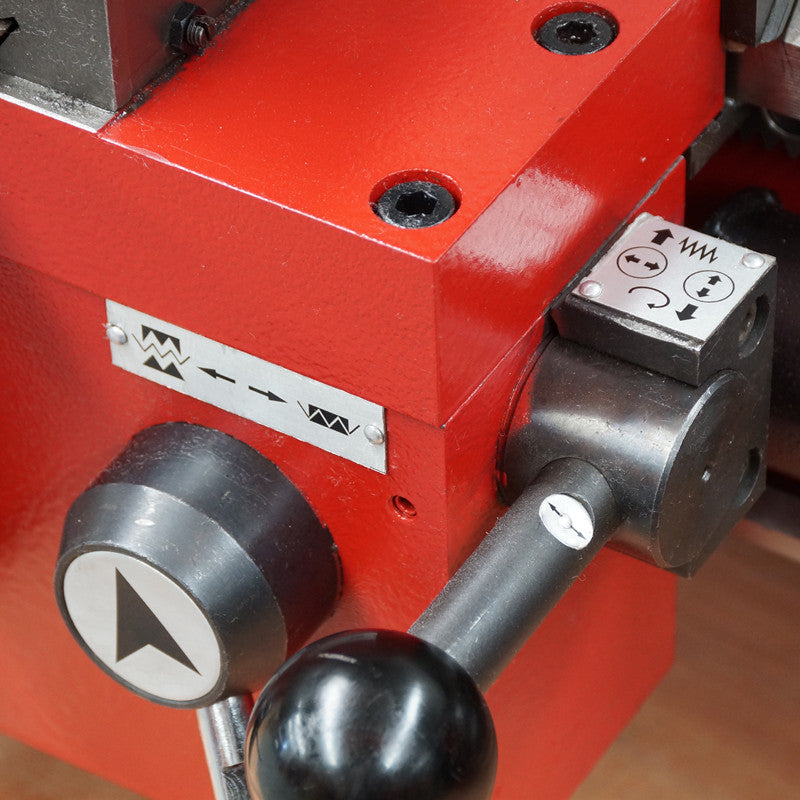

Cross & Longitudinal Power Feed

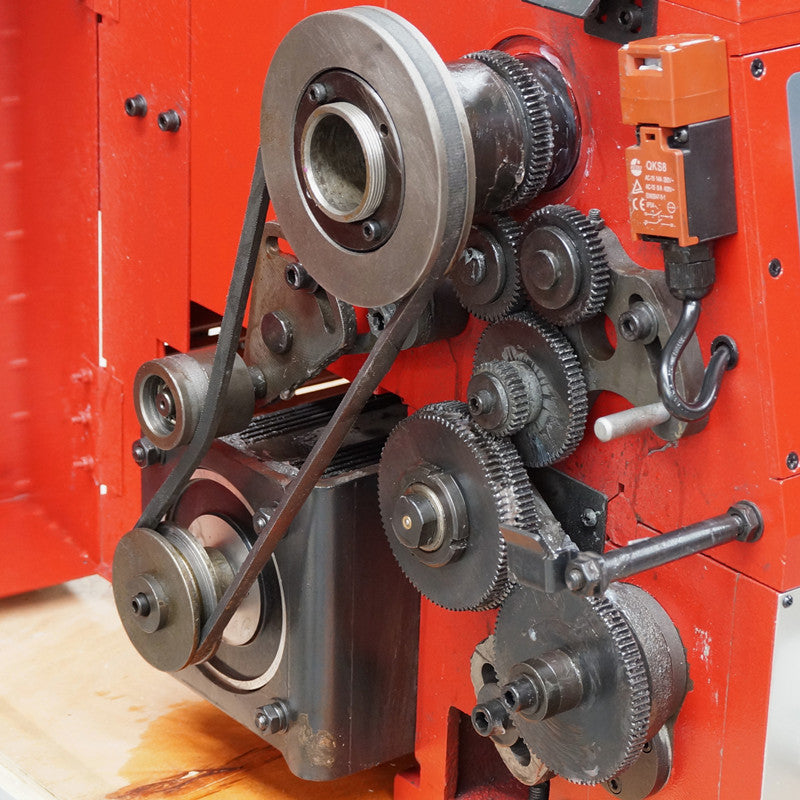

In-Built Oil Bathed Gear Box
Belt Drive for Quieter Operation

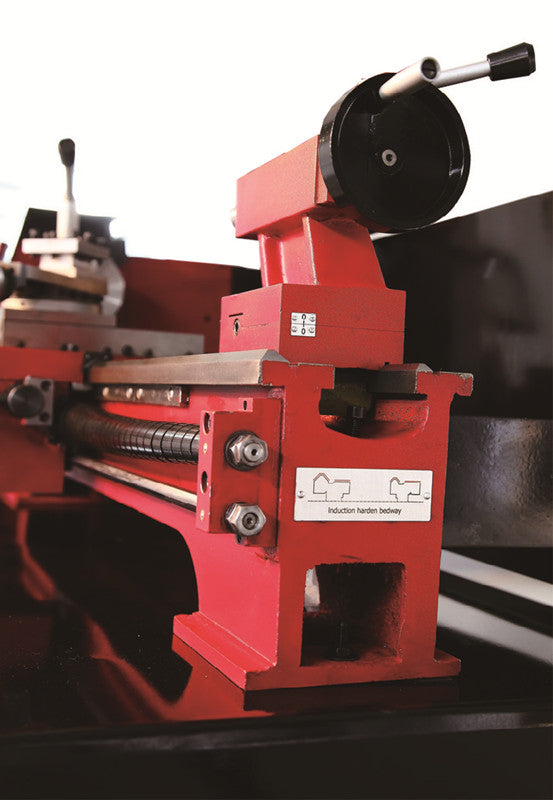

Cam-Lock Tailstock
Metal Gears
T-Slots on Cross Slide
38mm Bore
Metric & Imperial Threads
Switched Chuck Guard
Leadscrew Guard
Leadscrew Overload Clutch
Emergency Stop Button
Heavy Duty Induction Hardened Cast Iron Bed

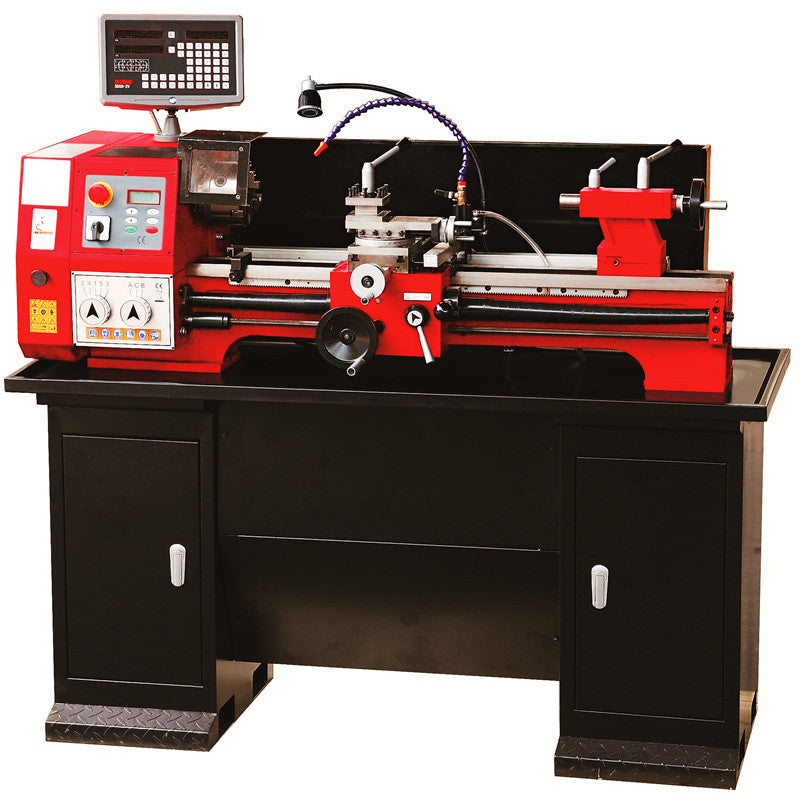

2-axis DRO (Only apply on SC10 PRO)
Coolant System (Only apply on SC10 PRO)
LED Worklight (Only apply on SC10 PRO)
Machine Stand (Only apply on SC10 PRO)

Specifications:
Swing Over Bed: 305mm
Distance Between Centres: 700mm
Spindle Bore: 38mm
Camlock Spindle: D1- 4
Spindle Taper: MT5
Tailstock Taper: MT3
Cross Slide Travel: 155mm
Compound Travel: 80mm
Power Rating: 1810W
Output: 1500W
Range of Threads ( Metric ): 0.25-2.5mm ( 14 Thread Pitches )
Range of Threads ( Imperial ): 12-96 TPI ( 9 Thread Pitches )
Spindle Speed: 100-2000rpm
Overall Dimension ( mm ): 1500x750x730mm
Weight ( Net / Gross ): 215 / 255kg

Standard Accessories:
160mm D1-4 3-Jaw Self-Centering Chuck
MT5 Spindle Centre
MT3 Dead Centre
Fixed & Travelling Steady
Face Plate
Wrench Set

1 Year Extended Warranty Now Available! Click to learn more.

      SIEG Lathe Comparison
Specs. C0 C2 C3&C3P SC3/SC20 SC4 C6 SC6 SC10
Swing Over Bed 110mm 180mm 210mm 250mm 305mm
Distance Between
Centres
125mm 300mm 350mm 400mm 510mm 550mm 700mm
Spindle Bore 10mm 20mm 38mm
Spindle Tapler - MT3 MT5
Tailstock Taper - MT2 MT3
Cross Slide Travel 50mm 65mm 100mm 110mm 155mm
Compound Travel - 55mm 70mm 75mm 80mm
Tool Size (Height) 8mm 10mm 12mm 16mm
Power Rating 210W 400W 550W 650W
Brushless
1250W
Brushless
1000W 1250W
Brushless
1810W
Brushless
Output 150W 250W 350W 500W 1000W 550W 1000W 1500W
Range of Tread
(Metric)
- 0.4-2.0mm
(10 Pitches)
0.25-3.0mm
(17 Pitches)
0.4-3.0mm
(12 Pitches)
0.25-2.5mm
(14 Pitches)
Range of Tread
(Imperial)
- - - - 8-24TPI
(10 Pitches)
10-44TPI
(8 Pitches)
12-96TPI
(9 Pitches)
Weight 14kg 40kg 44kg 50kg 135kg 145kg 215kg
