SIEG RUNMASTER 360x1000mm Centre Lathe with Digital Readout

SKU: 080-011-36110
Sale price
Regular price
You save
$858.00 (10%)
In stock and ready for shipping

Product Informations:

2-axis digital readout system
Coolant system with nozzle
LED light
Leadscrew cover
Foot brake
Heavy duty precision ground V bed, induction hardened

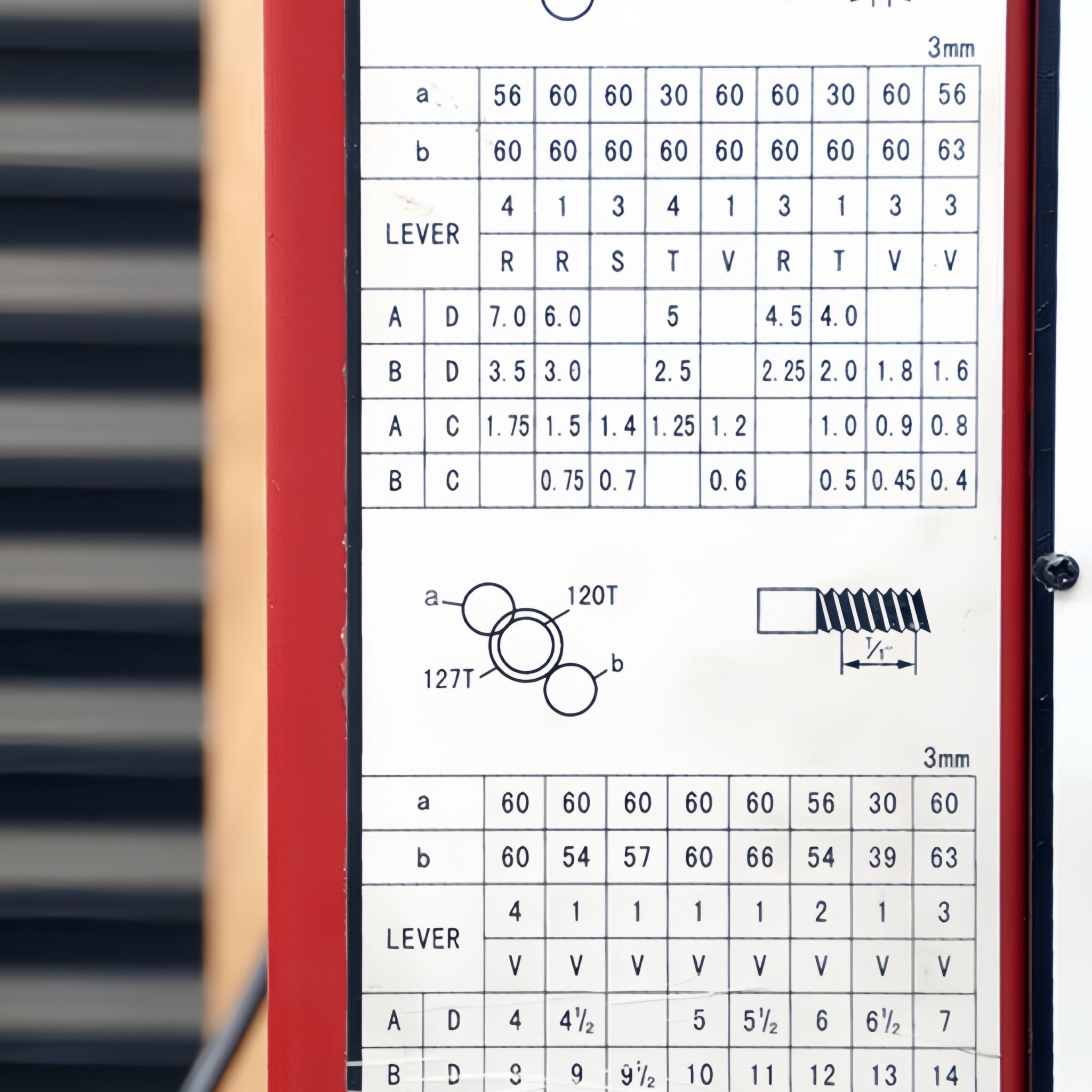

Metric and Imperial thread cutting
Oil bathed gear box with oil sight glass

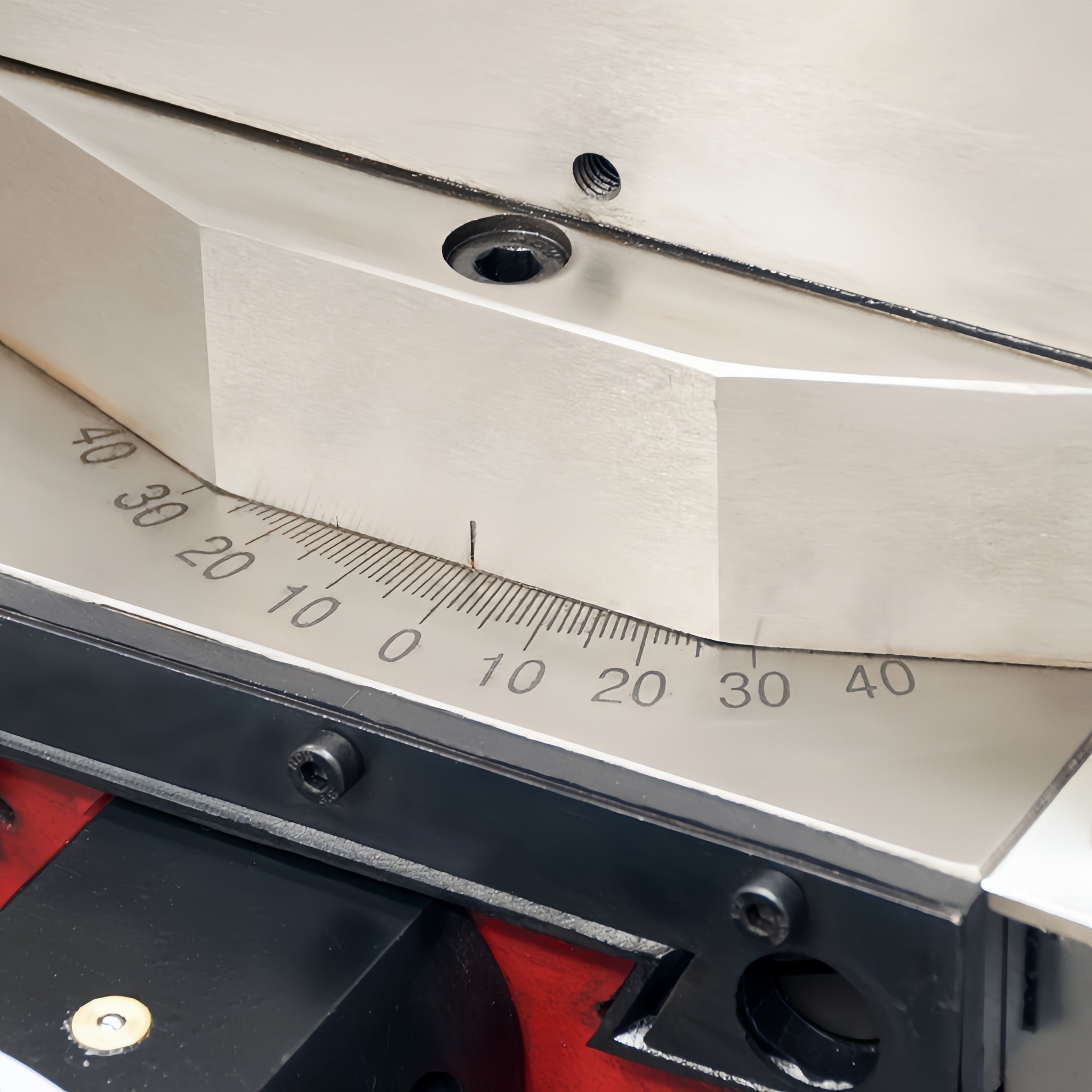

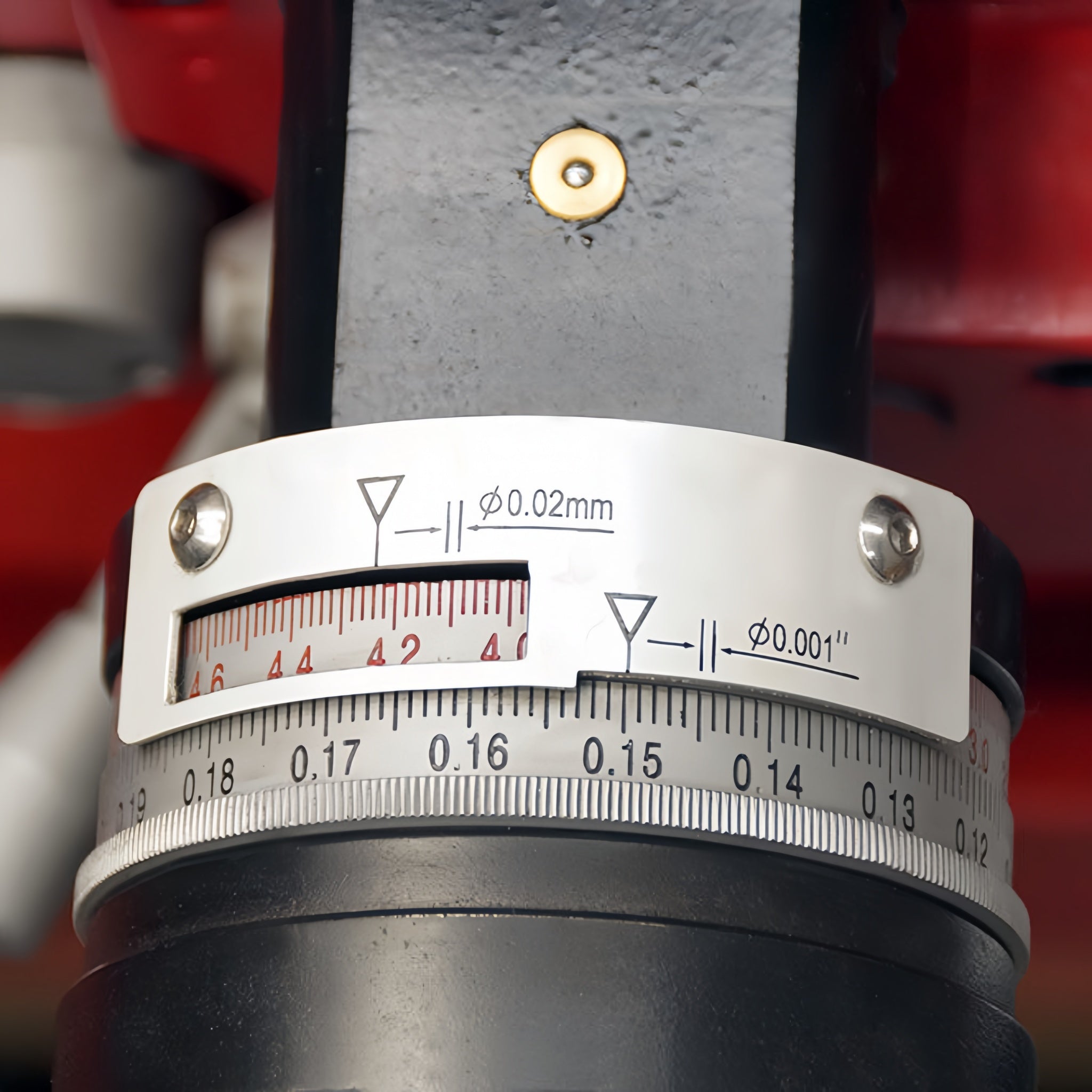

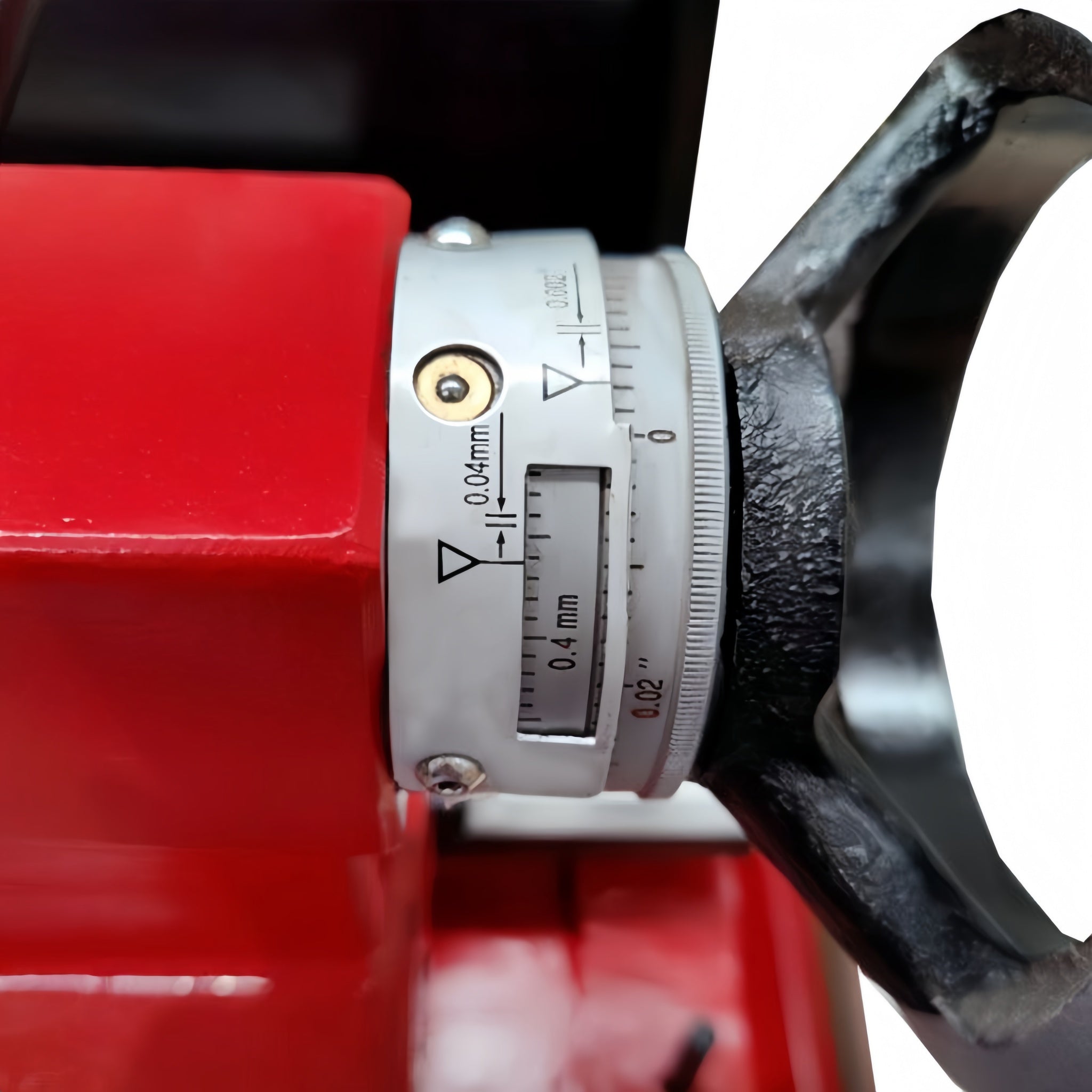

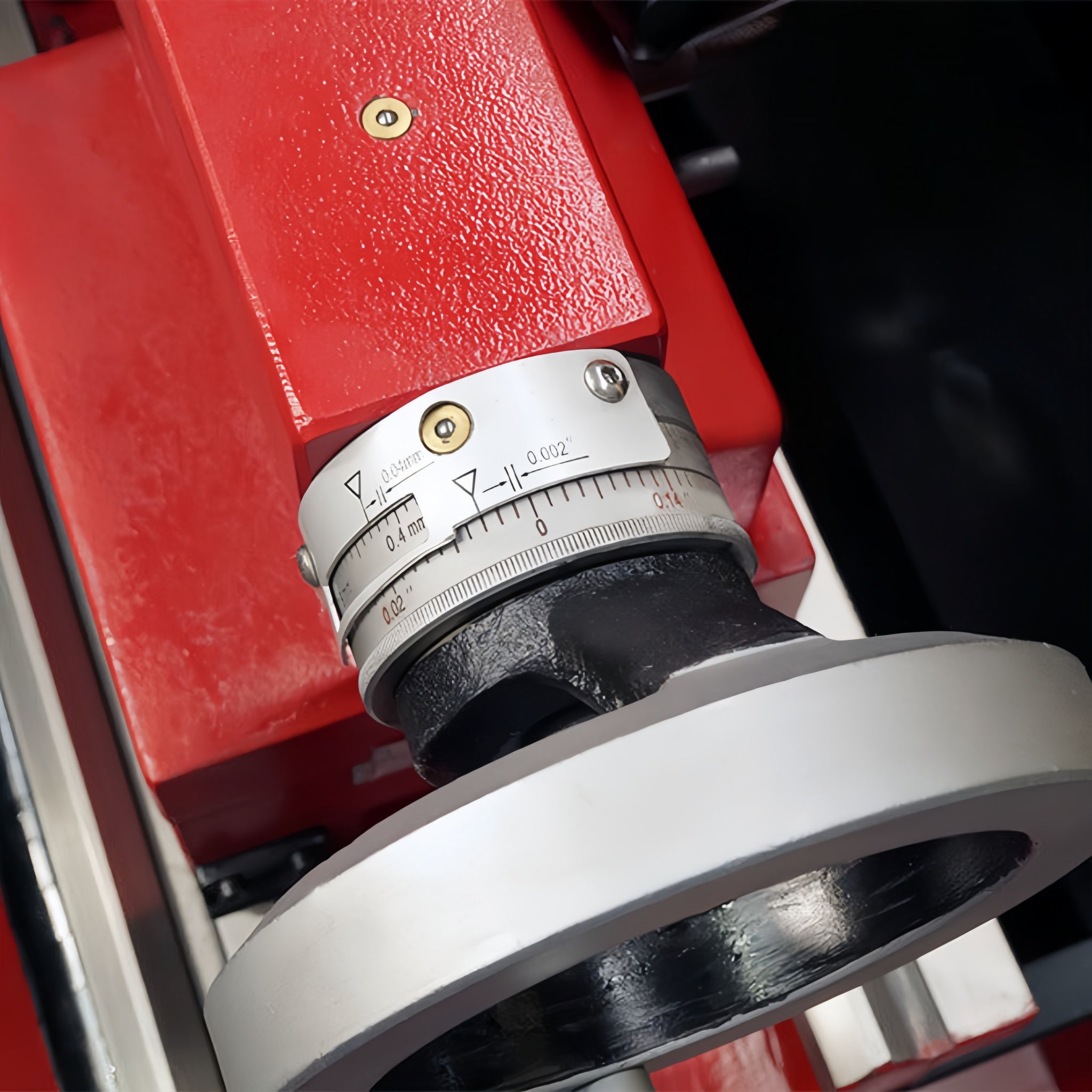

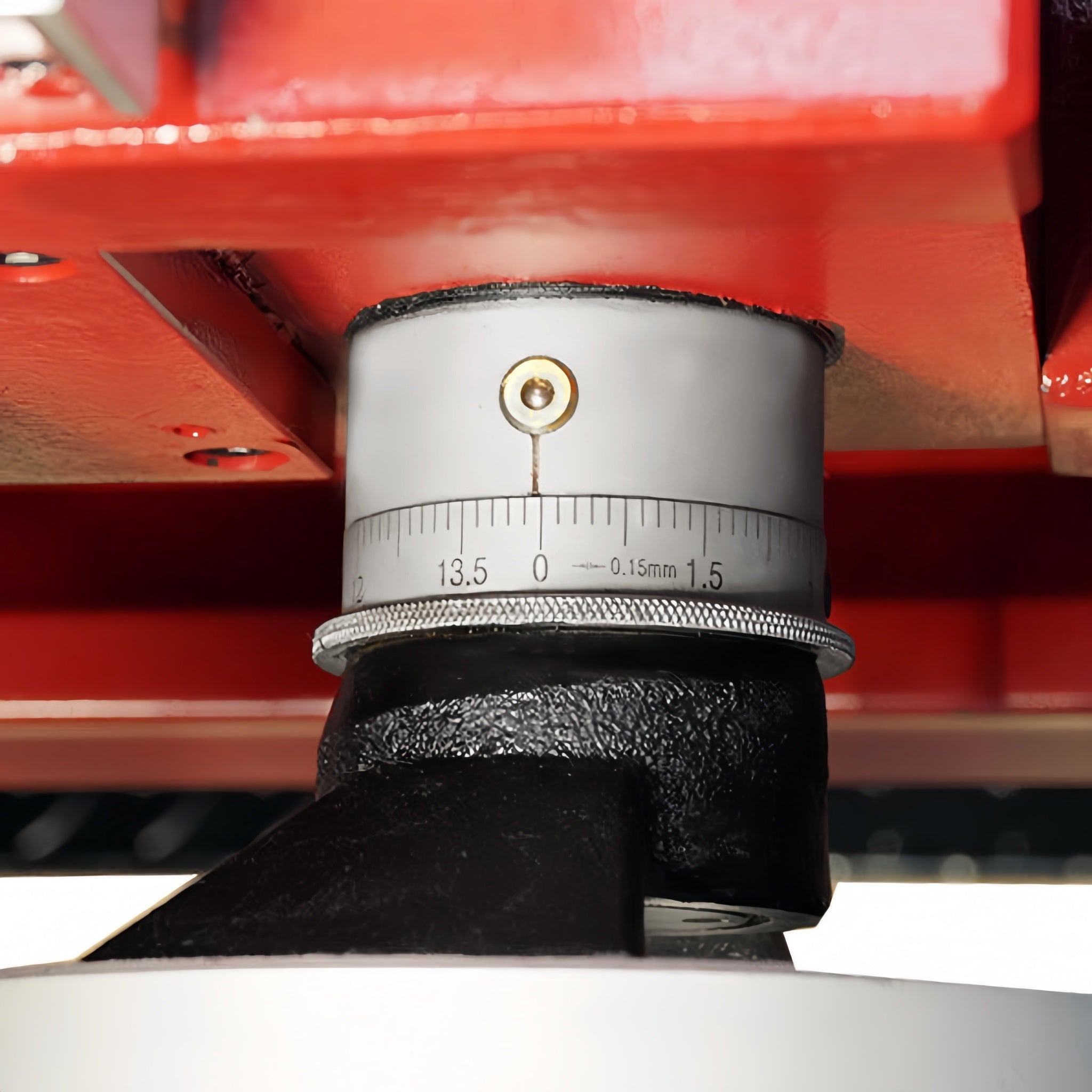

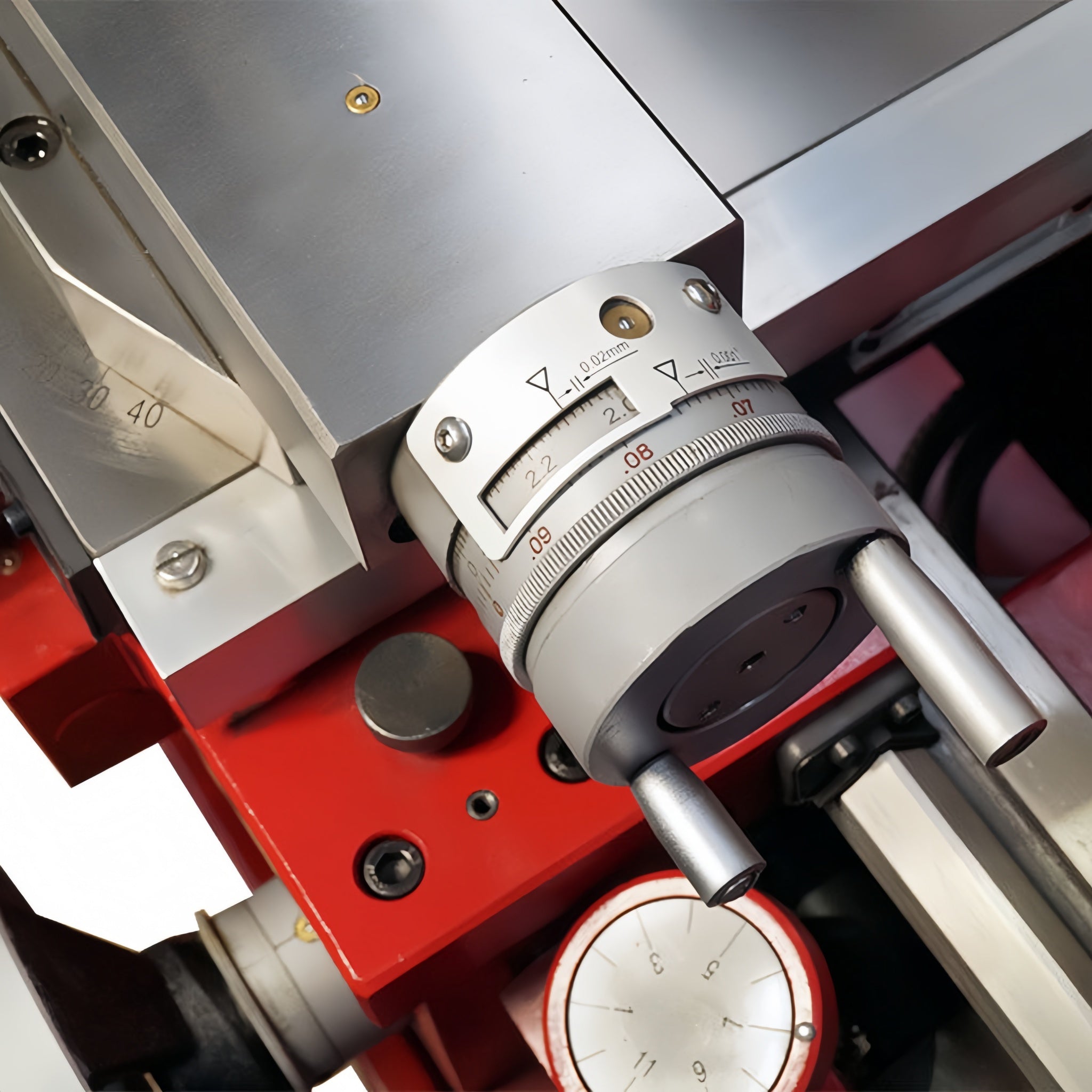

Dual calibrated dial on cross slide, compound slide and tailstock
Chuck guard and gear box guard with micro switch for safety

Swing Over Bed: 360mm
Swing Over Cross Slide: 215mm
Center Height: 180mm
Distance Between Centres: 1000mm
Bed Width: 205mm
Spindle Bore: 41mm
Cam-lock Spindle Type: D1-4
Spindle Taper: MT5
Tailstock Taper: MT4
Spindle Speed (step/rpm) 8 steps / 70-2000rpm
Cross Slide Width: 140mm
Cross Slide Travel: 208mm
Compound Slide Width: 82mm
Leadscrew Type: Full Metric
Tool Size: 16x16mm
Metric Thread Range: 26 (0.4-7mm)
Imperial Thread Range: 34 (4-56TPI)
Cross Feed Rate (X): 0.014-0.380mm/rev
Longitudinal Feed Rate (Z): 0.052-1.392mm/rev

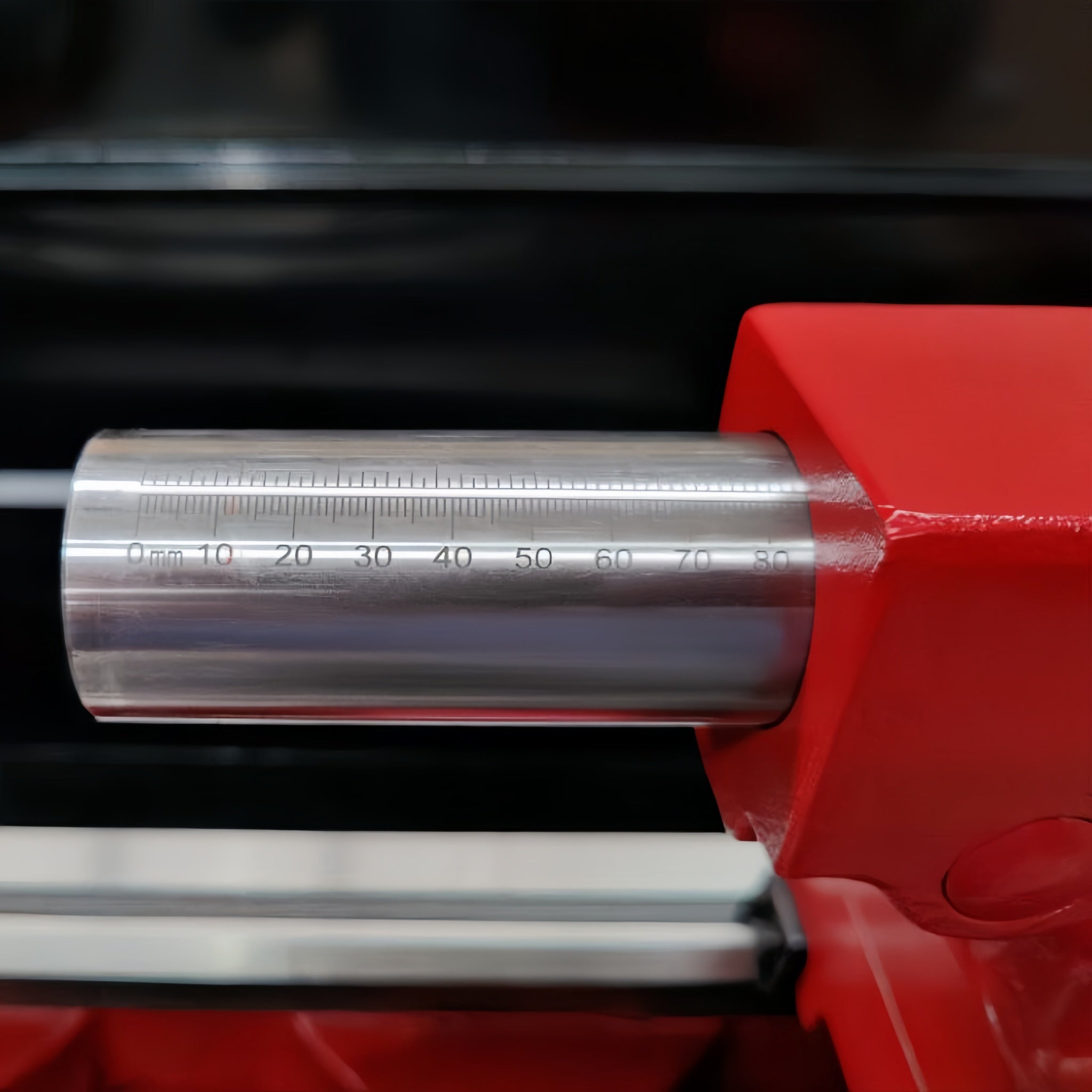

Tailstock Sleeve Dia. 42mm
Tailstock Sleeve Travel: 114mm
Motor Output: 2.25KW / 3HP
Voltage: 415V, 3 Phase
Machine Size: 1930x800x1258mm
Shipping Size:1940x1270x1500mm
Weight (Net/Gross): 625 / 725kg

Standard Accessories:

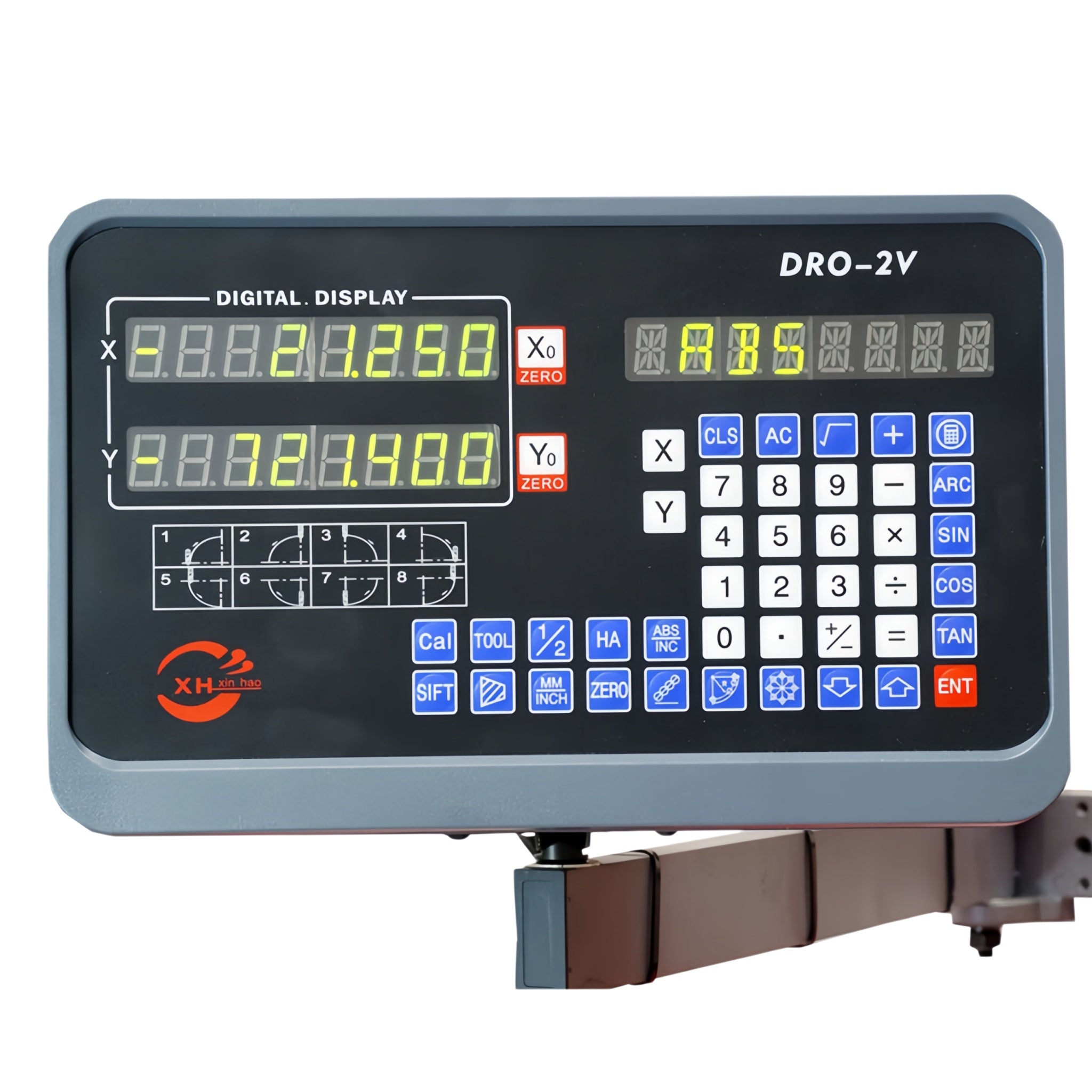

Industrial grade 2-axis digital readout

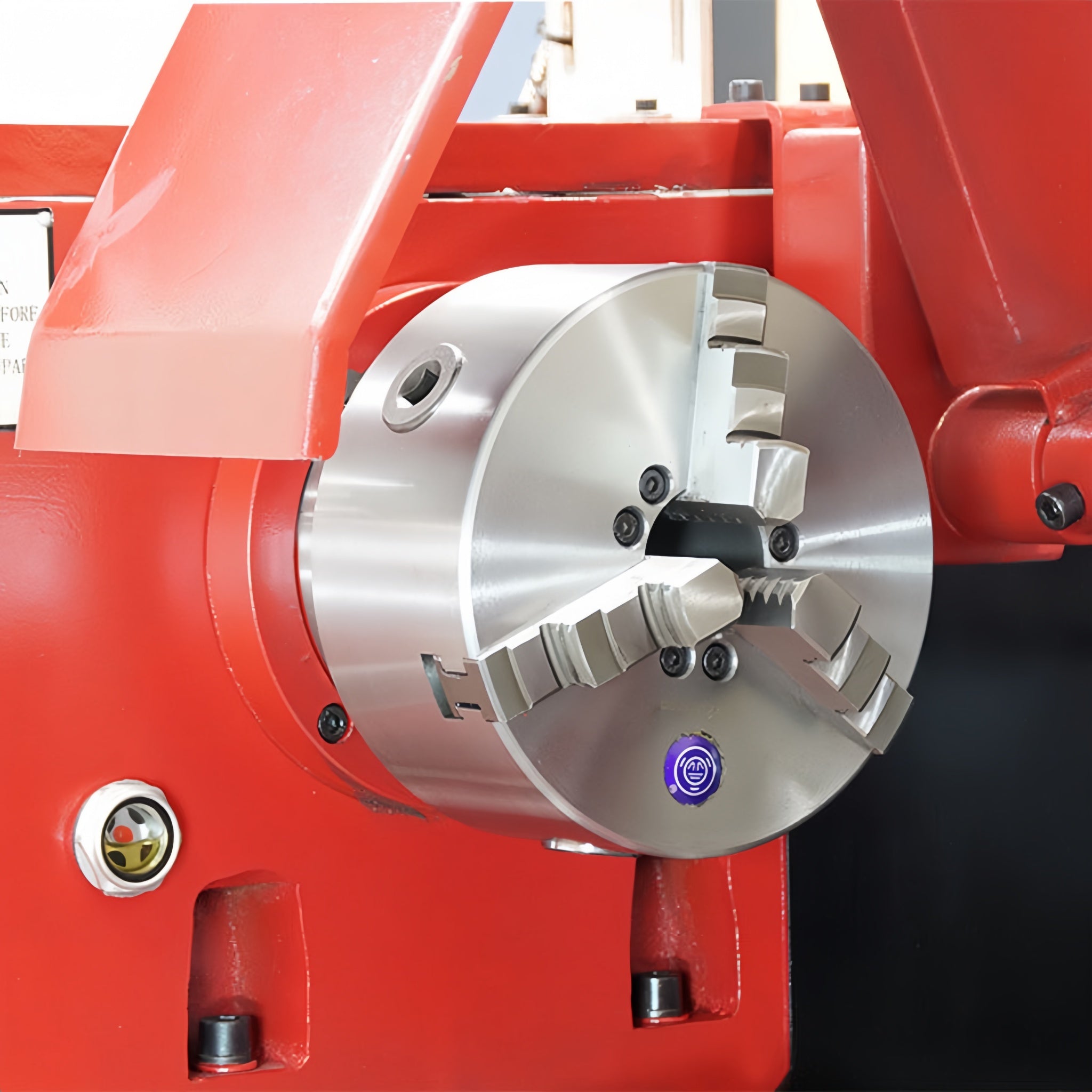

200mm 3-jaw self-centering chuck
200mm 4-jaw independent chuck
Leadscrew cover
Foot brake
Face plate

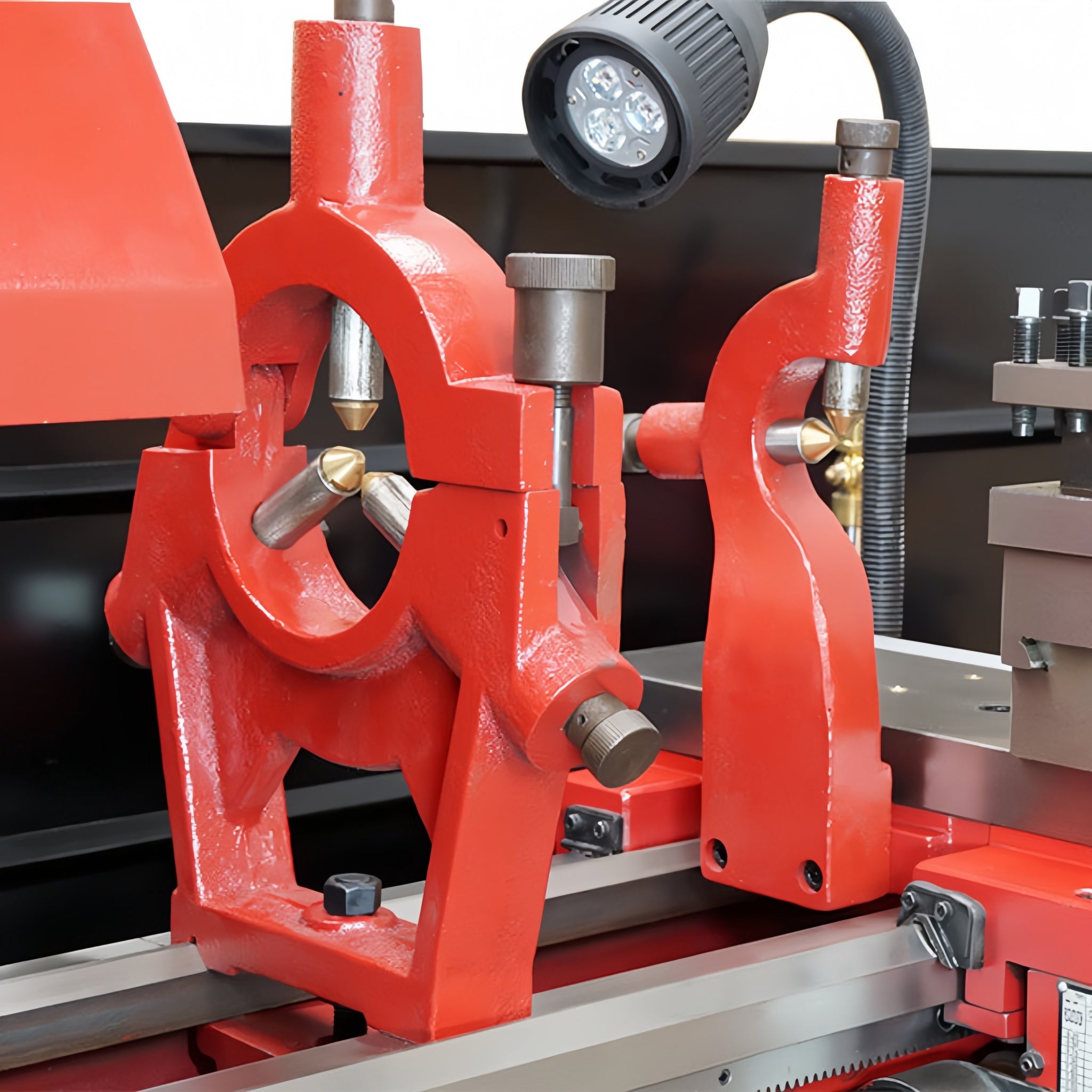

Fixed and travelling steady
Change gear set (built-in)

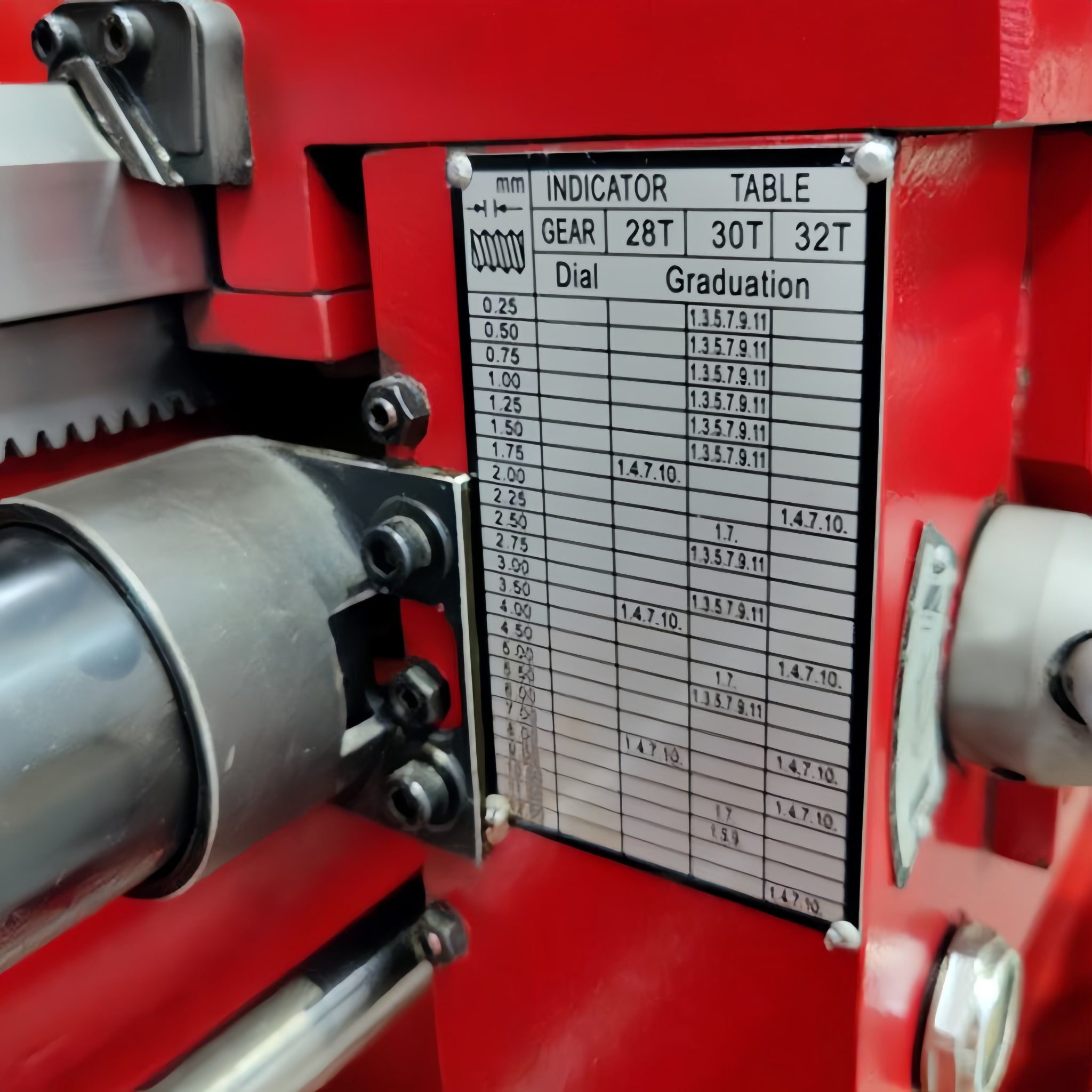

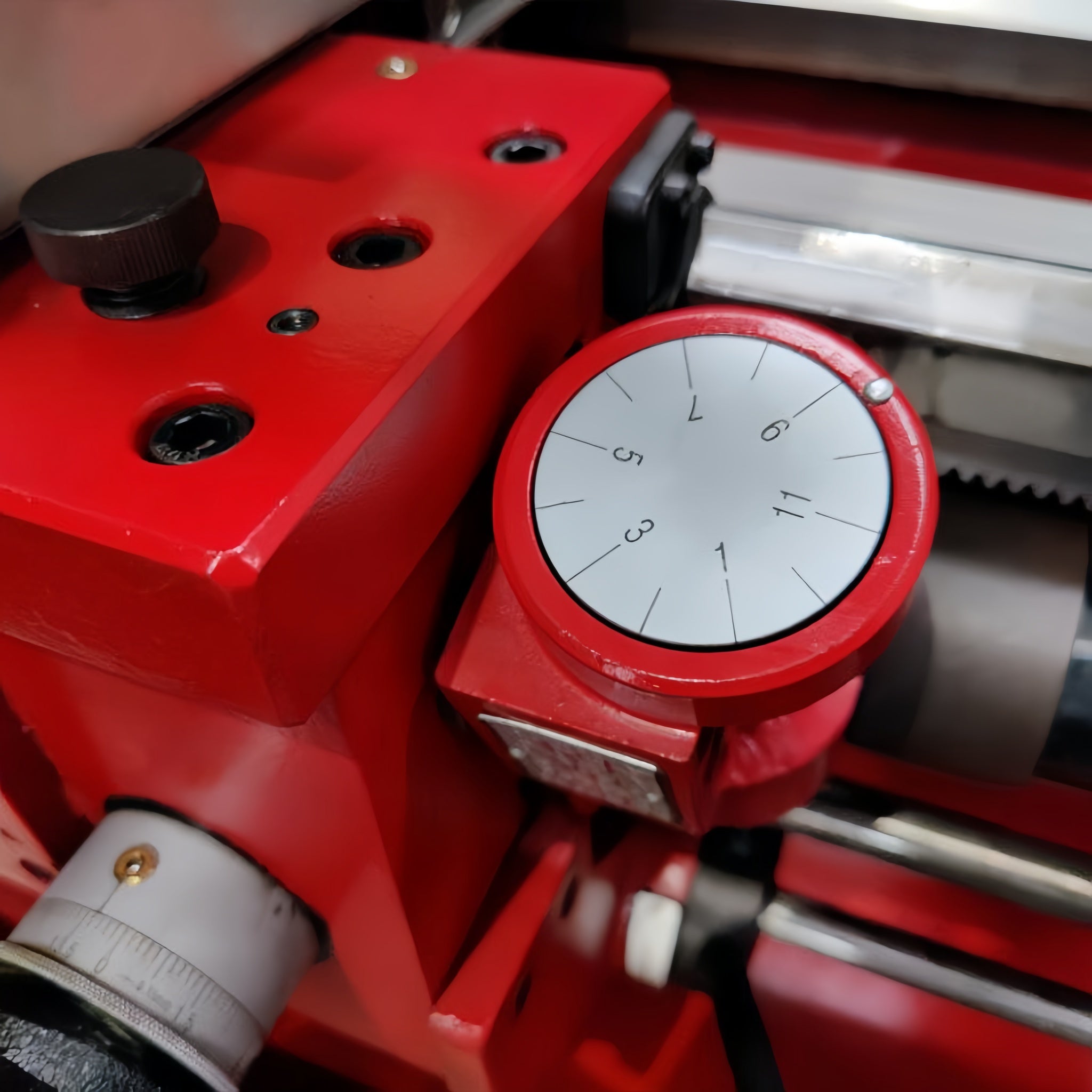

Thread chasing dial
LED light
Splash guard and drip tray
Tool box with tools for maintenance

      SIEG Lathe Comparison
Specs. C0 C2 C3&C3P SC3/SC20 SC4 C6 SC6 SC10
Swing Over Bed 110mm 180mm 210mm 250mm 305mm
Distance Between
125mm 300mm 350mm 400mm 510mm 550mm 700mm
Spindle Bore 10mm 20mm 38mm
Spindle Tapler - MT3 MT5
Tailstock Taper - MT2 MT3
Cross Slide Travel 50mm 65mm 100mm 110mm 155mm
Compound Travel - 55mm 70mm 75mm 80mm
Tool Size (Height) 8mm 10mm 12mm 16mm
Power Rating 210W 400W 550W 650W
1000W 1250W
Output 150W 250W 350W 500W 1000W 550W 1000W 1500W
Range of Tread
- 0.4-2.0mm
(10 Pitches)
(17 Pitches)
(12 Pitches)
(14 Pitches)
Range of Tread
- - - - 8-24TPI
(10 Pitches)
(8 Pitches)
(9 Pitches)
Weight 14kg 40kg 44kg 50kg 135kg 145kg 215kg
