SIEG PREMIUM SX3.5ZDP HiTorque Milling & Drilling Machine

SKU: 080-020-39001
Spindle Taper:
In stock and ready for shipping

Product Informations:

Introducing the first ever SX3.5ZDP. A milling machine comes with everything you craving for. The SX3.5ZDP is by far the most feature rich model  SIEG has ever built.


  • SIEG in-house HiTorque Brushless Motor with Advanced Torque Control

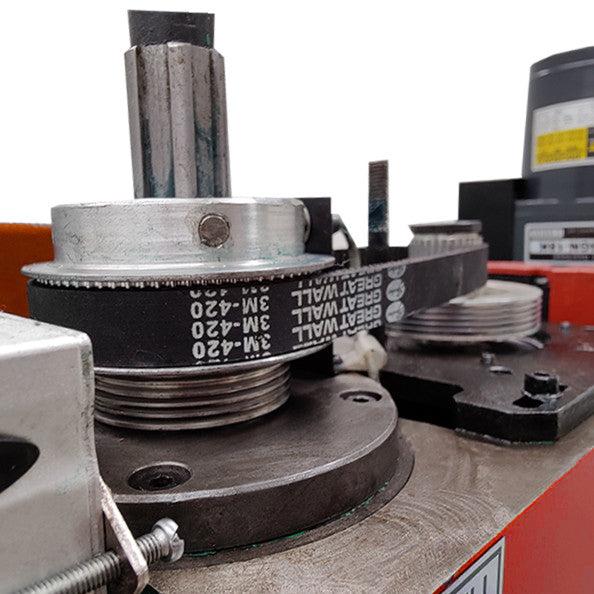

  • Super Quiet Direct Belt Drive with 2 Speed Range
  • Max. 5000rpm Spindle Speed

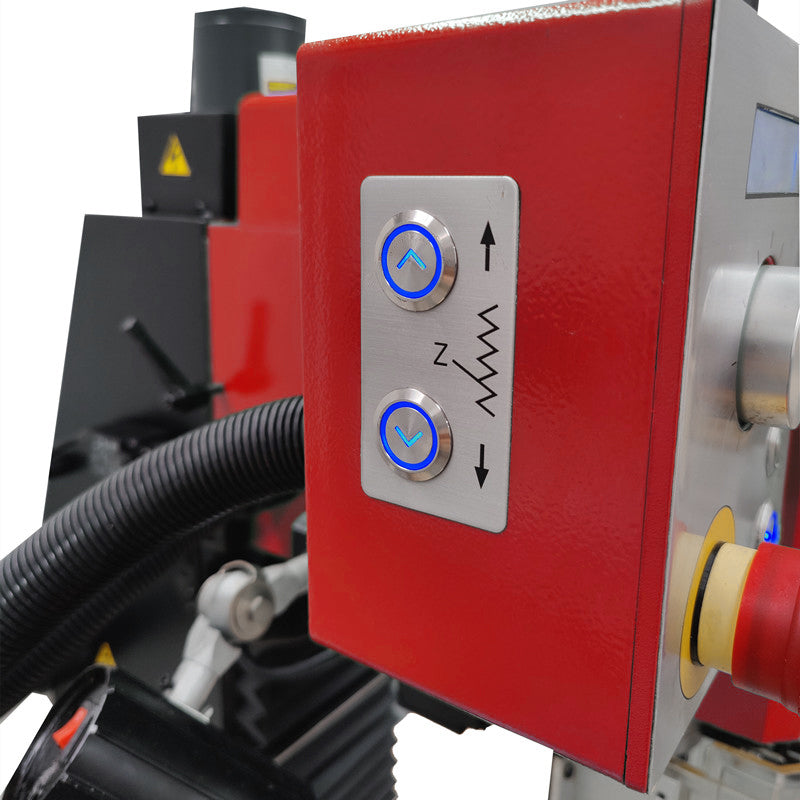

  • Z-axis Power Feed

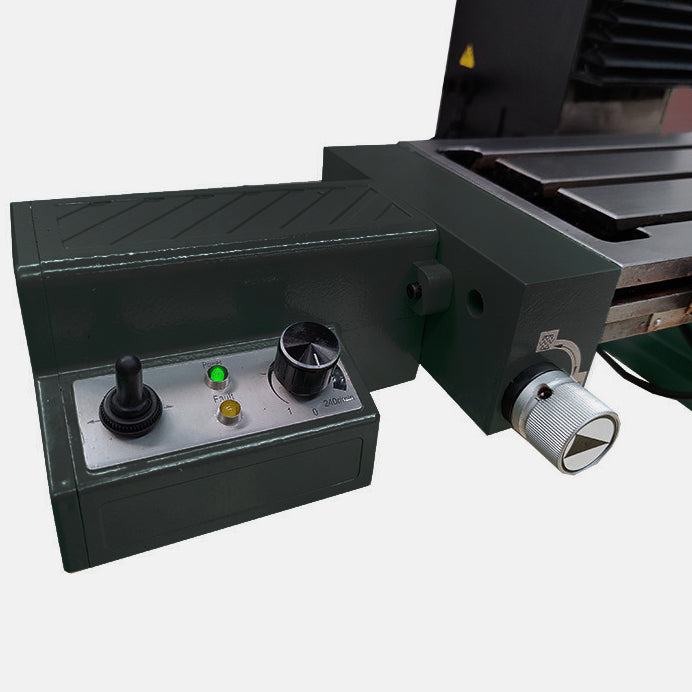

  • X-axis Power Feed with Clutch
  • Digital Readout for X, Y and Z Axis with Built-in Display Unit
  • Fine Feed with Digital Readout for Precise Control of Cutting/Drilling Depth
  • Backlit Spindle Speed Display
  • 2x USB Sockets ( for power supply only)

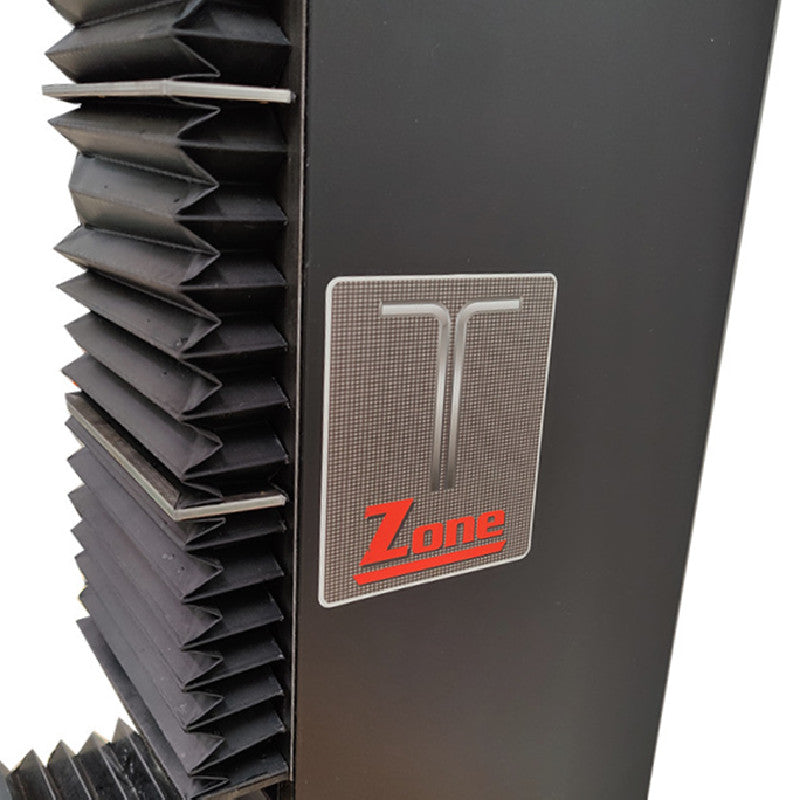

  • Magnetic Zone for Holding Tools
  • Tapping Mode w. Forward / Reverse Button
  • Chuck Guard with Safety Switch
  • 740x180mm Extra Long Worktable

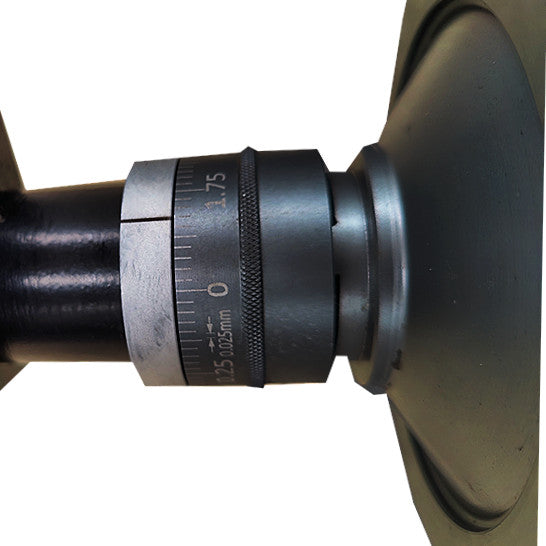

  • Metal Handwheels with
  • Heavy Duty Cast Iron Base

Drilling Capacity: 30mm
End Mill Capacity: 25mm
Face Mill Capacity: 63mm
Tapping Capacity: 12mm
Throat: 230mm
Spindle Stroke: 75mm
Table Travel: 500 x 210mm ( X, Y )
Head Travel: 250mm ( with guard )
Spindle Taper:  MT3 /  R8
Max. Spindle to Table: 340mm
Effective Table Size: 740x180mm
T-Slot Size: 12mm
Power Rating: 1250W
Output: 1000W
Spindle Speed Low Range: 800-1800rpm
Spindle Speed Low Range: 280-5000rpm
Overall Dimension: 1140x765x925mm
Weight ( Net/Gross ): 151 / 186kg

Standard Accessories:
Drill Chuck with Arbor
Wrench Set
