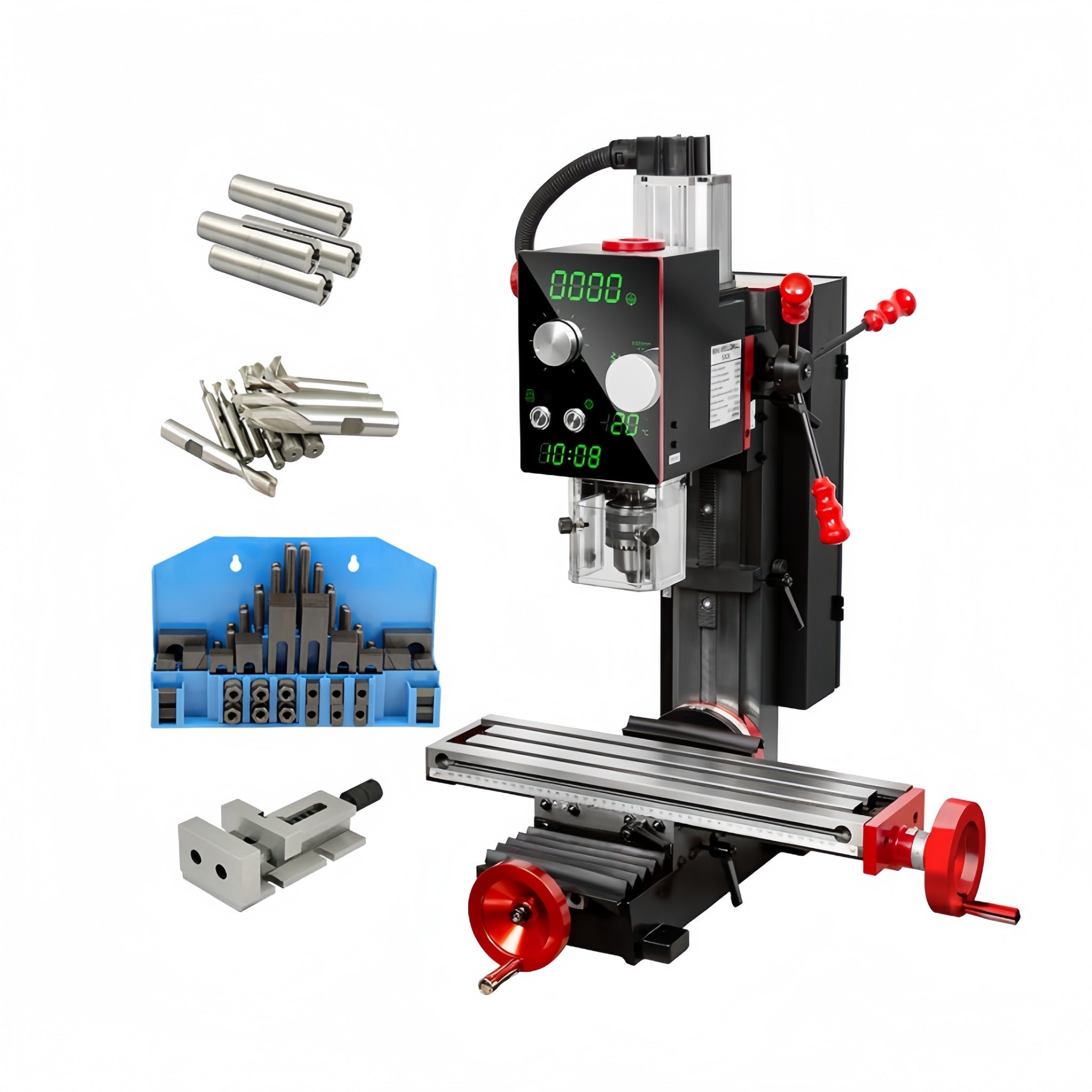

SIEG PREMIUM SX20LF HiTorque Milling & Drilling Machine - R8

SKU: 080-020-28801

Price: $2,695.00

Options:

In stock and ready for shipping

Product Informations:

Features:

Luxurious mirror panel featuring a digital clock and thermometer, providing you with both convenience and sophistication..
Angular contact spindle bearing for optimal stability and precision.
Digital spindle speed display.
3-axis DRO
USB power supply x 2
Gas strut counterweights ensure smooth head movement.
High torque brushless motor for exceptional power and efficiency, built to handle even the toughest turning projects.
Bigger section column mounted directly to the base for extra rigidity.

Specifications:
Drilling Capacity: 16mm
End Mill Capacity: 20mm
Face Mill Capacity: 35mm
Table Travel: 300x130mm ( X, Y )
Head Stock Travel: 250mm
Spindle Taper: R8
Throat: 167mm
Max. Spindle to Table: 15-285mm
Table Size: 460x120mm
T-Slot Size: 12mm
Power Rating: 610W
Output: 500W
Spindle Speed: 0-2500rpm
Overall Dimension: 520x580x760mm
Weight （ Net/Gross ): 58 / 75kg
(The power feed shown in the photo is an optional accessory.)

Standard Accessories:
Android Pad for 3-axis DRO
Drill Chuck with Arbor
Drawbar Wrench Set

Starter Kits Includes(Optional):

M10 58pcs Clamping Kit
SIEG Quick Clamp Vice 50mm
6,10,12,16mm R8 Collets 4pcs Set
HSS 2-12mm Milling Cutter 11pcs Set
