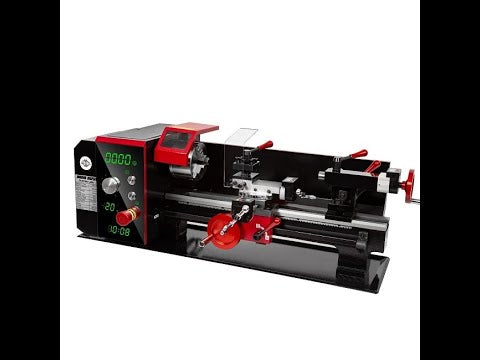

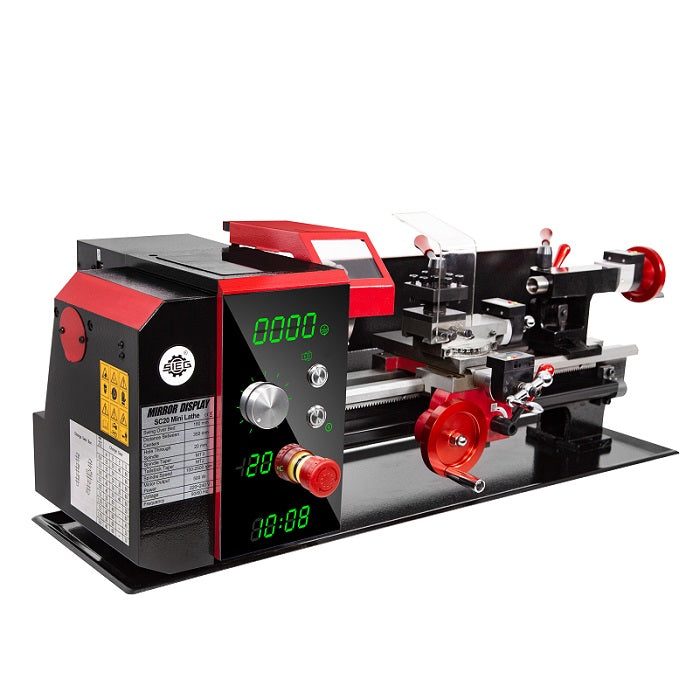

SIEG PREMIUM SC20 / 180x400mm Hi-Torque Lathe

SKU:
Price
$1,958.00
Option:
SC20 Machine Only
In stock and ready for shipping

Product Informations:

Features:

Luxurious mirror panel featuring a digital clock and thermometer, providing you with both convenience and sophistication..
Angular contact spindle bearing for optimal stability and precision.
Digital spindle speed display.
2-axis DRO on cross slide and compound slide, DRO for tailstock.
Camlock Tailstock
Precision 100mm 3-jaw Chuck
USB power supply x 2
High torque brushless motor for exceptional power and efficiency, built to handle even the toughest turning projects.

Specification:

Swing Over Bed

180mm

Distance Between Centres

400mm

Spindle Bore

20mm

Spindle Taper

MT3

Tailstock Taper

MT2

Cross Slide Travel

65mm

Compound Slide Travel

55mm

Power Rating

610W

Output

500W DC Brushless Motor

Metric Range of Threads

0.4-2.0mm (10Thread Pitches)

Spindle Speed

100-2500rpm

Overall Dimension

900x420x390mm

Weight ( Net / Gross )

50/55kg



Standard Accessories:
80mm 3-Jaw Self-Centering Chuck
MT2 Dead Centre
Metric Change Gear Set
Oil Tray
Wrench Set

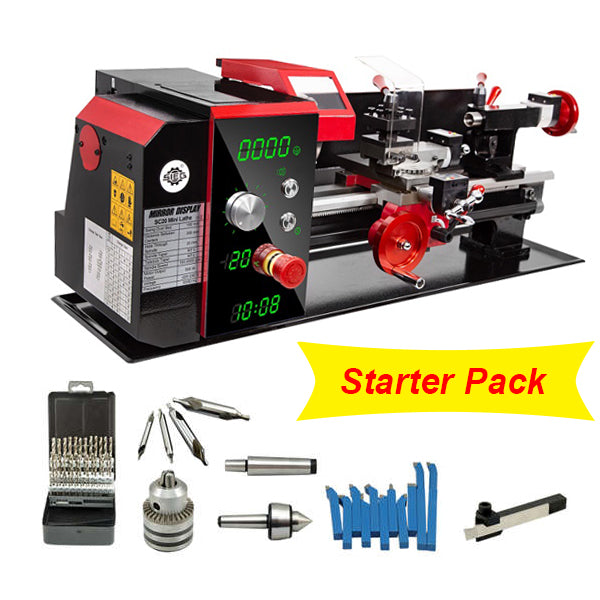

Starter Kit Includes (Optional):

  • 8x8mm Carbide Tipped 11pcs Lathe Tool Set
  • 8mm Parting Off Tool
  • Key type Drill Chuck, B16 1-13mm
  • MT2/B16 Drill Chuck Arbor
  • HSS Drill Bit 1-6mm set 51pcs, 0.1mm increment. (Split Head from 3mm up)
  • HSS Centre Drill Set 4pcs Set 1.6-4mm
  • MT2 Revolving Centre
