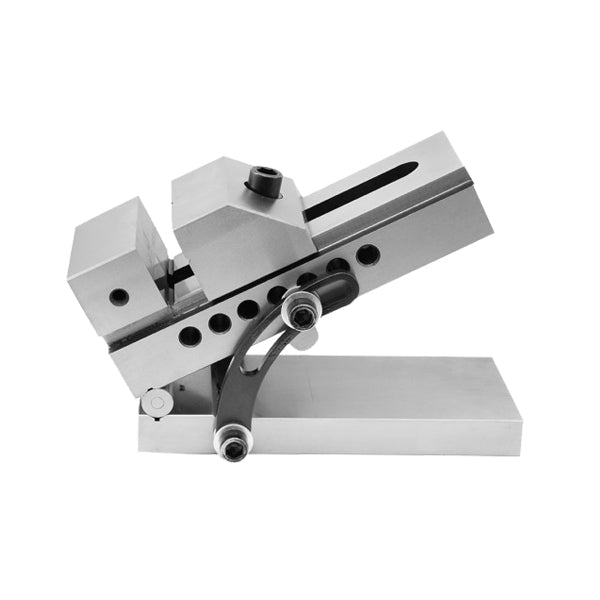

Precision Sine Tool Vise

Engineered for the most demanding applications in milling, grinding, and inspection, this vise eliminates the guesswork from complex angular setups. Utilizing standard angle blocks, you can achieve exact settings from 0 to 45 degrees with unparalleled repeatability, ensuring every part meets your strictest specifications.

Key Features for Unmatched Performance:

• Absolute Angular Accuracy: Set and lock precise angles from 0° to 45° using your existing angle blocks, making it ideal for prototyping, toolmaking, and precision part production.

• Rigidity Without Compromise: Constructed from high-grade alloy steel, carburized and heat-treated to a surface hardness of HRC 58-62, it guarantees long-term durability and resistance to wear.

• Guaranteed Precision Ground: Critical surfaces are precision ground to maintain exceptional parallelism and squareness within 0.005 mm, providing a foundation of accuracy for your work.

• Versatile Workholding: Features horizontal and vertical V-grooves on the sliding jaw for securely clamping round or cylindrical workpieces, expanding its capability beyond standard blocks.

• Zero Jaw Lift Design: A patented angled locking screw mechanism completely eliminates jaw lift during clamping, ensuring your workpiece stays perfectly positioned and parallel.

• Enhanced Modularity: Threaded holes on the fixing jaw allow for easy installation of custom end stops and fixtures, tailoring the vise to your specific workflow.

Specifications:
