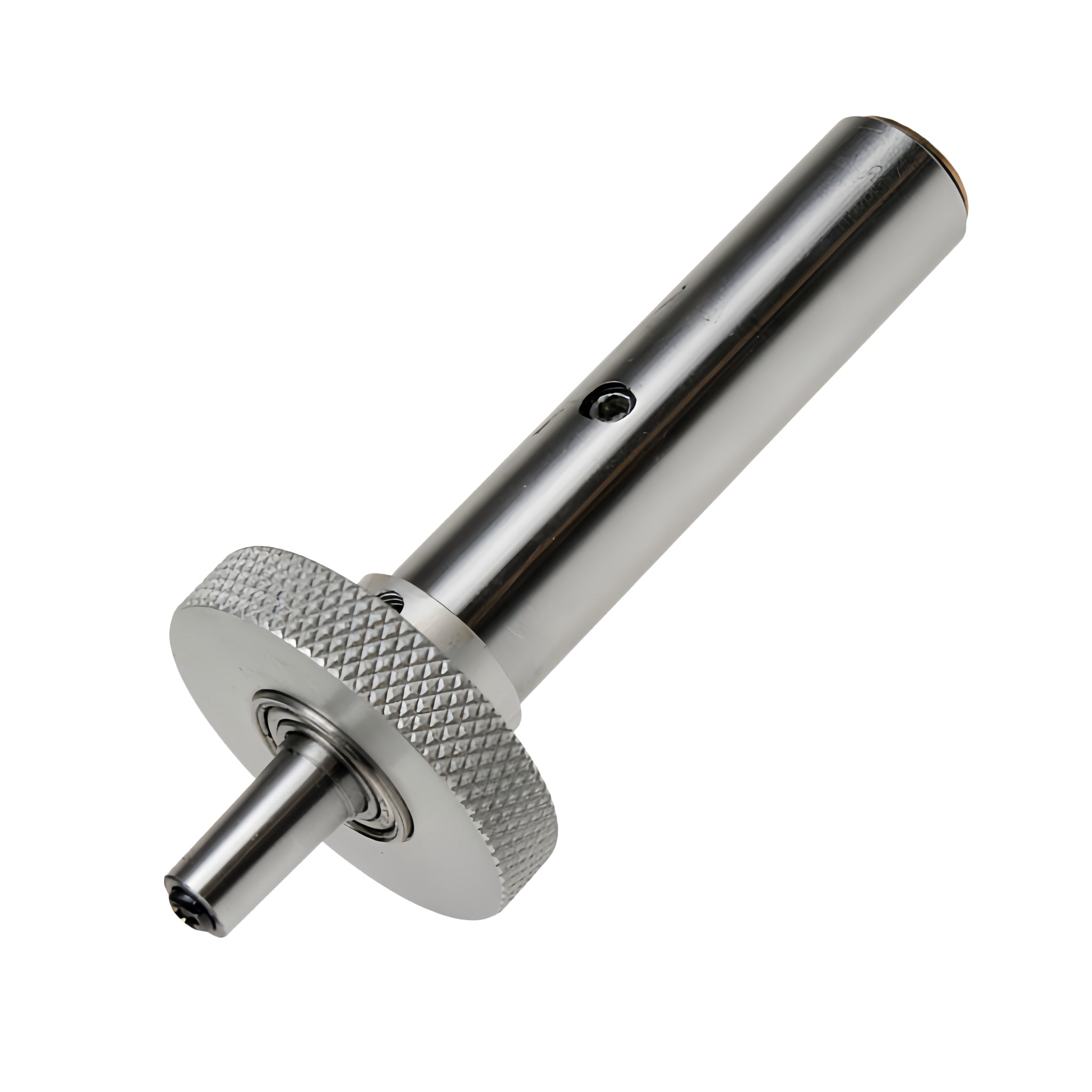

Micro Drill Adaptor JT0 - 1/2" Shank

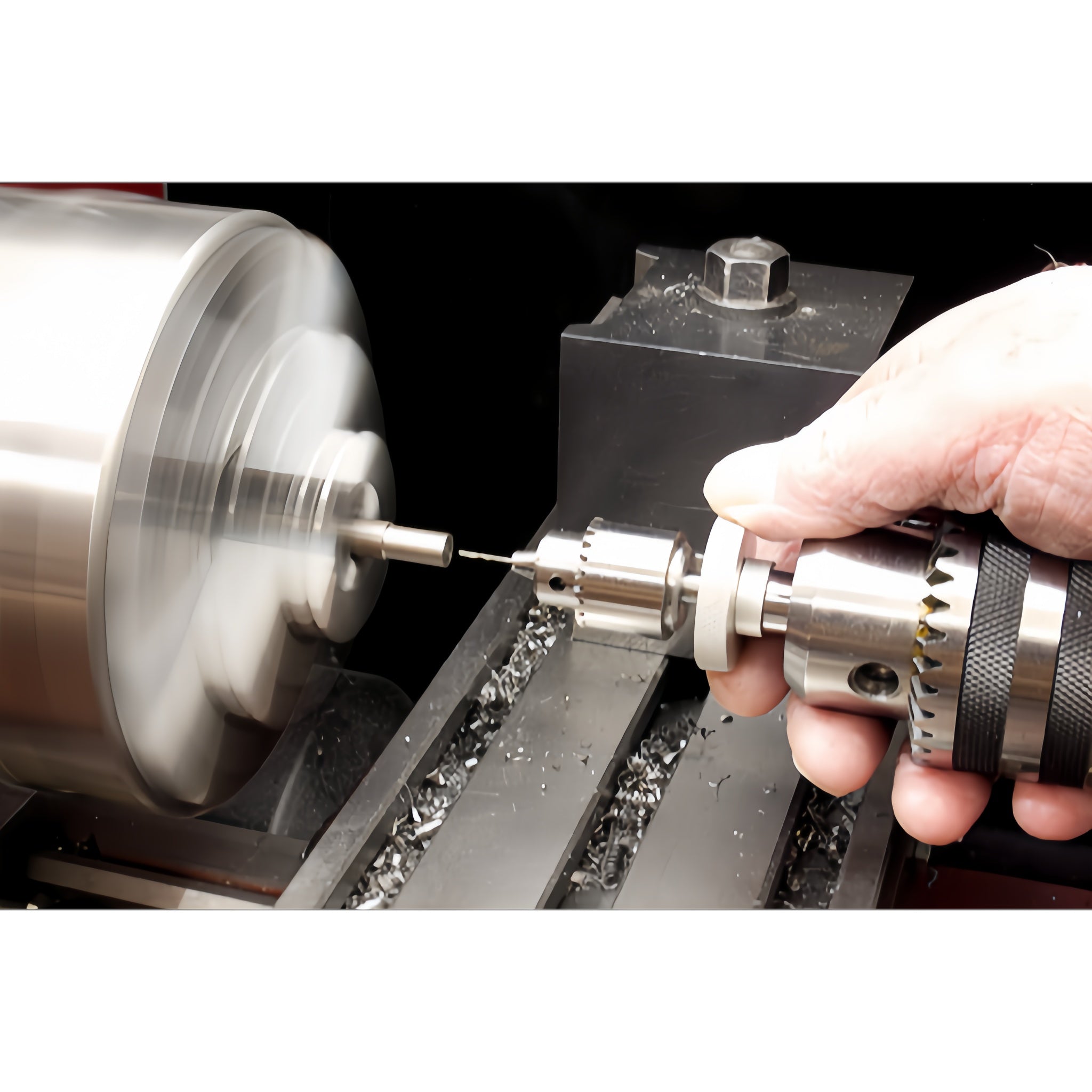

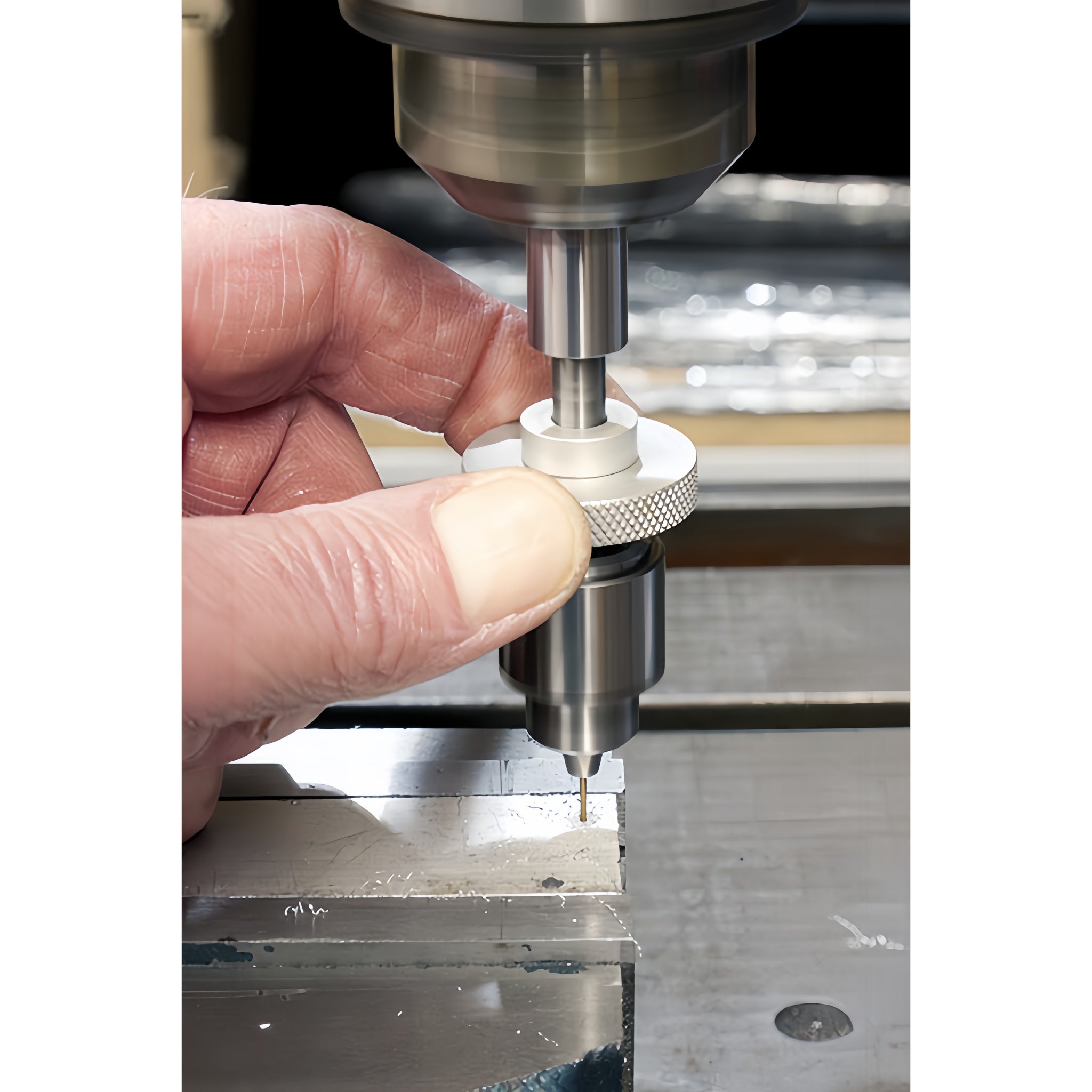

The Micro Drill Adaptor is like a miniature quill and is designed for drilling small holes using a lathe, mill or pillar drill.

How it Works

The shank has an internal, spring return, sliding spindle keyed to it with a JT0 taper to which a small drill chuck is fitted.

A knurled ring is mounted to the spindle via a bearing and is used to manually feed the spindle even when the adaptor is rotating at high speed.
(Chuck not included)

Features:

• Sensitive fingertip control.
• Helps prevent drill breakage.
• Accurate drilling of small holes with large machines.
• 1/2" straight shank.
• JT0 chuck taper. (Suits our JT0 0.4-4mm drill chuck 010-020-01000 )
