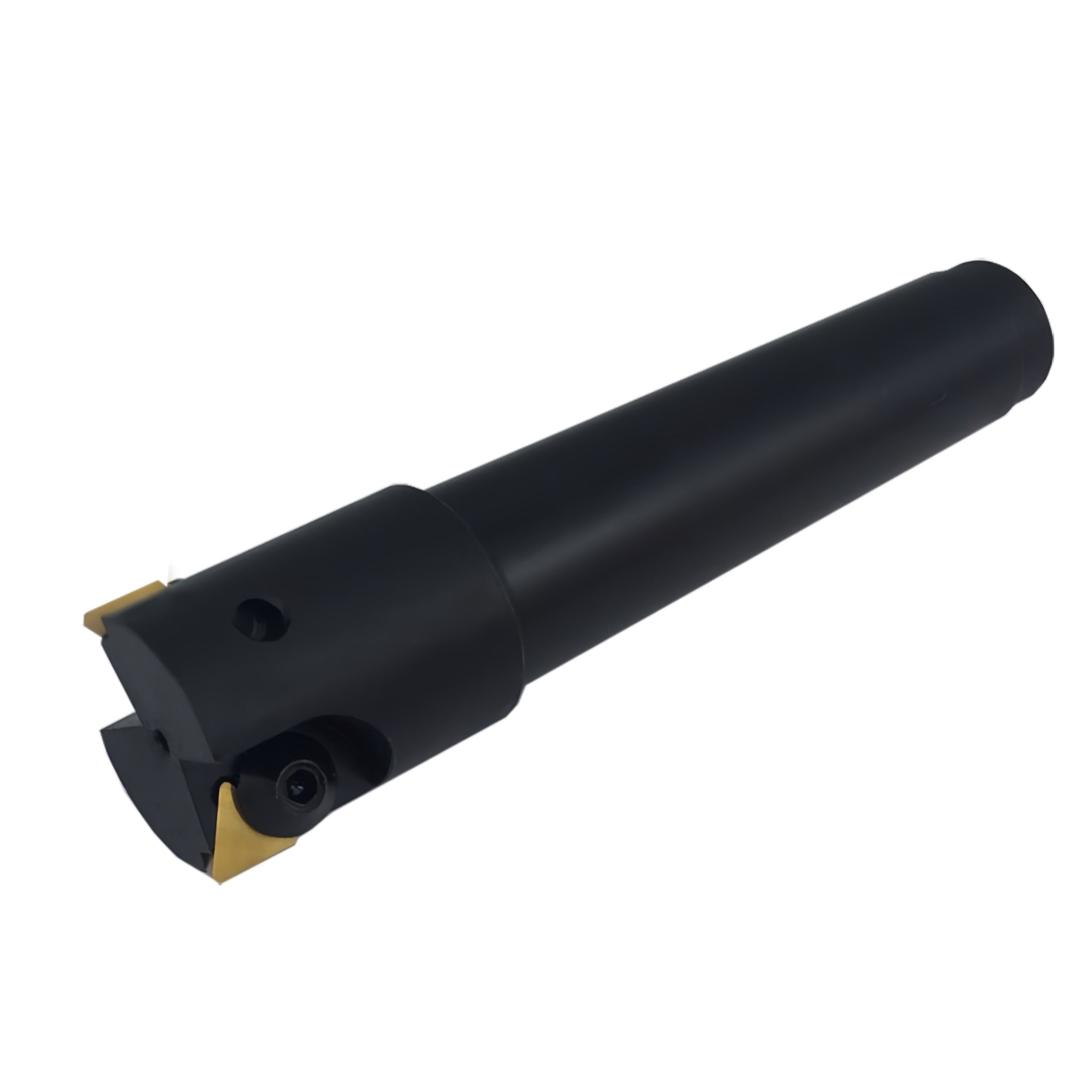

Indexable Carbide End Mills w. Morse Taper
A metal rotary milling cutting tool with a black and silver body and yellow coated cutting edges, shown on a plain white background.

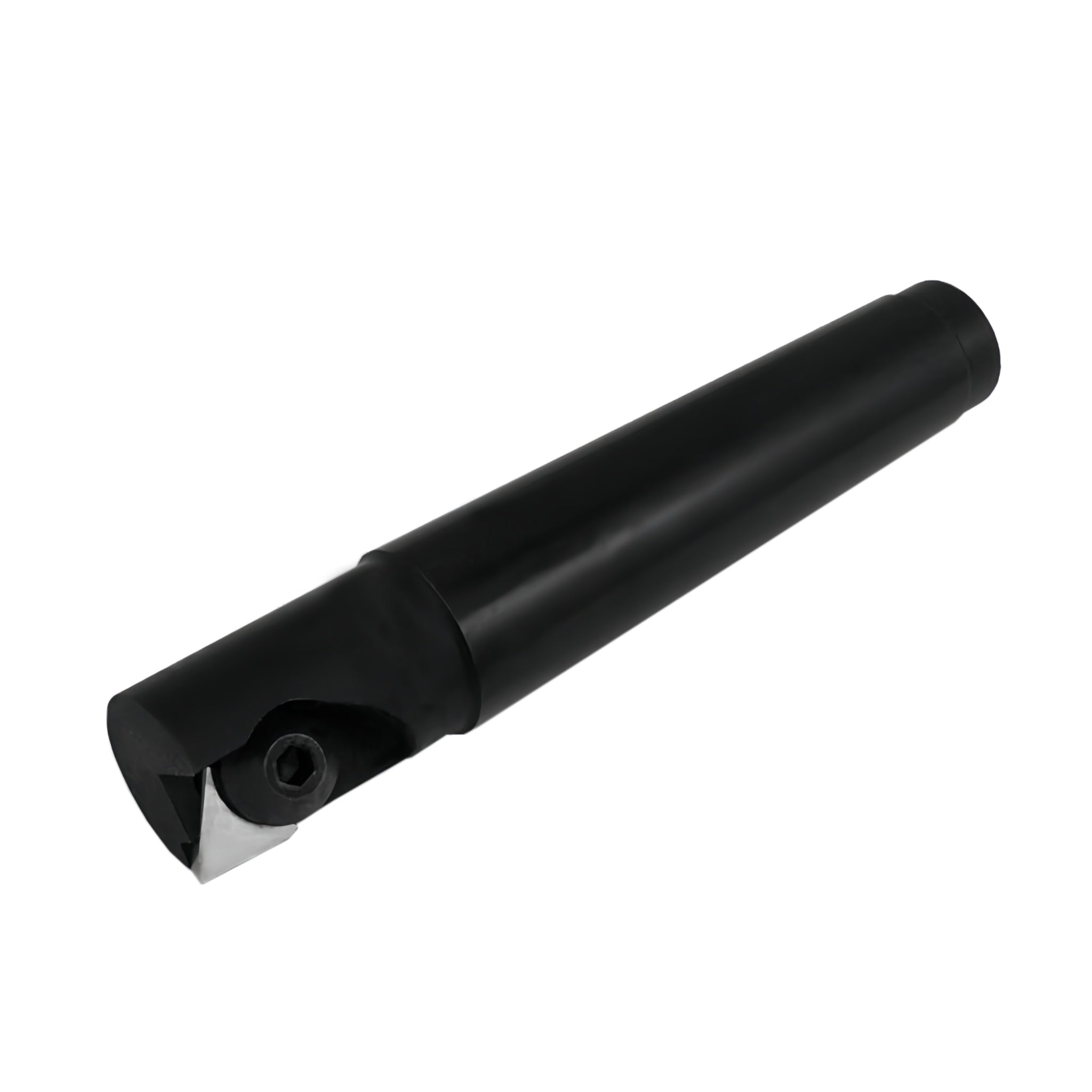

A black cylindrical metal tool holder or cutting insert with a triangular cutting edge, shown on a plain white background.
Indexable Carbide End Mills w. Morse Taper

Indexable Carbide End Mills w. Morse Taper

SKU: 060-021-02016
Price
$36.50
Size:
MT2 x 16mm (M10 Thread)

Product variant with selected options does not exist!
In stock and ready for shipping

Product Informations:

Upgrade your machining efficiency with our high-performance Indexable Carbide End Mills. Designed with an integrated Morse Taper (MT) shank and drawbar thread, these end mills mount directly into your machine spindle for high rigidity, reduced runout, and reliable material removal.

Cutting Dia. Shank L L1 ap No. of Insert Insert Screw
16mm MT2 94mm 25mm 8.7mm 1 TPCN1103PDTR M5x0.8x8mm
18mm MT2 94mm 25mm 8.7mm 1 TPCN1103PDTR M5x0.8x8mm
20mm MT3 116mm 30mm 8.7mm 2 TPCN1103PDTR M5x0.8x5mm
25mm MT3 124mm 38mm 8.7mm 2 TPCN1103PDTR M5x0.8x8mm
30mm MT3 124mm 38mm 8.7mm 2 TPCN1103PDTR M5x0.8x8mm
40mm MT3 124mm 38mm 13.0mm 3 TPCN1603PDTR M6x0.75x12mm
50mm MT3 126mm 40mm 17.8mm 3 TPCN2204PDTR M8x1.0x12mm
40mm MT4 157mm 54mm 13.0mm 3 TPCN1603PDTR M6x0.75x12mm
50mm MT4 157mm 54mm 17.8mm 3 TPCN2204PDTR M8x1.0x12mm
Each Set Includes
  • Indexable End Mill - Morse Taper Shank
  • Carbide Insert
  • Allen Key
