A gold carbide insert for lathe tool in a gold three-prong setting, centered on a solid white background with a soft reflection below.

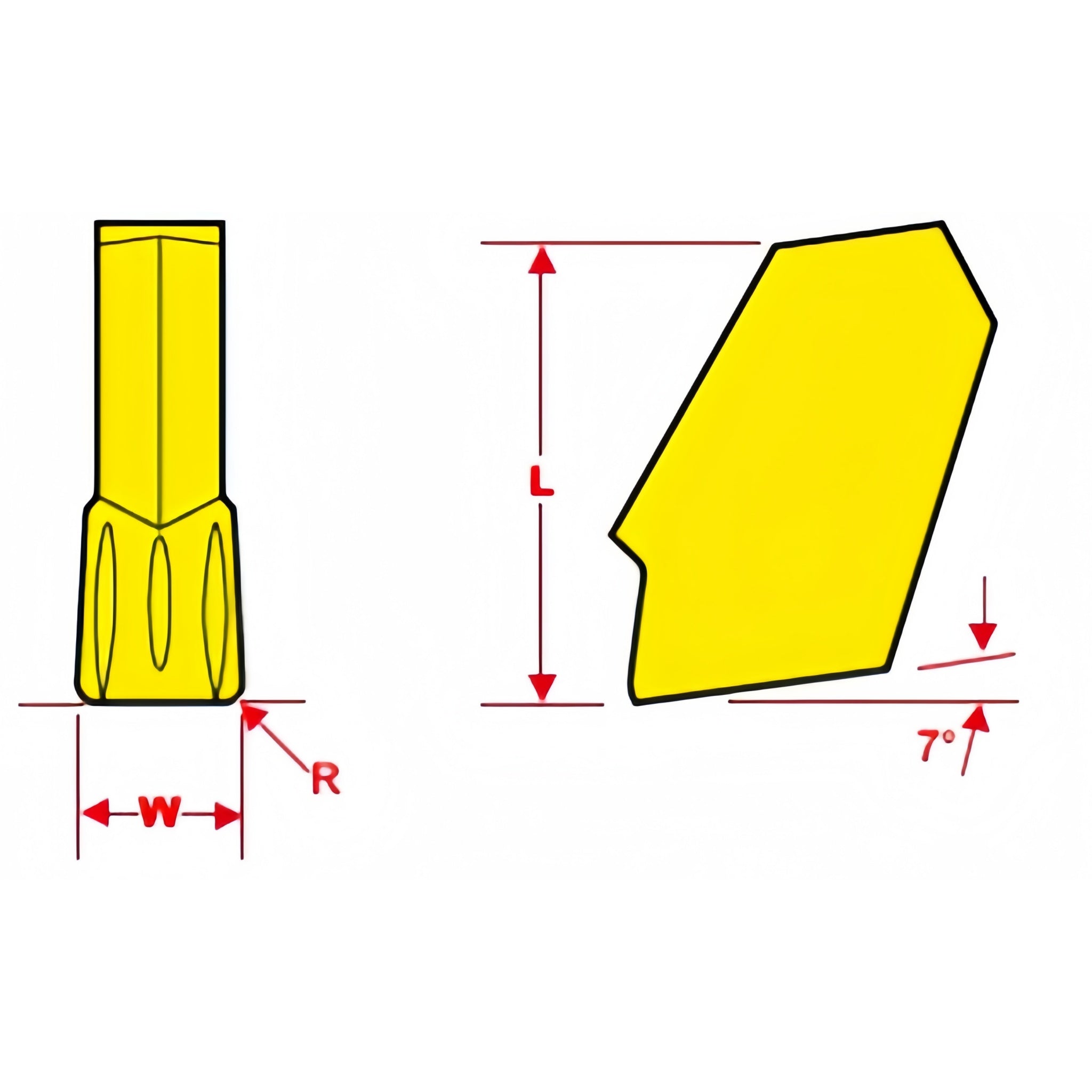

Technical dimension diagram of a yellow metal tool bit or cutting head, showing front and side views with labeled dimensions L, W, R, and a 7-degree angle on a white background.
A gold carbide insert for lathe tool in a gold three-prong setting, centered on a solid white background with a soft reflection below.
Technical dimension diagram of a yellow metal tool bit or cutting head, showing front and side views with labeled dimensions L, W, R, and a 7-degree angle on a white background.

GTN TiN Coated Carbide Inserts

SKU: 060-013-20002
Price
$7.26
Size:
GTN3

Product variant with selected options does not exist!
In stock and ready for shipping

Product Informations:

These inserts are the direct replacement inserts designed for the SLTBN Parting-Off Tool Holders & NCIH Blades, Engineered for precision, wear resistance, and clean chip evacuation, these neutral-hand inserts deliver smooth, accurate cuts across steel, alloy, cast iron, and non-ferrous materials.

Featuring a durable Titanium Nitride (TiN) coating, they offer reduced friction, superior heat dissipation, and extended tool life during continuous machining operations.

Browse our full range of parting & grooving tools

 Item Code
 Type
 W
 R
 Edge Type
 060-013-20001
 GTN2
 2.2mm
 0.15mm
 Neutral
 060-013-20002
 GTN3
 3.1mm
 0.2mm
 Neutral
