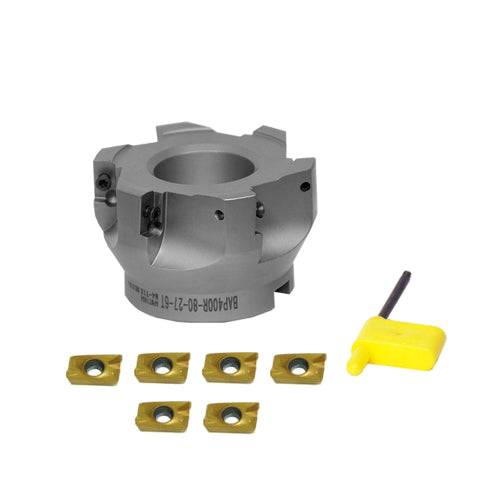

BAP400R 80mm Indexable Carbide Shell Mill

Achieve smooth surface finishes and fast stock removal with the BAP400R 80mm Indexable Carbide Shell Mill. Engineered with a 90° shoulder profile, this 6-flute face mill cutter is built for heavy-duty square shoulder milling, facing, profiling, and slotting across steel, stainless, alloy, and cast iron.

Designed with a standard 27mm mounting bore, it mounts securely onto standard shell mill arbors. Utilizing APMT1604 / APKT1604 inserts, it delivers high cutting efficiency with easy insert indexing for minimal tooling downtime.

Specifications:

• Cutting Angle: 90° for face and square shoulder milling
• Type: BAP400R-80-27-6T
• Cutting Diameter: 80mm
• Bore: 27mm ( please select 27mm shell mill arbor )
• Height: 50mm
• Teeth: 6 ( require 6 inserts )

HOW TO CHOOSE INSERTS:

• For cutting steel, stainless steel & cast iron, please select APMT 1604 PDER TiN Coated Carbide Insert.
• For cutting non-ferrous metal, please select APKT 1604 PDFT Carbide Insert Gound & Polished.
