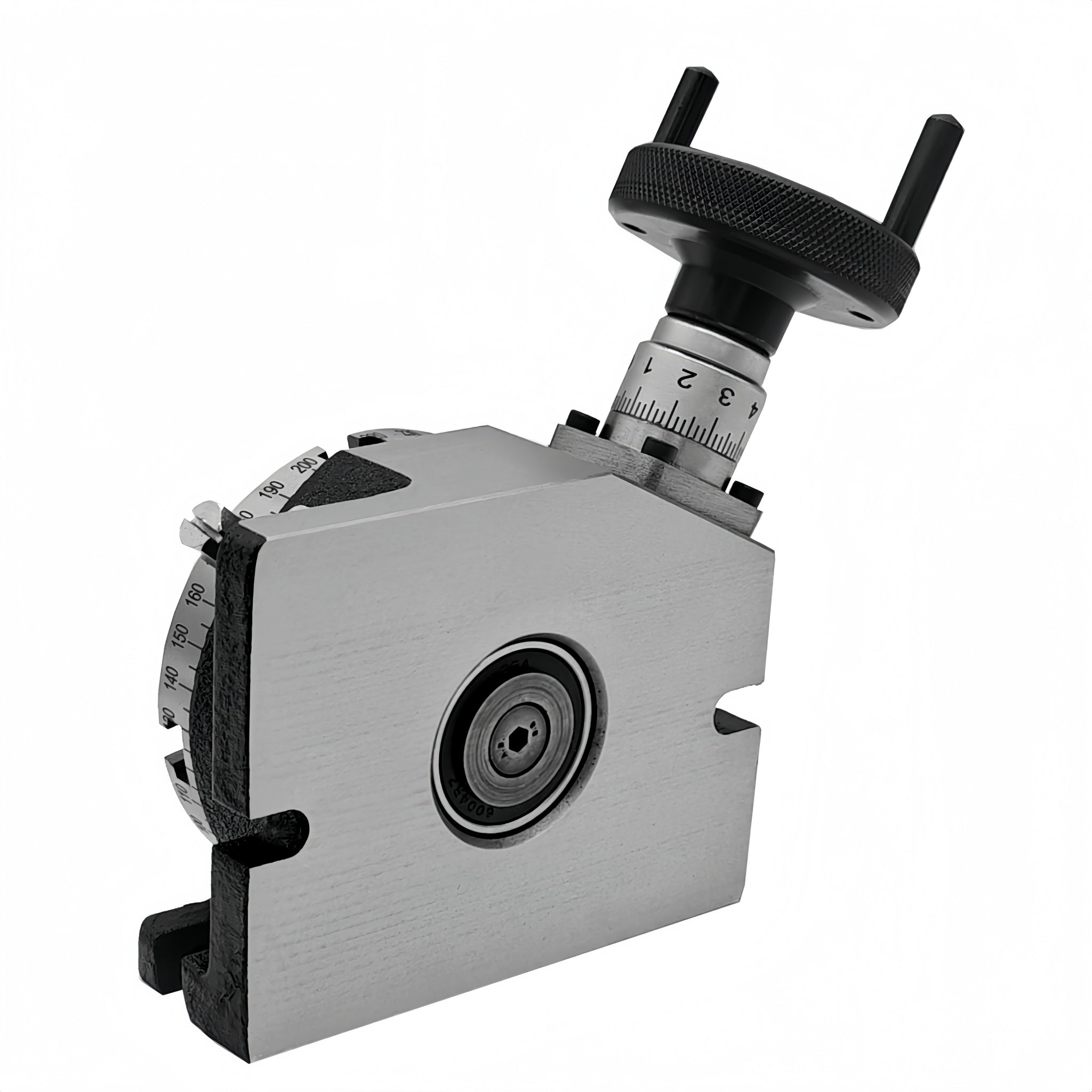

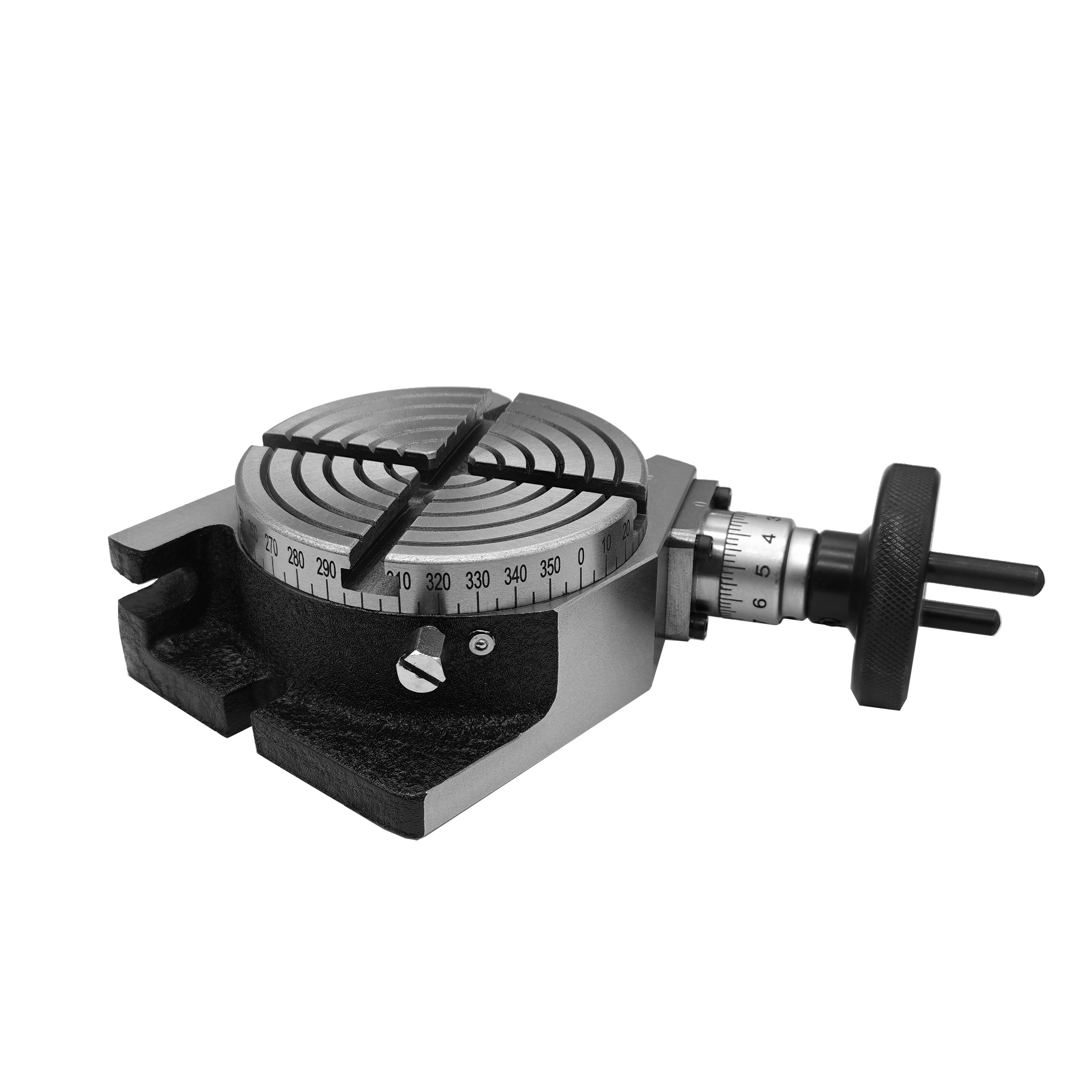

4" (100mm) Rotary Table with M14 Backplate

This compact rotary table / indexing table is designed for accurate work positioning in metalworking applications. It allows the operator to drill, mill, or cut workpieces at precise angular intervals around a fixed axis, making it ideal for tasks such as bolt circles, gear cutting, slotting, and indexing operations.

Its compact and low-profile design makes it perfect for small milling machines, bench lathes, and drill presses fitted with a compound table. The table can be mounted horizontally or vertically, providing excellent flexibility for a wide range of machining setups.

The 36:1 worm gear ratio ensures smooth and precise rotation, while the graduated hand wheel allows accurate control when indexing or positioning the workpiece.

A back plate and clamping kit are included, allowing quick and secure mounting of workpieces or small chucks.

Features

• 36:1 precision worm gear ratio for accurate indexing
• 360° table graduations for precise positioning
• Handwheel with 10-minute graduations for fine adjustment
• Zero-set handwheel for convenient reference setting
• Compact design ideal for small mills, lathes, and drill presses
• Can be mounted horizontally or vertically for versatile use

• Compatible with 3-jaw chucks, 4-jaw independent chucks, and ER collet adaptors (available separately)

Rotary Table Specifications

• Size: 4" / 100mm
• Gear Ratio: 36:1
• Table Graduation: 0–360°
• Handwheel Graduation: 10 minutes
• Height: 55mm
• T-Slot Size: 8mm
• Clamping Kit Size: M6

• Through Bore: None

Back Plate Specification:

• Size: 80mm
• Mounting Thread: M14x1.0mm


Clamping Kit 10pcs Set Inclusions:

• M6 Stud x 2
• M6 T-Nut x 2
• M6 Flange Nut x 2
• Step Clamps x 2
• Step Blocks x 2
